#5 Heavy-Duty Hydraulic Rebar Cutter – Parts Guide
DC-16W-parts-guide-2022.indd

Contents hide

1 DC-16W Heavy-Duty Rebar Cutter

2 DC-16W – Maintenance Parts Available

3 Documents / Resources

3.1 References

4 Related Posts

DC-16W Heavy-Duty Rebar Cutter

POWER
115V | 10A
MAXIMUM CAPACITY
#5 | 5/8” | 16mm
Grade 60 Rebar
CUTTING PRESSURE
15 Tons
CUTTING SPEED
2.5 Seconds

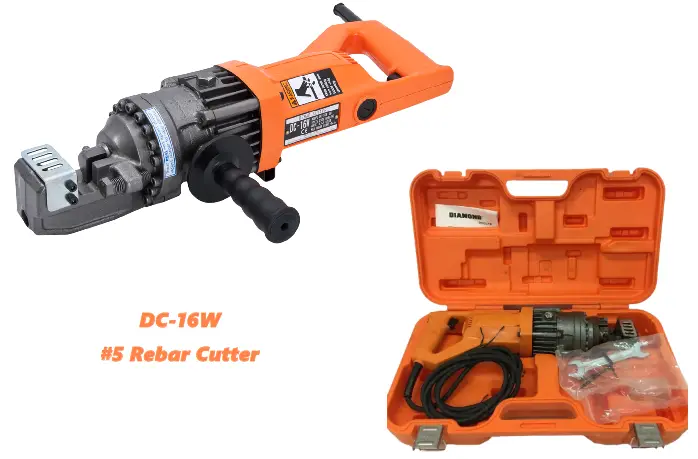

The DC-16W portable, heavy-duty rebar cutter will safely, efficiently, and cleanly cut rebar up to #5 (5/8”) diameter grade 60. This self-contained electric/hydraulic unit will also cut other items like chain, bolts and rod, but is specifically designed for rebar. The DC-16W cutter is designed for effortless vertical and horizontal cutting applications.
This tool is a cold-cutting shear, unlike saws with abrasive blades and cutting torches. There are no sparks, flame, or trailing hoses. A safety relief valve for retracting the piston and a cutting guard are standard features, along with a removable side handle.
The DC-16W ships in a molded carrying case, and includes a supply of hydraulic oil and a tool kit for servicing the tool.

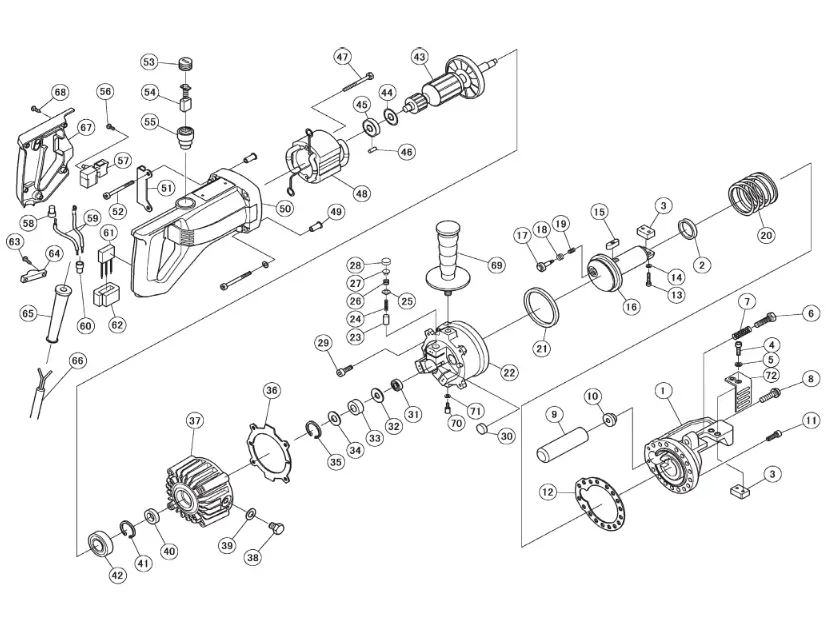

DC-16W #5 (16mm) Rebar Cutter – Parts View
BN Products-USA™ Customer Service: (800) 992-3833

DC-16W – Maintenance Parts Available

Product Number	Notes
RB-16X	Cutting Blocks – Set of two for DC-16W
TU16K	Tune-Up Kit – DC-16W Rebar Cutter
BN7356	Hydraulic Oil (1 Quart) for Hydraulic Rebar Cutters
RBK-16W	Rebuilt Parts Kit – DC-16W Rebar Cutter

#	Part Number	Description	Qty	#	Part Number	Description	Qty
1	1C16012	HOUSING	1	38	7B10015	OIL PLUG M10X15	1
2	1C16021	SEAL PACKING SKY30	1	39	7WF10	SEAL WASHER	1
3	1C1610	CUTTER BLOCK NO. 0	2	40	7SC15257	OIL SEAL	1
4	7C8205022	CAP BOLT M5X22	2	41	7SRH026	SNAP RING H26	1
S	7SW005	SPRING WASHER MS	2	42	76002W	BALL BEARING 6002VV	1
6	7610040T11	STOPPER BOLT M10X40	1	43	7HTK360274C6	ARMATURE WITH CAM	1
7	1C1603	LOCK SPRING	1	44	7HTK956387B	DUST SEAL (A)	1
8	1C1357	AIR BAG SET BOLT	1	45	7608W	BALL BEARING 608VV	1
9	1C1616	AIR BAG	1	46	7HTK946362B	BEARING LOCK	1
10	1C1620	AIR BAG NUT	1	47	7NT05060	TAPPING SCREW D5X60	2
11	7C606020	CAP BOLT M6x20	15	48	7HTK981610CB	STATOR COIL	1
12	1C16143	CYLINDER PACKING	1	49	7HTK3054726	SLEEVE	4
13	70305015	CAP BOLT M5x15	2	50	7HTK305474B	MOTOR HOUSING	1
14	7SW005	WASHER M5	2	51	7HTK3054768	FOOT	1
15	7K0707024R2H	PISTON KEY	1	52	7CB05080	CAP BOLT M5X80	4
16	1C3092000	PISTON	1	53	7HTK9617818	BRUSH CAP	2
17	1C1319	RETURN VALVE	1	54	7HTK999043B	CARBON BRUSH SET	1
18	1CL0143	RETURN VALVE SPRING	1	55	7HTK981586B	BRUSH HOLDER	2
19	1C1323	VALVE END SPRING	1	56	7WB035006	SWITCH BOLT M3.5X6	4
20	1C16052	RETURN SPRING	1	57	7HTK9577478	SWITCH	1
21	1C1604	SEAL PACKING	1	58	7HTK9591416	CONNECTOR 50092	1
22	ICW00011	CYLINDER	1	59	7HTK971825B	LEAD WIRE	1
23	1C1327	RAM	3	60	7HTK9591408	CONNECTOR 50091	1
24	1C1330	RAM RETURN SPRING	3	61	7HTK3082836	CONDENSER	1
25	1C13281	DELIVERY VALVE	3	62	7HTK930153B	SUPPORT (B)	1
26	1C1331	DELIVERY VALVE SPRING	3	63	7FNSO4016	TAPPING SCREW D4X16	2
27	1C13352	SPRING GUIDE	3	64	7HTK960266B	CORD CLIP	1
28	1C13292	PUMP HEAD SEAL	3	65	7HTK938051B	CORD ARMER	1
29	7CB06020	CAP BOLT M6X20	2	66	4V0001V	CORD SET	1
30	3P1044	MAGNET FILTER	2	67	7HTK0020658	SWITCH COVER	1
31	7698	BALL BEARING 698	1	68	7NT04020	TAPPING SCREW D4X20	S
32	1C1325	BEARING GUIDE	1	69	1C1627	SIDE HANDLE	1
33	712NQ2410A	NEEDLE BEARING	1	70	1C4160601	RELEASE VALVE	1
34	1C1325	BEARING GUIDE	1	71	70R54		1
35	75RH027	SNAP RING H27	1	72	1C4199700	CUTTER GUARD	1
36	1C1615A	PUMP CASE PACKING	1
37	7HTK305471B	PUMP CASE	1
