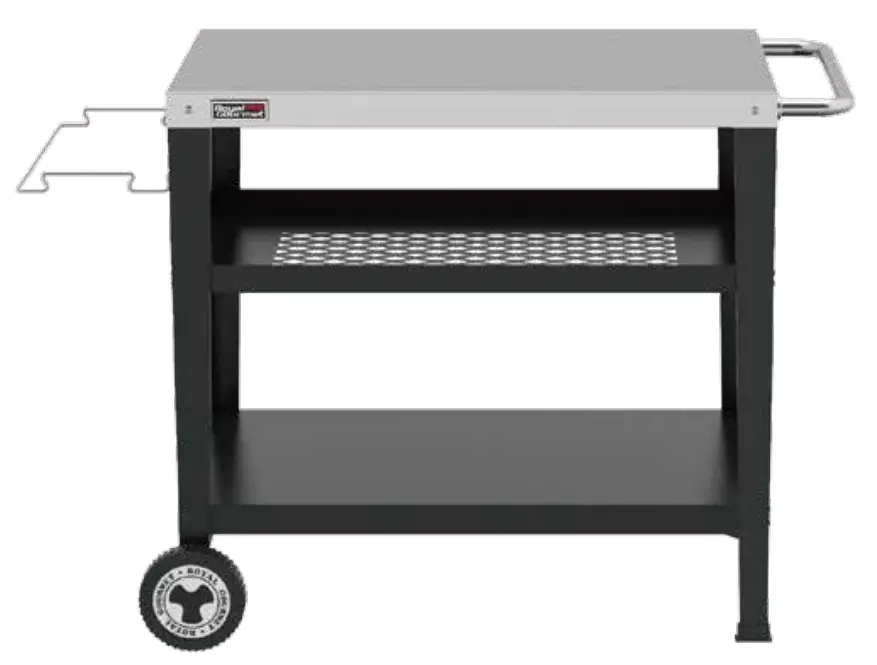

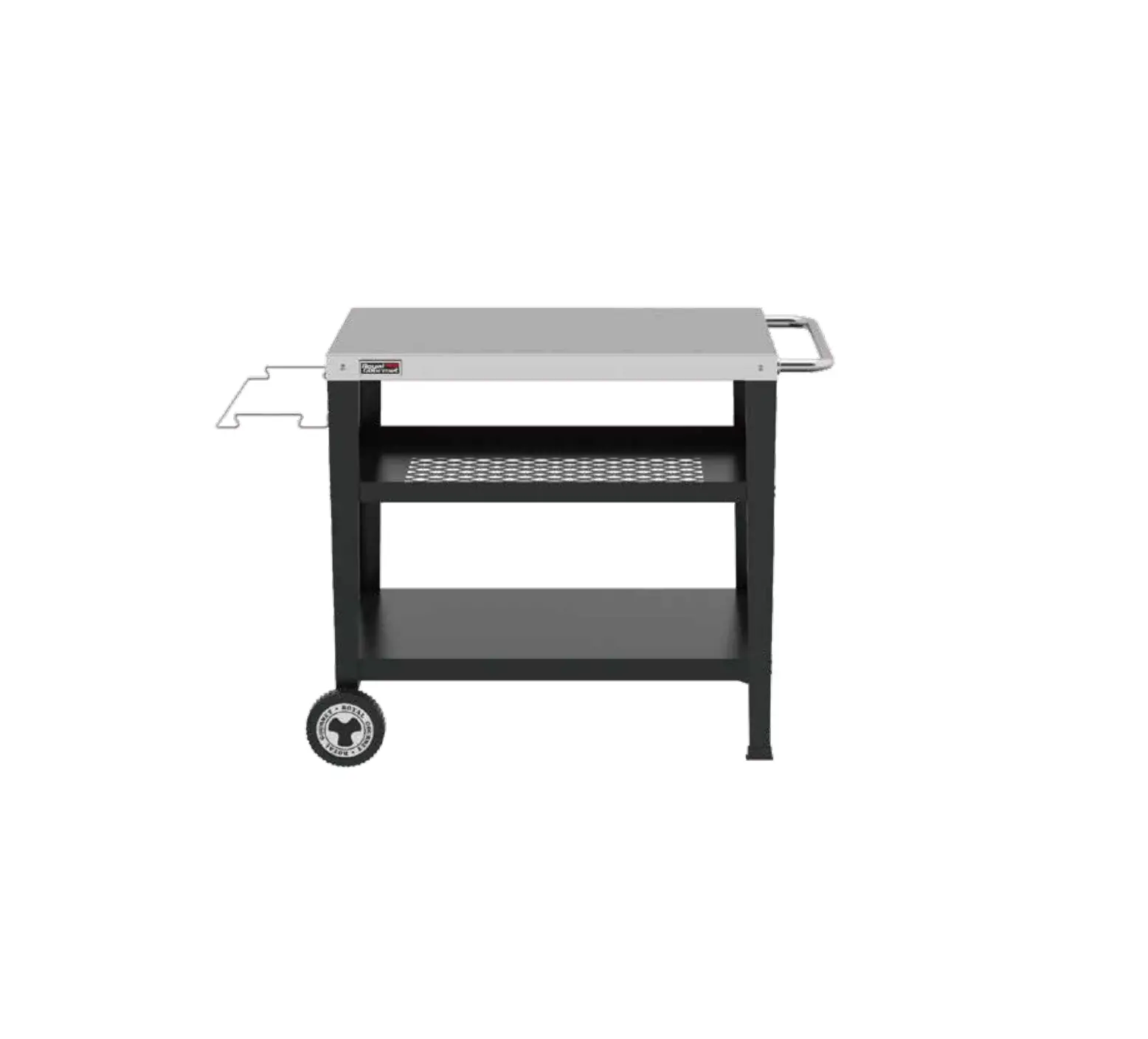

Royal Gourmet PC3404S 3 Tier Dinning Cart with Trash Bag Holder
3-TIER DINING CART WITH TRASH BAG HOLDER
CARRITO PORTADOR DE COCINA CON 3 NIVELES Y MARCO PARA BOLSAS DE BASURA CHARIOT A MANGER A 3 NIVEAUX AVEC PORTE-SAC POUBELLE
FOR YOUR SAFETY!
Use outdoors only!
Read the instructions before
assembling and using the appliance.
CONTACT US FIRST!
If you have any questions that are
not addressed, please contact us first.

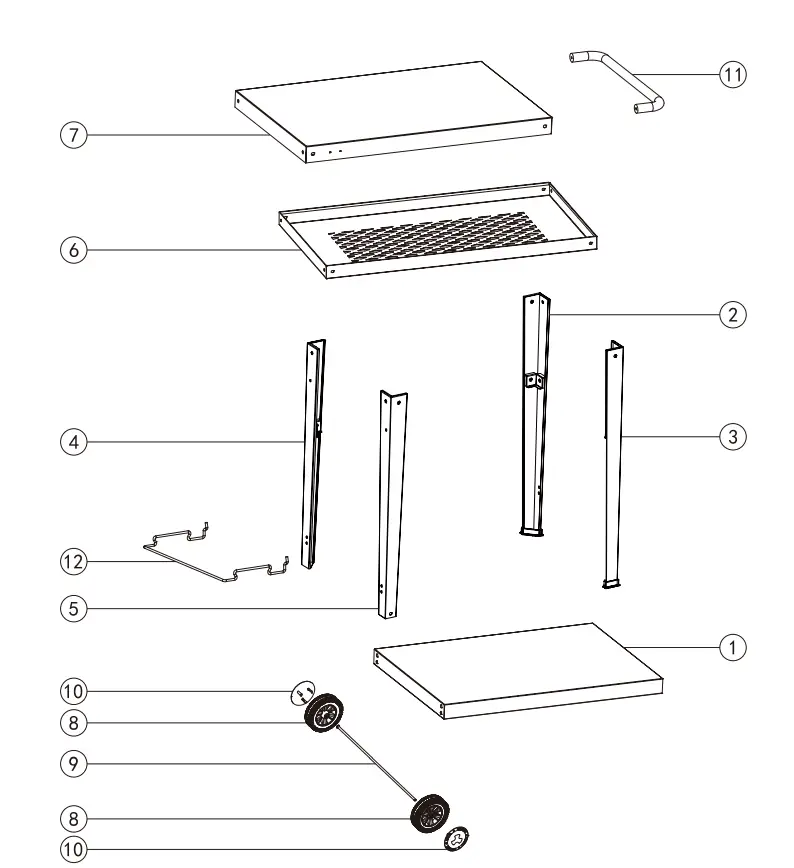

Parts Diagram

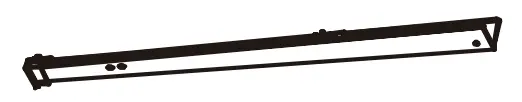

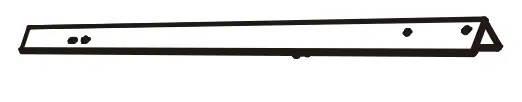

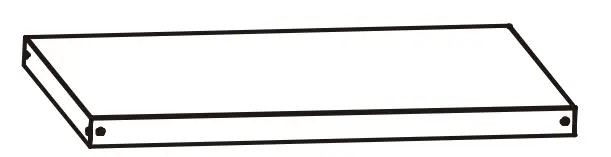

Parts List
| No. | # | QYT | Description | Image |

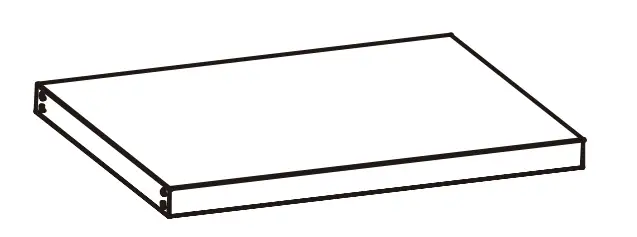

| 1 | TNJ6DB | 1 | Bottom shelf |  |

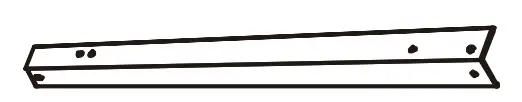

| 2 | TNJ6JGRBH | 1 | Right back leg |  |
| 3 | TNJ6JGRFH | 1 | Right front leg |  |
| 4 | TNJ6JGLBH | 1 | Left back leg |  |
| 5 | TNJ6JGLFH | 1 | Left front leg |  |

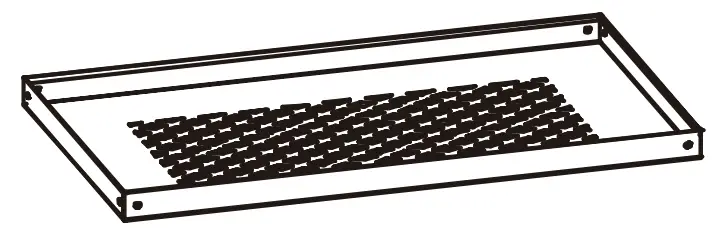

| 6 | TNJ6ZGB | 1 | Basket |  |
| 7 | TM1ZMB02-SS4 | 1 | Table top |  |
| 8 | 05-SLL-04 | 2 | Wheel |  |

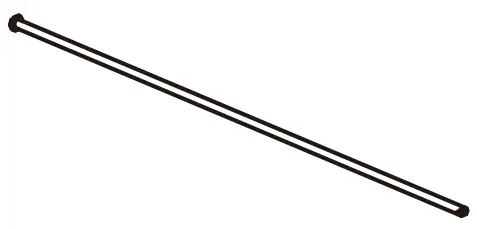

| 9 | 06-XZL-1-15 -DY | 1 | Wheel axle |  |
| 10 | 05-LGL-04-WH | 2 | Rim cover |  |

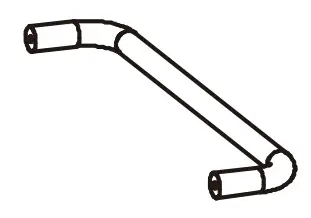

| 11 | 04-GBS-2-29- 456-PG | 1 | Handle |  |

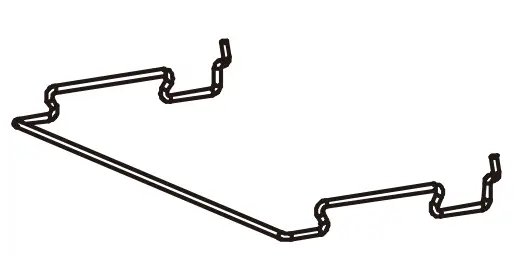

| 12 | 03-WZJ-T-01- DO1 | 1 | Trash Bag Holder |  |

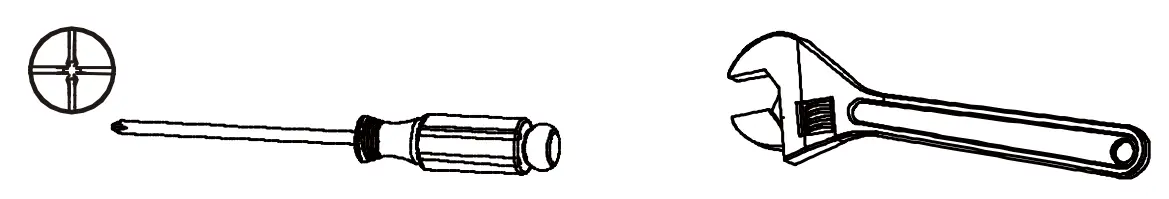

TOOLS REQUIRED
| Description | Image | |
| Phillips screwdriver | Wrench |  |

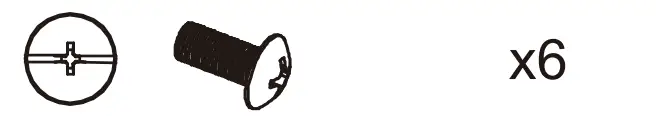

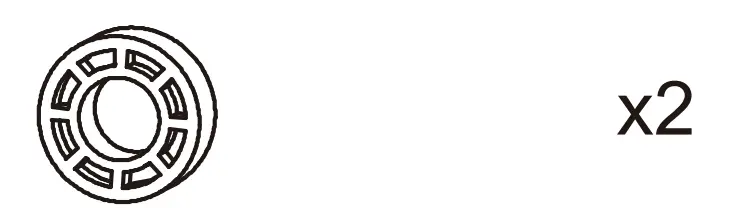

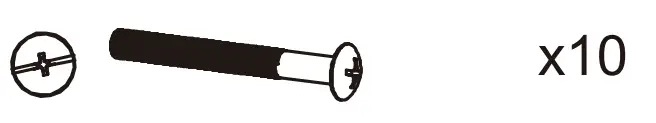

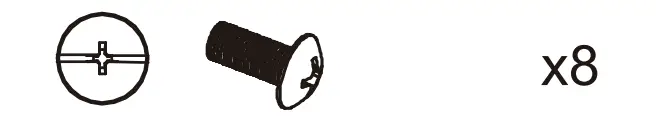

Hardware List
| No. | # | Image | No. | # | Image |

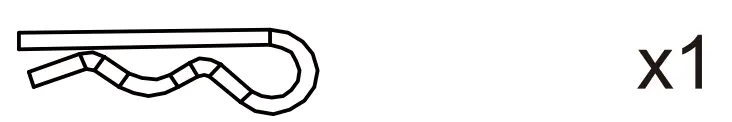

| A | M6x30 |  | D | Split pin |  |
| B | M6x12 |  | E | Handle base |  |

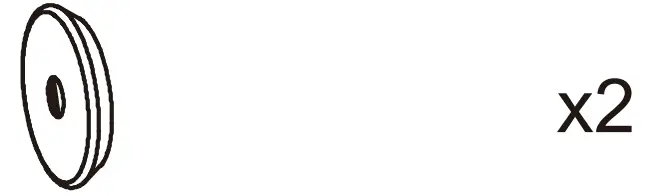

| C | M6x12 |  | F | Washer |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not
attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed: Phillips screwdriver and wrench (not included)
- Approximate assembly time: 15 minutes
- Note:
- The right and left sides of the grill are designed as if you are facing the front of the grill.
- Model shown for illustration purpose only, specific please in kind prevail.
CALIFORNIA PROPOSITION 65 WARNING
This product contains Nickel (Metallic) known to the State of California to cause cancer.
For more information, go to: www.P65Wamings.ca.govThis product contains Nickel (Metallic) known to the State of California to cause cancer.
For more information, go to: www.P65Wamings.ca.gov

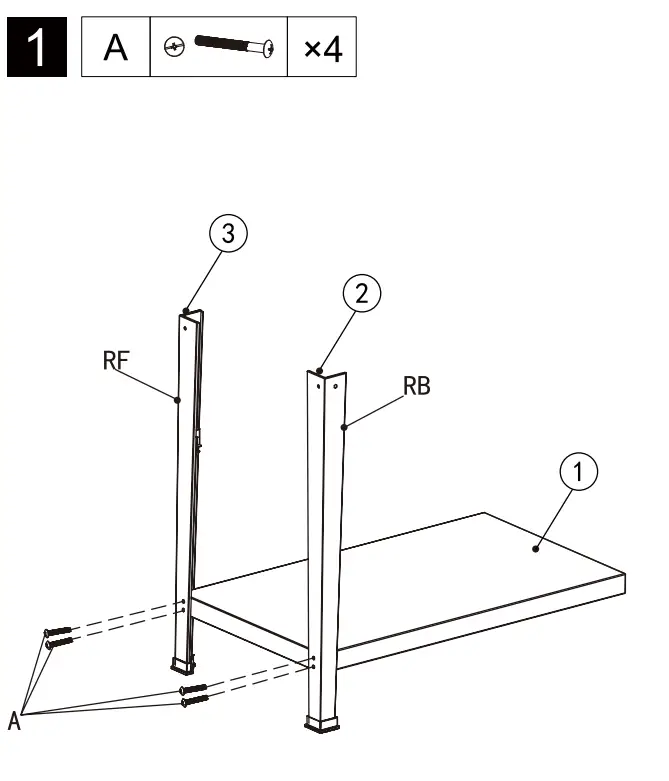

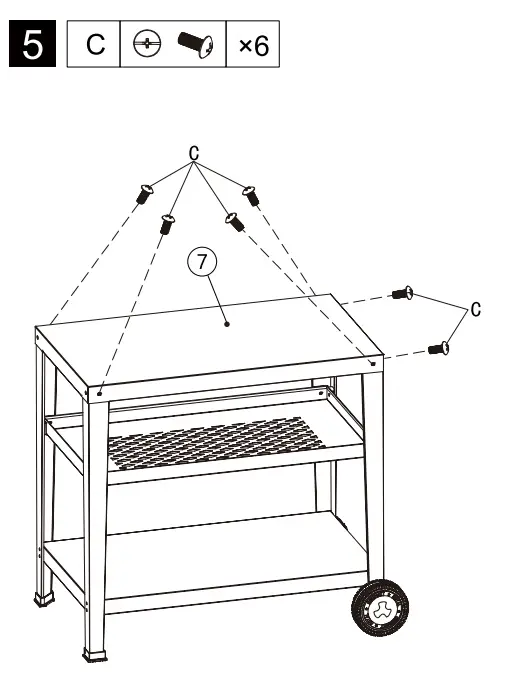

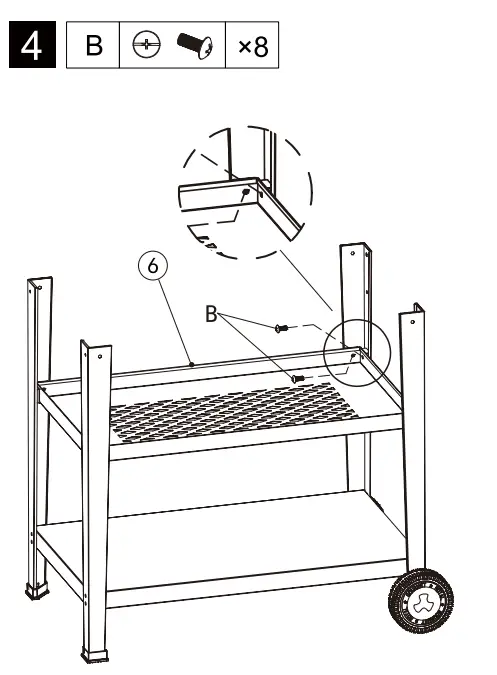

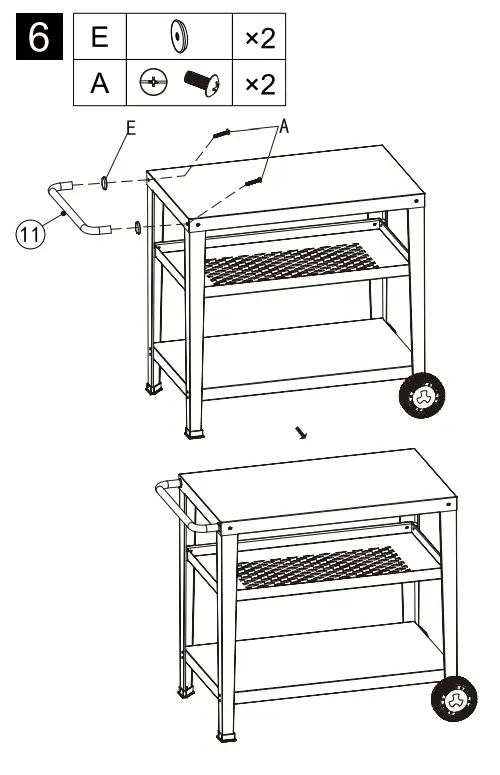

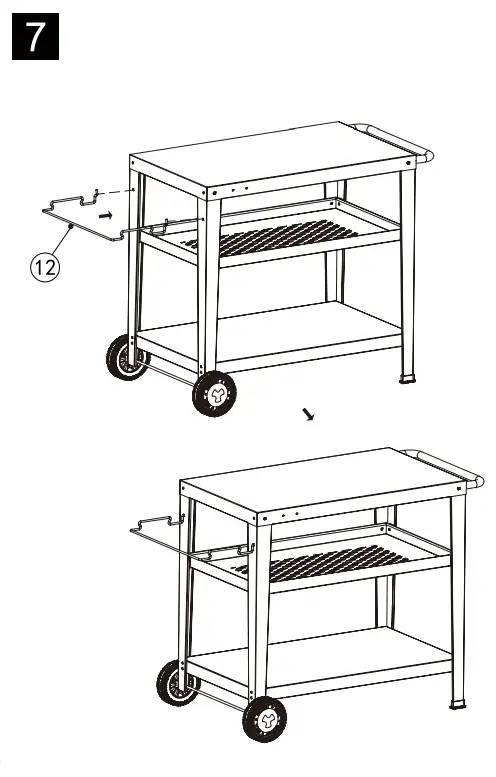

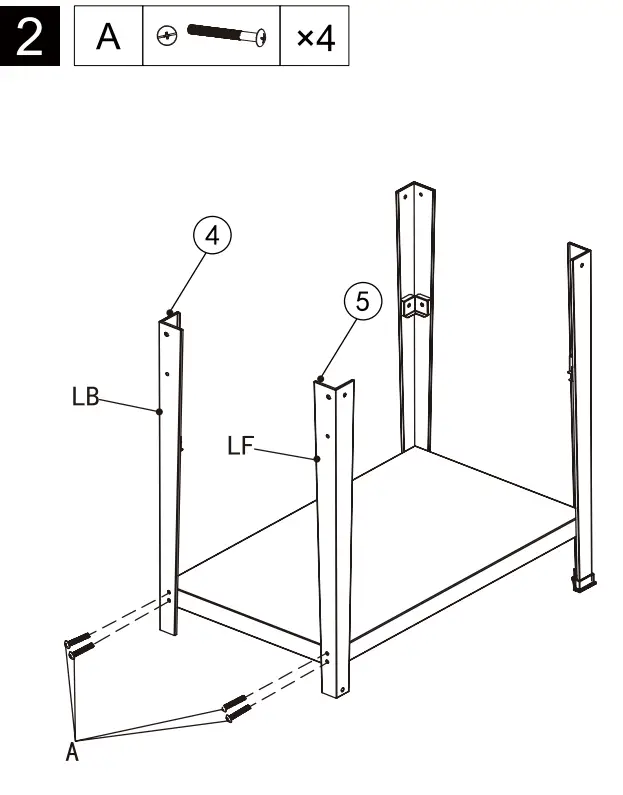

Assembly
Thank You For Choosing Us.
Customer Service
1-800-618-6798
[email protected]
We Can Help!
1-800-618-6798
Monday to Friday ( 8:30 am – 5:00 pm EST J
[email protected]
