H-5007
3-SHELF UTILITY CART
1-800-295-5510 – uline.com
TOOL NEEDED

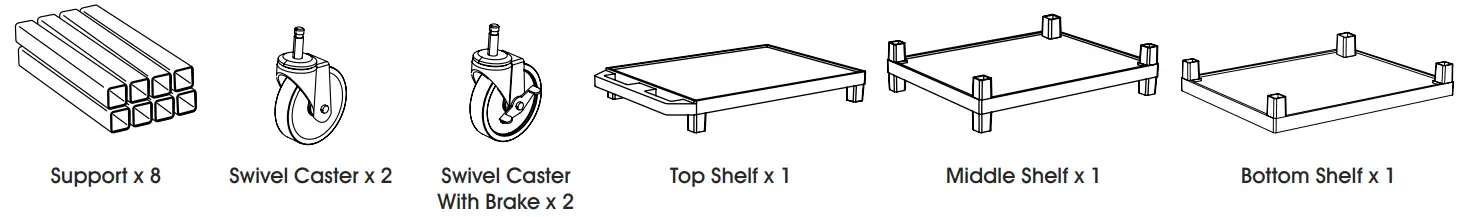

PARTS
ASSEMBLY
 |  |
 |  |
 |
- Tap supports into the bottom of the top shelf using a rubber mallet. (See Figure 1)

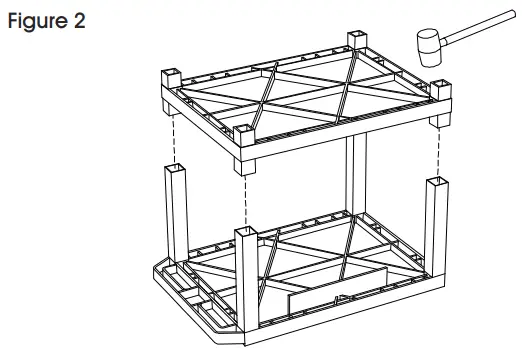

- Tap the top of the middle shelf into the supports using a rubber mallet. (See Figure 2)

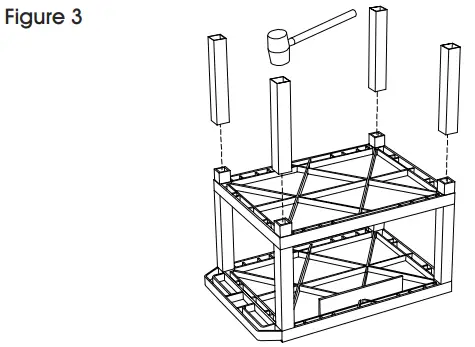

- Tap supports into the bottom of the middle shelf using a rubber mallet. (See Figure 3)

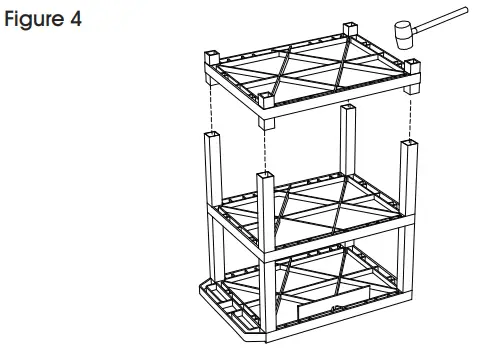

- Tap the top of the bottom shelf into the supports using a rubber mallet. (See Figure 4)

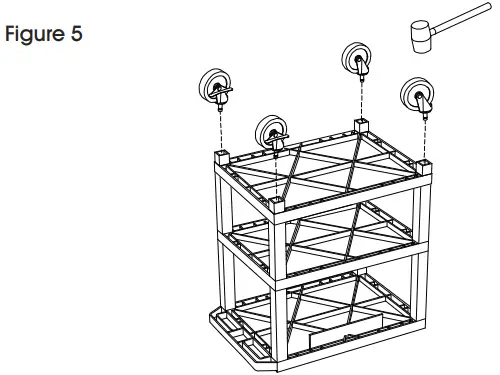

- Tap the casters into the underside of the bottom shelf using a rubber mallet. Put two swivel castors at the front of the cart and two swivels with brake casters at the rear (handle side). (See Figure 5)
1-800-295-5510
uline.com
0421 IH-5007
