Monster 2mnca0116b0a2 Bluetooth Fm Transmitter Owner's Manual

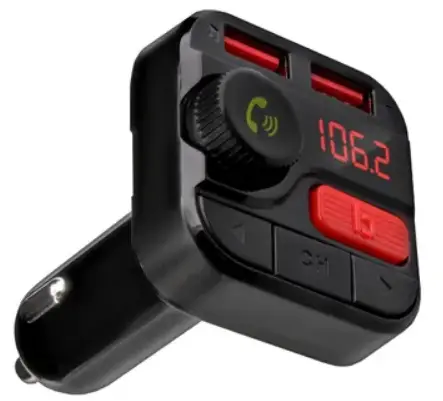

MONSTER 2MNCA0116B0A2 Bluetooth FM Transmitter

Safety Instructions

• Please read this manual carefully before using
• Keep these instructions
• Do not disassemble
• Do not expose directly to sunlight or open flame
• Pay attention to the road and do not operate this product while driving.

Introduction

Features

• Input 12-24V
• FM transmitter: 88.1-1079 MHz frequency range
• Bluetooth hands-free calling
• Stream music from a smartphone to car system via FM transmission
• USB 1: 5V/2.4A with intelligent input current management
• Type-C: PD 24W
• Support USB flash drive playing
• Support TF card playing
• Supports playing from SD cards
• Car battery monitor

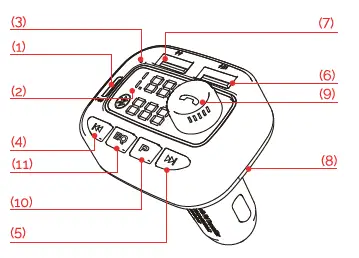

OVERVIEW

1. Type-C charging port
2. LED display
3. Microphone
4. Previous song
5. Next song
6. USB2 fash drive reading & playing port
7. USB1 charging port
8. SD card slot
9. Multifunction knob button:
10. Music play modes Switch button change frequency: volume */ answer& hang-up calls
11. EQ

Get it Ready for Playing

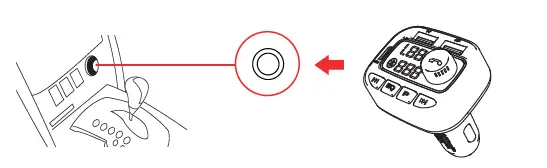

1. Plug 2MNCA0116B0A2 into your car cigarette lighter socket.

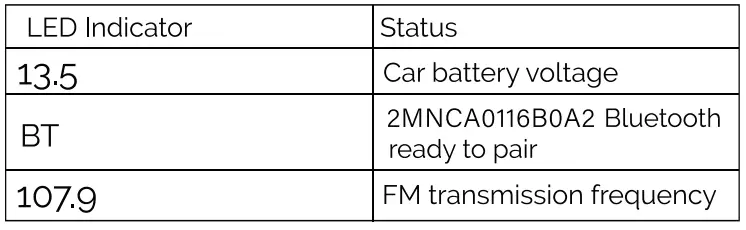

2. LED display light will turn on and show 13.5- bt-107.9

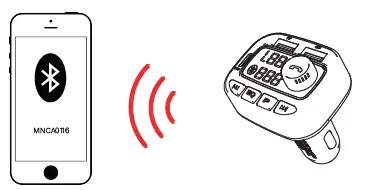

3. Connecting Bluetooth: When the LED display reads bt, it is in pairing mode, and the voice prompt will say “Waiting for connection.”On your smartphone, enable the Bluetooth function, search for available devices, select “MNCA016” and pair with it. Once connected, listen for voice prompt “Bluetooth connection success.” You are now paired.

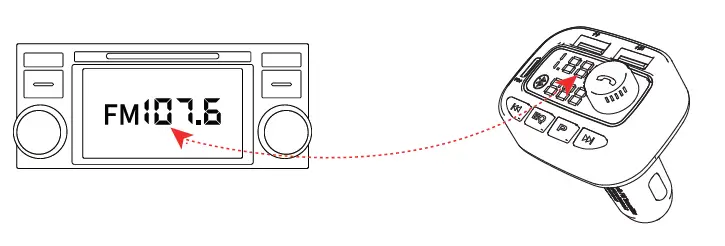

4. Turn on your car’s FM radio and find an empty (only static) channel. Then, adjust the frequency on 2MNCA0116BOA2 to match the frequency of your car radio.
5. Adjusting FM transmitter frequency: Press and hold multifunction knob button until frequency display starts blinking: rotate dial to adjust FM transmitting frequency to match car radio frequency.

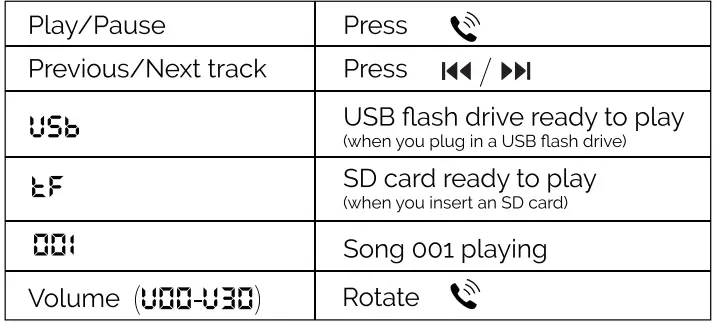

Play Music

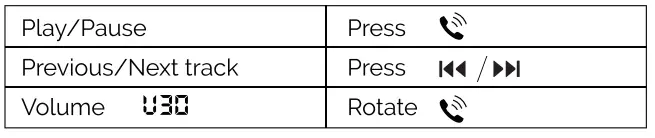

Playing music from your phone

After steps 1-5. you can start playing audio using your smartphone. The music will stream via the Bluetooth A2DP function: your phone’s FM transmission will travel to your car radio and through your car’s speakers.

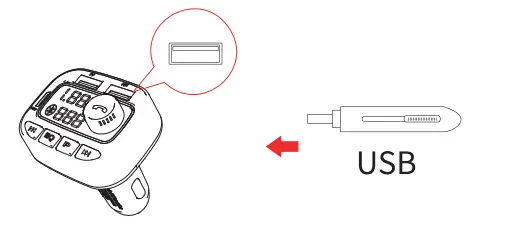

Playing music from a USB flash drive

• Plug USB flash drive into the USB port on the left side with start playing automatically. +/” icon. 2MNCA0116BOA2 will start playing automatically.

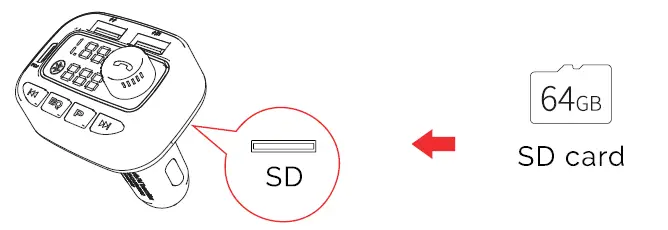

Play music from SD card

Insert SD card into SD card slot. 2MNCAO16BOA2]will recognize it by displaying eF and start playing automatically. Follow the same directions as a USB flash drive playing mode.

How to switch playing modes

• Press P and hold until LED displays BT or TF (or USB), playing mode will switch.

EQ Switch Quick Button

• The EQ quick button can be used to switch sound quality from the standard (Eqo) to Bass (Eqı) with a short press. Press it again to switch back to standard (Eqo).

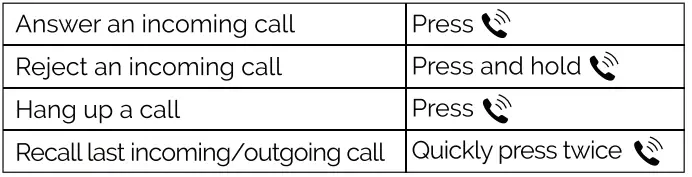

Hands-Free Call

• After you set up playing. you can also use the hands-free function.

Under music playing status (BT/SD/USB flash drive), if there is a call coming in, it will switch to call mode automatically. After hanging up it will switch back to playing mode automatically.

Charge Your Device

2MNCA0116BOA2 Bluetooth FM transmitter has one Type-C port and two USB ports, with a total max 36A output in intelligent current sharing mode:

• Type-C” PD 24W
• USB1: 5V/2.4A charging port
• USB 2:5V/1A Max & USB flash drive port:

This port is used for changing low-current devices. Mainly it is used for USB lash drive playing.

Specifications

• DC input: 12V-24V
• Output: Type C PD3.0 20W for iPhone
• Bluetooth: V5.0
• Bluetooth connect distance: 10m
• Audio format: MP3. WMA, FLAC, WAV
• FM transmitting distance: 22m
• USB capacity support: s64Gb
• Working temperature range: -20’C to 40’C
• Storage temperature range: -40’C to 75C

FCC STATEMENT

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits] are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, this can be determined by turning the equipment off and on.] The user Is encouraged to try to correct the interference by one more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

Radiation Exposure Statement

• This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
• This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.
