KUFATEC Side Assist incl. Parking Assistant
Assembly Instructions

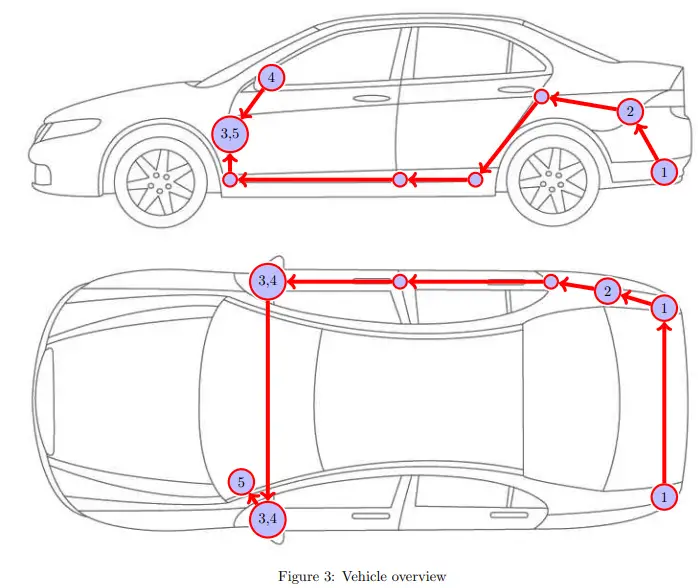

The following illustration shows the cable routing as well as the position of the individual components
- 1 Sensor
- 2 Connection ground
- 3 Door coupling point
- 4 Warning light
- 5 Connection power supply / CAN bus
Please be aware that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
