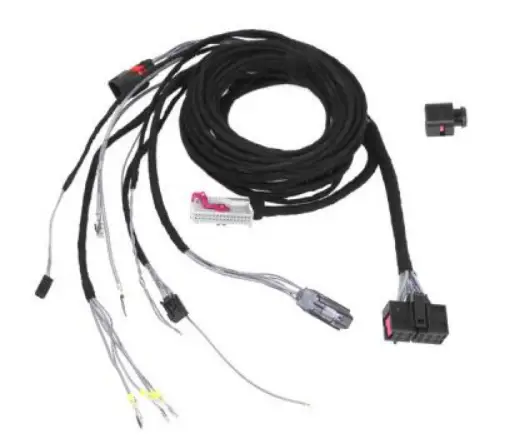

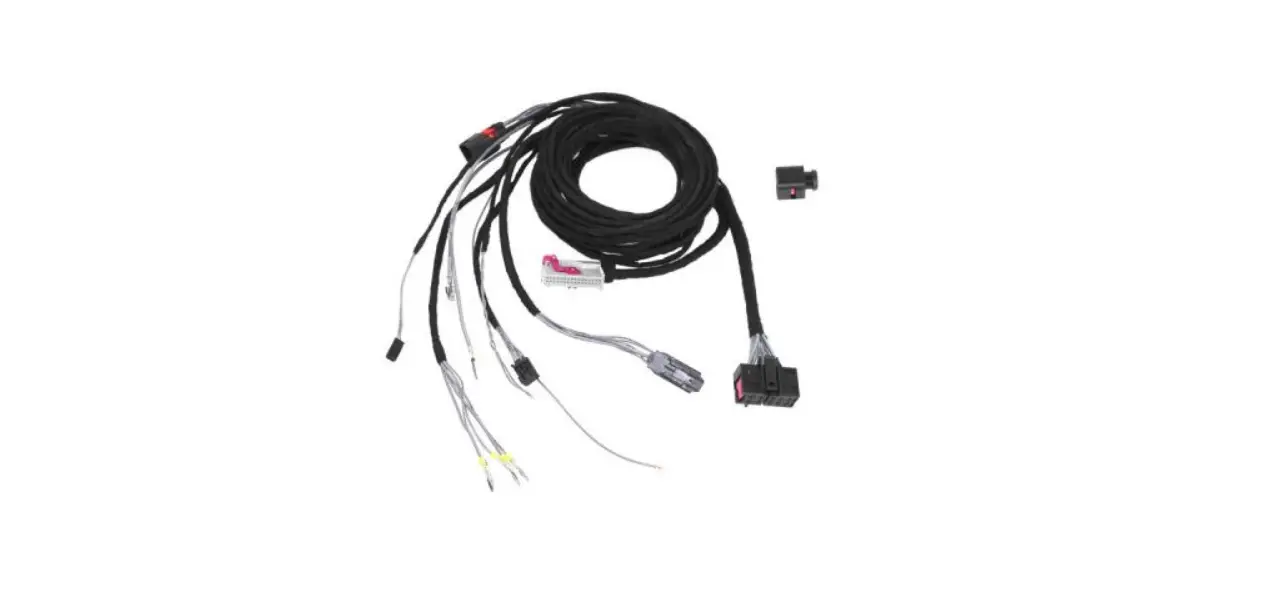

KUFATEC Complete Set Electrical Tailgate
Assembly Instructions
The following illustration shows the cable routing as well as the position of the individual components.
- 1 Tailgate button
- 2 Closing aid, tailgate lock
- 3 Warning buzzer
- 4 Control unit/ground connection
- 5 Electronic tailgate damper
- 6 Fuse box
- 7 CAN gateway
Please be aware that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
