Installation Instructions
Complete Set Active Parking Assistant Parktronic
v1.0 (02.08.2022)
Assembly Instructions

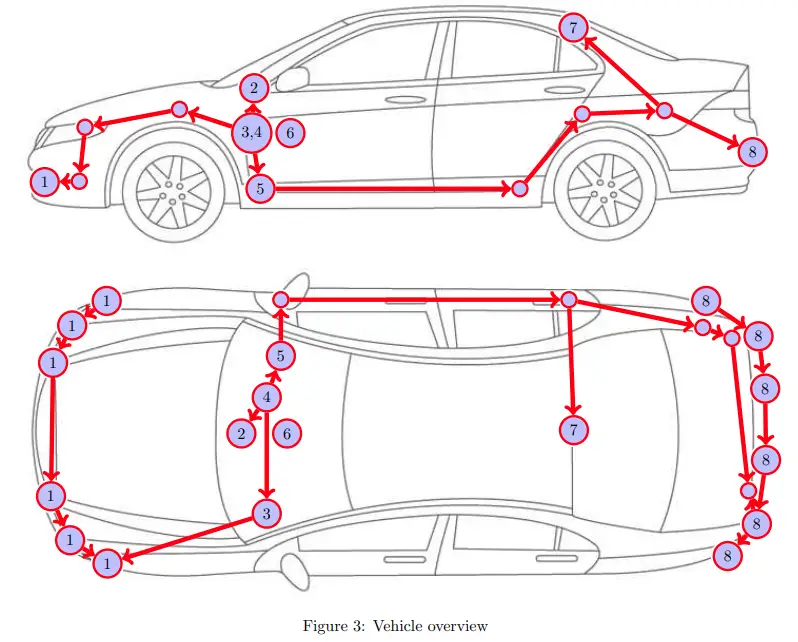

The following illustration shows the cable routing as well as the position of the individual components.
- Front sensors
- Warning light 1
- CAN connection
- Control unit
- Fuse box/ground connection
- Button panel
- Warning light 2
- Rear sensors
Please be aware that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
