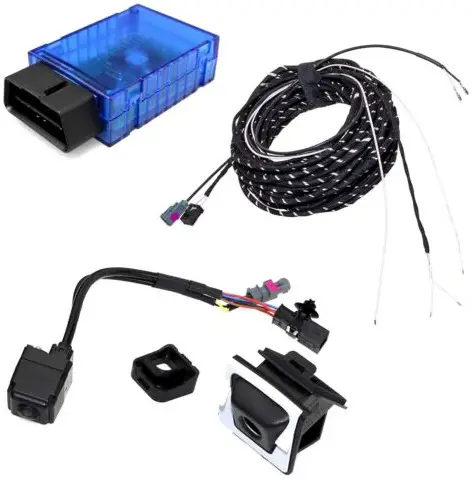

KUFATEC Complete Set Rear View Camera Instruction Manual
Assembly Instructions

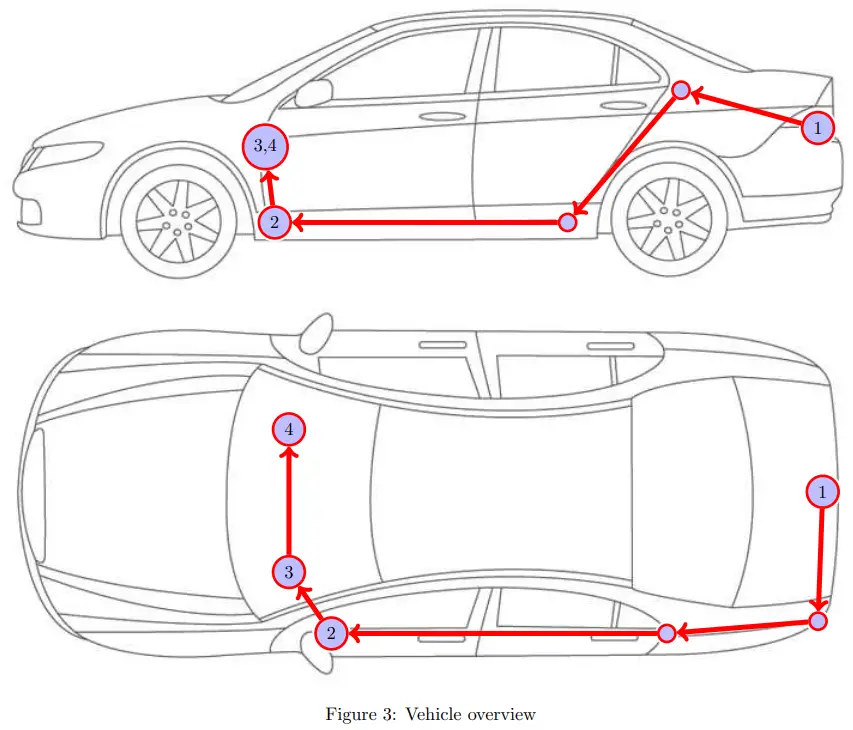

The following illustration shows the cable routing as well as the position of the individual components.
- 1 Rear view camera
- 2 Ground pin
- 3 Fuse box
- 4 CAN gateway
Please be aware that this overview is only for illustration purposes.
Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing,
please refer to the relevant sections of the following manual.
