ZENEC ZE-RVC80MT MKII Rear View Camera
MOUNTING INSTRUCTIONS

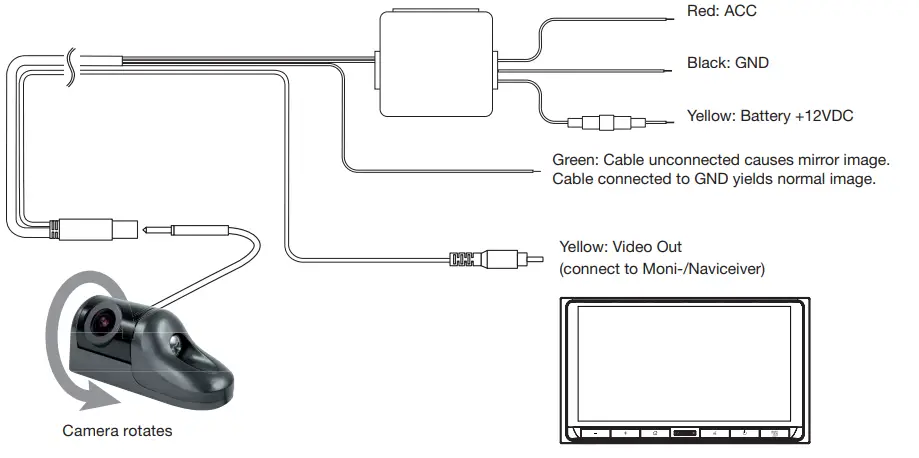

Due to its compact size the ZE-RVC80MT MKII rear view camera is suitable to be installed at the upper edge of the license plate or below the rear bumper, depending on car model or customer preferences. The connection cable of the camera can often be routed alongside the license plate illumination wires – allowing for a quick and trouble free installation process. The high quality CMOS camera sensor also offers an extended temperature operating range, a waterproof lens assembly (IP68) and housing, made of durable die cast aluminum.
CAUTION:
- Following the latest trend in vehicle electronics, newer cars mainly use a pulse width modulated power feed for outer hull lights, which is unsuitable for imaging/video electronics, as it causes considerable picture distortion.
- Use the included connection cable exclusively. Altering or replacing it will void your warranty.
Technical Specifications
| Image device: | 0.25″ CMOS Sensor |
| TV system: | NTSC |
| Viewing angle: | 140° horizontal |
| Sensor resolution: | 720 x 480 pixels |
| Resolution of video-out: | 480 TV lines |
| Minimum illumination: | 0.3 lux |
| Video output: | 1 Vp-p, 75 ohms |
| White balance: | Auto |
| Power supply: | DC 12 Volt typ. |
| Current consumption: | 60 mA max. |
| IP protection rating: | IP68 water and dust protected |
| Operating temperature: | -30°C to +75°C |
Rotatable Reverse Camera

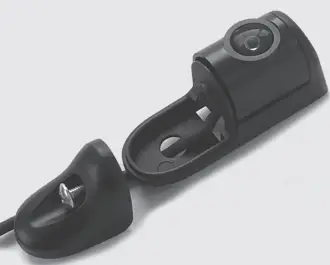

- Uncrew ths side cap. Cable goes through the hole in the bracket and remains invisible after the installation is completed.

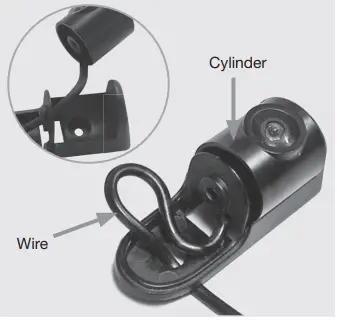

- Form an „S“ shape with the cable before you pull the cylinder out of the bracket. Drill a mounting hole and fix the bracket in place.
- Insert the cylinder into the bracket. Attach the side cap piece.
- Rotate the cylinder into desired view angle. Tighten the screw.
