RVC45DT REARVIEW CAMERA
Instructions
KEY FEATURES
- Compact 45° universal rear view camera
- System design for easy mounting with deployment as front- or rear-view camera
- Detailed high contrast picture suited for twilight conditions

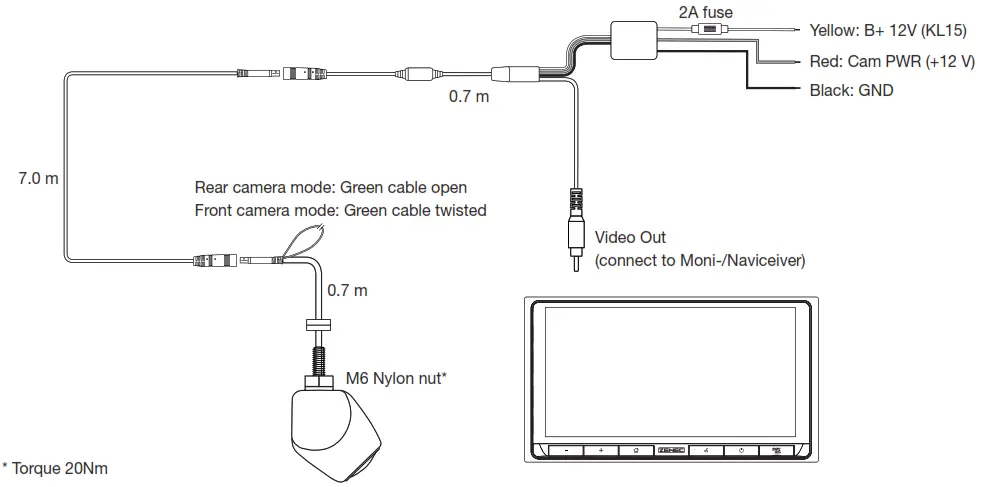

- Separable 3-part system cable, with cable parts of 0.7 m + 7.0 m + 0.7 m length
- Normal or mirror image picture output selectable
- Aluminum die-cast housing with M6 threaded tube
DESCRIPTION:
The ZENEC ZE-RVC45DT rearview camera model was developed for universal use, allowing retrofitting of a great variety of vehicles due to its extremely compact housing shape. The picture can be outputted as normal or mirror image, for mounting and utilization of this model as a front- or as a rearview camera. Besides, the ZE-RVC45DT offers a large horizontal viewing angle of 140° for a good overview.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up, including ZENEC 2-DIN infotainers and naviceivers.
CAUTION:
- Use the included connection cable exclusively. Altering or replacing it will void your warranty.
- The camera is water- and dustproof and has been licensed according to the international standard IP69K. However, vehicle cleaning using high-pressure water and steam jet devices may still lead to damage to IP69 K-rated camera models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
Technical Specifications:
| Image device: | ¼” / 6.4 mm Aptina ASX340AT CMOS sensor |
| Lens focal length: | f1.5 |
| TV system: | NTSC / 60 fps |
| View angle: | 180°(D) x 140°(H) x 90°(V) |
| Native sensor resolution | 680 (H) x 512 (V) pixels |
| Resolution of video-out: | > 420 TV lines |
| Frame rate: | 60 fi elds/sec. |
| Signal to noise ratio: | > 48 dB |
| Light sensitivity: | 0.5 Lux/F1.2/50IRE |
| Video output: | 1.0 Vp-p, 75 ohms CVBS |
| White balance: | Auto |
| Backlight compensation | Auto |
| Gamma correction: | 0.45 |
| Gain control: | Auto |
| Sync system: | Auto |
| Power supply: | 12 DCV (9 V – 16 V) |
| Current consumption: | 60mA (DC12V) / ≤ 720mW |
| IP protection rating: | IP69K |
| Operating temperature: | -30°C~+75°C |
ZENEC. Bohrturmweg 1. CH-5330 Bad Zurzach. Switzerland
EU Legal Representative: ACR S & V GmbH Industriestraße 35 -D-79787 Lauchringen .Germany
 |  |

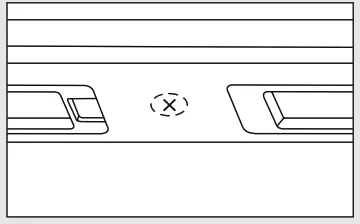

| Rear view camera with aluminium die-cast housing and M6 threaded tube. | lnstall the ZE-RVC45DT in the license plate illumination lights panel. Take off the anel and drill a hole of Ø 6.5 mm. |
 |  |

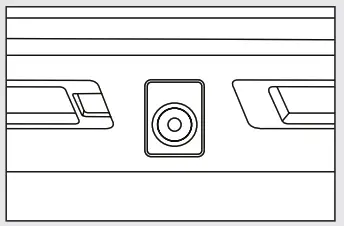

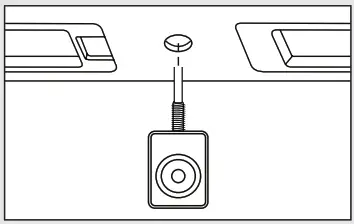

| Put the cable and the thread through the hole and fasten the camera with its ring and screw nut. | Run the cable to the front and assemble the light’s panel. |
