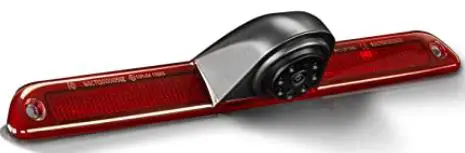

ZENEC ZE-RCE4606 Rear View Camera for Mercedes Sprinter
KEY FEATURES
- Compact, high resolution rear view camera for MERCEDES.
- Sprinter and VW Crafter vehicles.
- Easy “Plug & Play installation.
- Integrated microphone.
- LDR controlled day / night mode with 6 night vision IR-LED’s.
- Manual adjustment of vertical image section in 3 steps.
- Separable 3-part system cable, with cable lengths of 0.7m + 15m + 0.7m.
DESCRIPTION
ZENEC‘s vehicle specific rear view camera ZE-RCE4606 replaces thenoriginal third brake light of your MERCEDES Sprinter or VW Crafter.nOf course, you don´t have to do without the third brake light. ThenZENEC camera module takes over the original brake light, for simplenPlug & Play retrot connecting to the vehicle-mounted cable.nAn integrated microphone and an IR-LED night illumination systemnare part of the ZE-RCE4606 cam as well. This product is compatible with a wide variety of 2-DIN A/V receiversnof the aftermarket and the ZENEC E>GO product line up, includingnZENEC 2 DIN Infotainers and Naviceivers
CAUTION
- Use the included connection cable exclusively. Altering or replacing it will void your warranty.
- The camera is water- and dustproof and has been licensed according to the international standard IP68.
- However vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP68 rated camera models by water intrusion.
- Keep a distance of at least one meter between the water nozzle and the camera housing.
Technical Specifications
| Image device | ¹/³ / 8.5mm Sony CCD sensor |
| Lens focal length | f2.6 |
| TV system | NTSC / 60 Hz |
| View angle | 130°(D) x 102°(H) x 77°(V) |
| Native sensor resolution | 752 (H) x 494 (V) pixels |
| Resolution of video out | > 600 TV lines |
| Frame rate | 60 fields/sec. |
| Signal to noise ratio | > 48 dB |
| Light sensitivity | 0.1 Lux, 0 Lux if IR on |
| Video output | 1.0 Vp-p, 75 ohms CVBS |
| White balance | Auto |
| Backlight compensation | Auto |
| Gamma correction | 0.45 |
| Gain control | Auto |
| Sync system | Auto |
| Power supply | DC 12V |
| Current consumption | 150mA (DC12V) / ≤ 1800mW |
| IP protection rating | IP68 |
| Operating temperature | -20°C~+70°C |
INSTALLATION
Use a Phillips screwdriver to remove the two screws on the left and right of the third brake light. Carefully pull out the brake light and disconnect the plug on the rear. Now you have to loosen the original bulb from the third brake light and insert it into the ZENEC module. The enclosed sealing tape must also be glued to the ZENEC module so that it later seals between the vehicle and the brake light. If necessary, clean the area around the brake light recess. Connect the ZE-RCE4606 module to the plug (power supply) you previously unplugged. Insert the module and screw it with the original screws. Route the connecting cable through the vehicle forward, connect it to your device and perform a functional test
