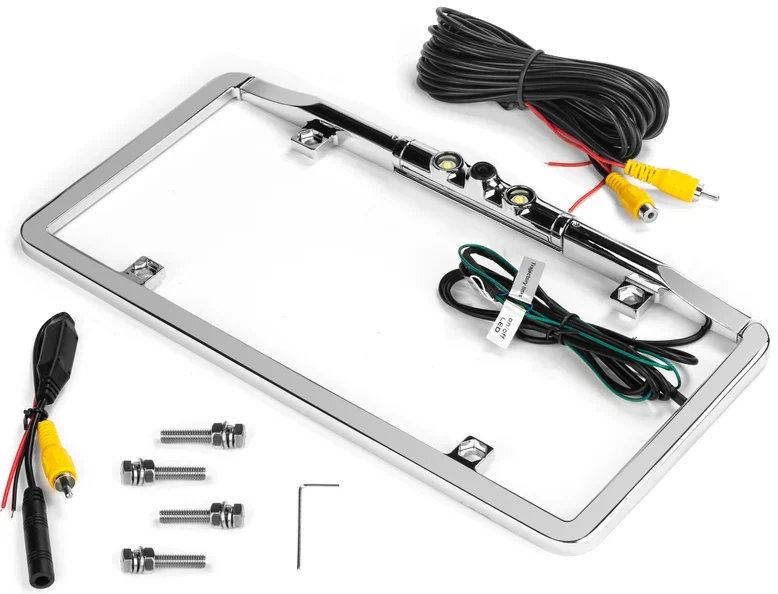

BOYO VTL275LTJ Slim Rear View Camera

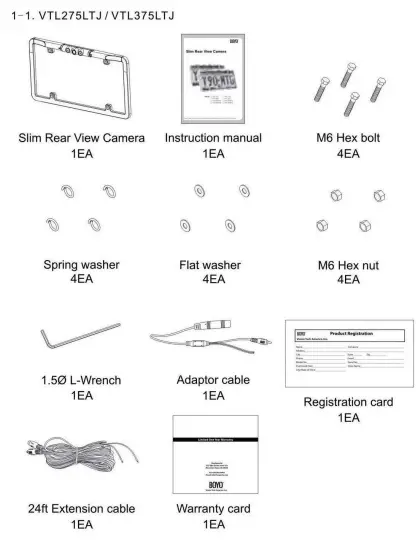

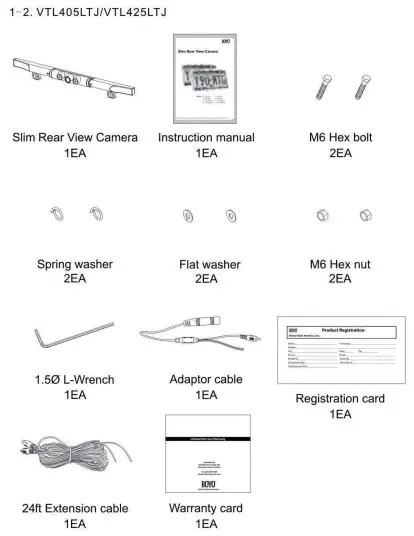

Package
Limited time warranty
Limited time warranty applies only if care instructions are followed regularly. In the event of a defective product or workmanship, please return the item to the place of purchase
Care instructions
Periodically the mounting frame’s appearance may need maintenance. Please take the following action to restore its original brilliant luster. Use nonabrasive mild soap detergent and water only to clean.
Key Features
- 1/3″ CMOS Color Image Sensor
- 960 x 480 Resolution
- 700 TV Lines
- 175 degree Wide Viewing Angle (D)
- Minimum Illumination O Lux at F2.0
- LED Lights For Excellent Night Vision
- Reverse/Non Reverse lmage(Selectable)
- Trajectory Parking Lines On/Off(Selectable)
- Camera Swivels Up and Down
- IP68 Waterproof Rating
- 24ft Video Extension Cable
- Voltage Tolerance:9VDC-16VDC
- NTSC
* Beautiful design & anti-scratch coating
The camera design is very elegant. Its scratch-free coating protects the finish with a very long-lasting appearance.

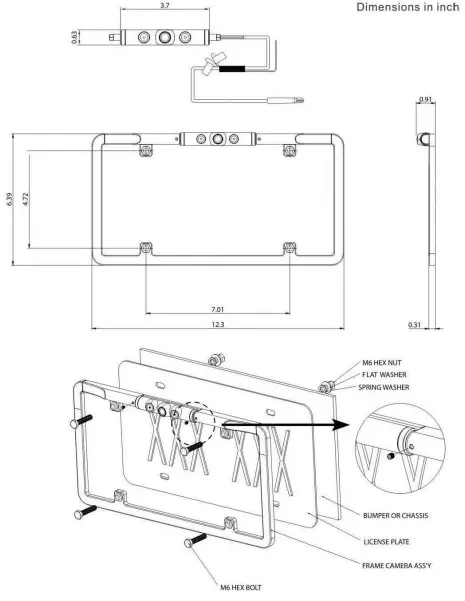

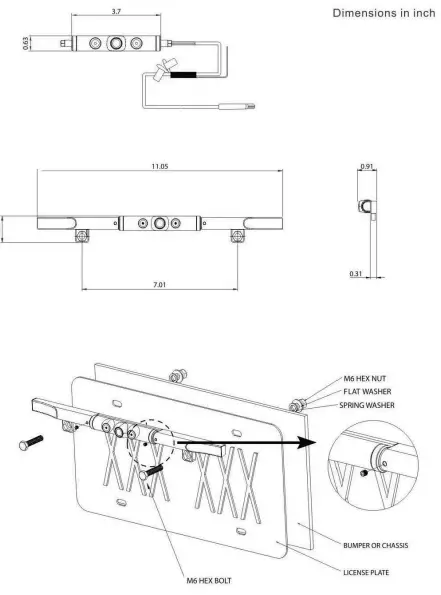

Dimension(inch) & Wiring
. VTL275LT J / VTL375LT J
VTL405LT J / VTL425LT J

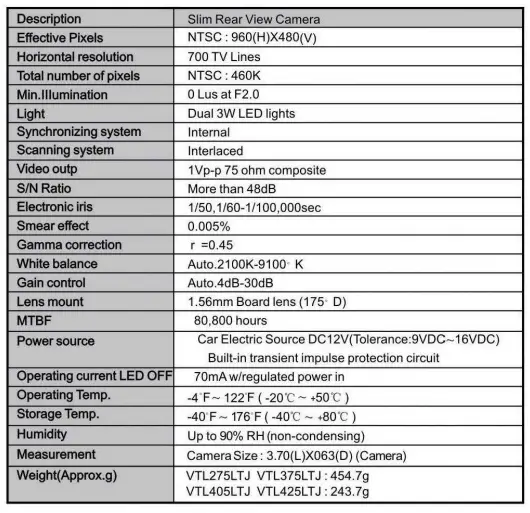

Specification

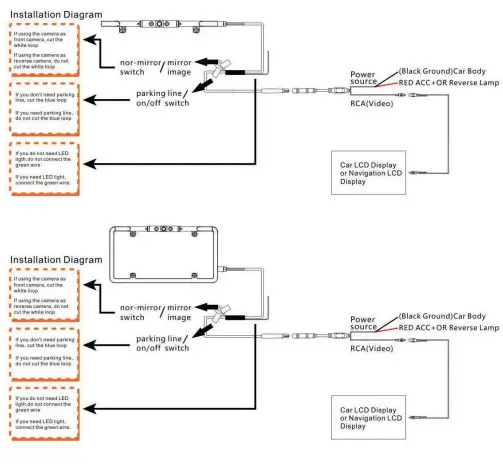

Connection instructions
VTL275LTJ / VTL375LTJ / VTL405LTJ / VTL425LTJ
