VTL275TJ Super Slim License Plate Camera
Instruction Manual

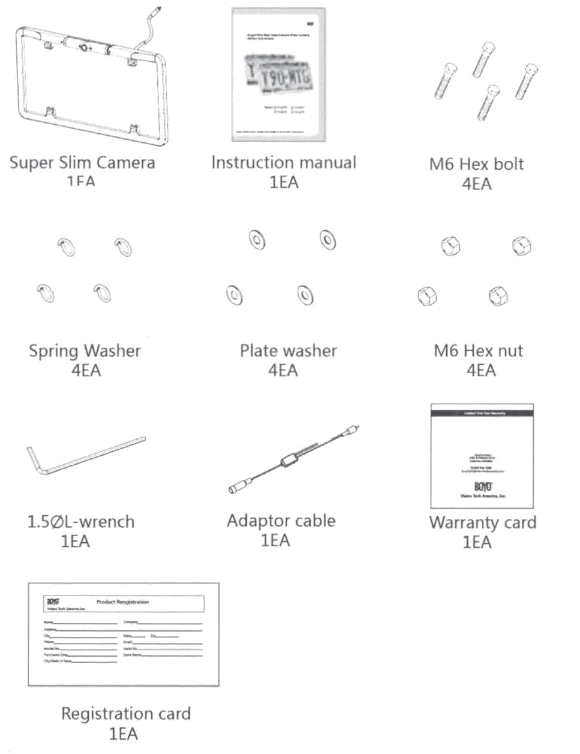

Package
l-l.VTL275TJ / VTL375TJ
1-2.VTL405TJ / VTL425TJ
Limited time warranty
Limited time warranty applies only if care instructions are followed regularly. In the event of a defective product or workmanship, please return the item to the place of purchase.
Care instructions
Periodically when the frame’s appearance needs maintenance, please take the following action to restore its original brilliant luster. Use nonabrasive maid soap detergent and water only to clean.
Key Features
- 170°Wide viewing angle(D)
- 520 TVL Horizontal Resolution(VTL275TJ / VTL375TJ / VTL405 / VTL425TJ)
- Trajectory Parking lines
- Excellent Auto White Balance
- Waterproof(IP67)
- Parking lines on/off selectable
- Viewing angle adjustable up & down
- Reverse /Non-Reverse image selectable
*Beautiful design & anti-scratch coating
The camera design matches well with the product’s quality. It looks so elegant as much as the camera quality stands for. The unique face aims to best fit to the environment and be decorative to any place. It lasts its beautiful shape a long time with a scratch-free coating.
Dimension& Wiring

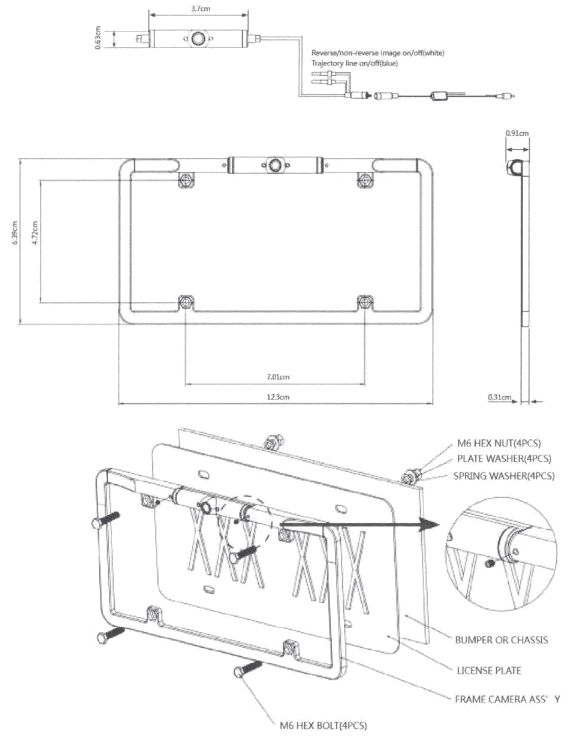

5-l.VTL275TJ / VTL375TJ

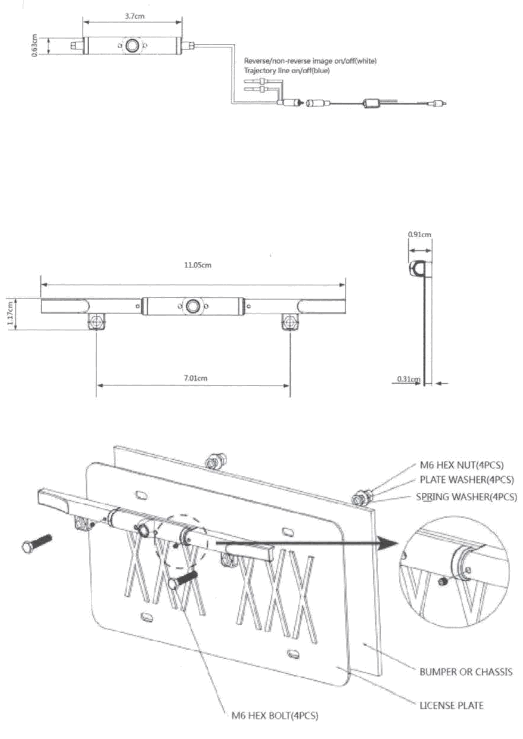

5-2.VTL405TJ / VTL425TJ
Specification
6-1.VTL27STJ / VTL37STJ / VTL405TJ / VTL42STJ
| Oe5<rlptlon | Super ‘>lim l license r tate (amera |
| Effective Pixels | NTSC: 768(H)X494(V) |
| Hori&onUI reso1U1ion | 520TV lines |
| Toti! number of pixels | NTSC 380K |
| Mln, illumination | 0.1 Lux AT F2.0 |
| Synchronlzl119 system | Internal |
| Scanning system | Interlaced |
| Video output | lVp·p 75-ohm composite |
| S/N Ratio | More than soda |
| Electronic Iris | 1/50 1/60· 1/100,00sec |
| Smear effect | 0.01% |
| Gamma correction | ,=0.45 |
| White b.ilance | Auto.2100’K 9100’K |
| Gain control | Aulo.4dB 30dB |
| Lens mount | 1.56mm Board lens (17so) |
| MTIF | 80.000 hours |
| Power source | C.ir [!Petric Source OC12V (Tol!’rilnce:9·16V) Built-in transient impulse protection circuit |
| Operatl119 current | 70mA w/ regulated power 10 |
| Operatl119 Temp. | 4F-122°F ( 20’C~+60C) |
| Storage Tffllp. | ·40°F~l76’F ( 40″C~+80″C) |
| Humidity | Up lo 90% RH(non·condensing} |
| MNSUrement | Camt-ra Size : l70(L)X0.63(D)(Camera) |
| Weight(Approx.g} | VTL275TJ, VTL 37STJ:469.5gNTL405TJ,VTL425TJ1.59. Sg |
Vision Tech America, inc.
1452E.Valencia Dr, Fullerton, CA92831
Ph:888-941-3060
www.visiontechamerica.com
Do not display a direct view of the sun for long periods
- A burned image could remain on the screen.
Vision Tech America, Inc.
Limited One Vear Warranty
To submit a request for a warranty online, visit www.visiontechamerica.com/site/get-warranty/ This limited warranty is given to the end-user or the retail purchaser(referred to his warranty as Original Purchaser’) that it will be free from defects in material and workmanship for a period of one year from the date of the purchase of the new product(excluding accessory items such as power cords, cradle, memory card, adaptor, and cables). Customer will be responsible for freight charges incurred to return the product and will include a Cashiers Check or Money Order in the amount of $15.00 for the continental U.S. or $30 for Hawaii, Alaska, Canada, and Puerto Rico, Payable to VISION ECH AMERICA, INC. to cover return shipping and handling. A copy of the original proof of purchase and this warranty card with the RMA number given by Vision Tech America, nc. is required to receive warranty service. In the unlikely event that the new product should fail due to a defect in material or workmanship, Vision Tech America, Inc. will epair or replace the entire product, where each party will be responsible for one-way shipping.
This limited warranty does not cover any physical damage to this product, damage caused by improper installation; improper use; misuse; neglect; repair of cracked, scratched, broken, or modified cosmetics; or parts that have been altered or removed; damages done by another device used with this product resulting from use of non BOYO@- brand arts. This warranty is VOID if you purchased this product as used, floor model sample, or refurbished; if the product has been altered or modified in any way(including but not limited to attempted repair without aut horizon ion from BOYO@- Vision Tech America, Inc. and/or alteration/removal of the serial number). This limited warranty does not cover the vehicle of any damages or liabilities in which this product is installed or is being installed. This product does not guarantee avoidance of vehicle collision or accident.
If you think your product is eligible for warranty service, report to Vision Tech America, Inc. at888-941-3060 or email: [email protected] to receive an RMA Number with further instructions.
Model Number:…………………….
Serial Number:……………………
Date of Purchase:……………..
Purchased Store Name:………….
RMA Number·……………………
Name:……………………………….
Your address:…………………….
City:………………………………
State·……………………………
Zip………………………………
Country:…………………….
Important. To send a defective product for warranty service, you must receive RMA(Return Material Authorization) , and include the original proof of purchase and this warranty card with the shipment.
