VTL17LTJ Concealed Mount License Plate Camera
Instruction Manual

VTL17LTJ
Concealed Mount License Plate Camera with LED Lights/Trajectory Parking Lines

Bill of Materials

Specifications

Installation

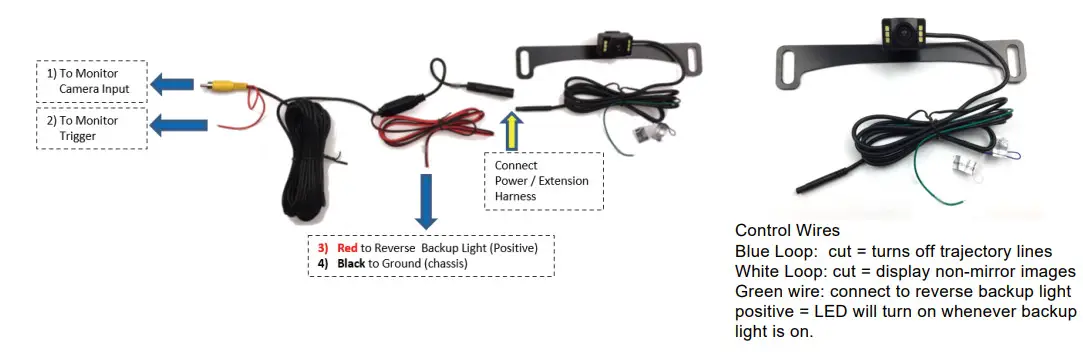

** Monitor trigger ** when the reverse backup light comes on it will trigger the monitor to switch to the backup camera.

1. Find a suitable location to surface mount and install the camera. Make sure the camera’s view is unobstructed and be careful not to drill into any wires that might damage the vehicle. When all connections have been made and before mounting the camera, verify the camera is working and has a good view of the area. Then mount the camera down with the supplied two screws.
2. Connect the RED wire to the +12 volt reverse wire
3. Connect the BLACK wire to the Chassis ground (a metal, non-painted surface).
4. Connect the GREEN wire to the + 12V volt reverse wire.
5. Run video cable through the vehicle, up to video monitor. (Avoid placing video cable where it can get pinched or damaged).
6. Attach the YELLOW video RCA to the reverse camera input of the radio or video monitor; connect the RED wire coming from the YELLOW video RCA to the reverse trigger wire on the radio or video monitor.

NOTE: The camera comes with trajectory lines and a mirror image view active. If you want to remove the parking lines or change the image to a reverse image, follow the steps below:
A) Disconnect power to the camera.
B) Cut the BLUE loop to remove the trajectory parking lines. isolate and tape the wires.
C) Cut the WHITE loop to get the normal image, isolate and tape the wires.
D) Reconnect power to the camera. If the trajectory parking lines are needed or the image needs to go back to reverse, just follow the steps above and reconnect the wires.

For any technical support, contact 888-941-3060 or email [email protected]
WWW.VISIONTECHAMERICA.COM

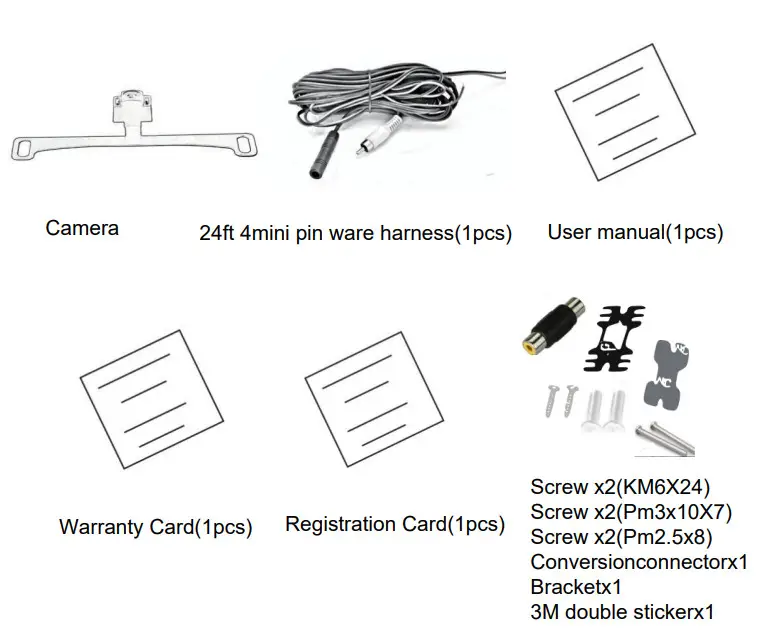

Bill of Material

Specifications

• Moving Trajectory Parking Lines ·concealed Mount License Plate Camera With LED Lights
• 600 TVL Horizontal resolution
• Excellent Auto White Balance
• Reverse/Non-Reverse image selectable
• Parking Li ne on/off Selectable
• To Control LED Lights· 170 degrees wide viewing angle

Installation Tips

1. VTL 17LT J is designed to work best on vehicles that have a license plate located at the center and above the rear bumper. If your vehicle has a plate location that is offset  to the left side, or right side, or your plate is located under the bumper then the VTL 17LT J may not provide optimum performance,
2. VTL 17LT J bar-bracket is designed to be mounted behind the license plate so only the camera is visible
3. VTL 17LTJ is designed to use the existing License Plate mounting equipment.
   Caution: The rearview camera must be mounted at an angle (30- 40 degrees). It must not be mounted horizontally straight. Otherwise, the sensitivity and accuracy will be affected accordingly.

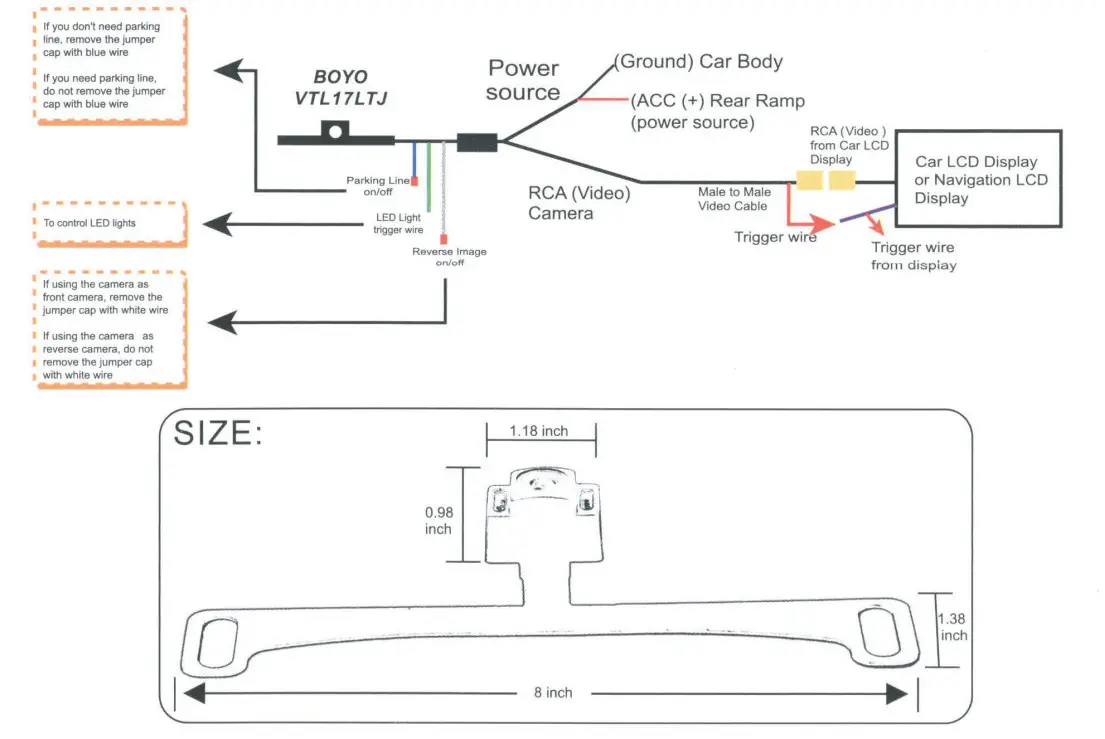

Dimensions (Inches) & wiring

Installation Diagram

For technical support, contact 888-941 -3060 or email [email protected] WWW.VISIONTECHAMERICA.COM

FEATURES

• Moving Trajectory Parking Lines
• CMOS Sensor with LED Lights
• 600 TVL Horizontal Resolution
• 720×480 Pixels
• Waterproof (IP67)
• Reverse/ Non-Reverse Image Selectable
• Parking Line on/off Selectable
• LED Lights
• Excellent Night Vision Picture Quality

Manufactured by Vision Tech America, Inc.

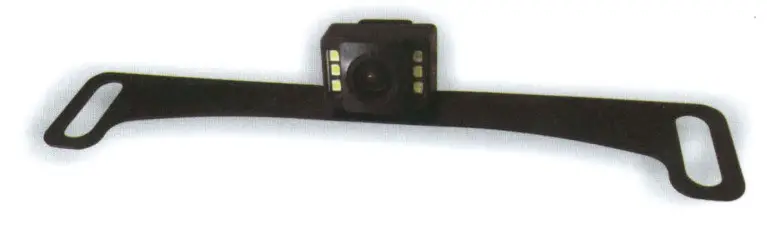

VTL17LTJ
Concealed Mount License Plate Camera With LED Lights

WWW.VISONTECHAMERICA.COM

UPCCODE

Vision Tech America, Inc.
1452 E. Valencia Drive
Fullerton, CA 92831

Product Registration

1-YEAR LIMITED WARRANTY
