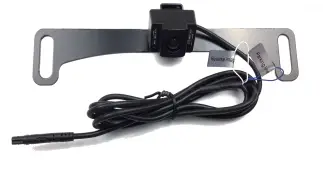

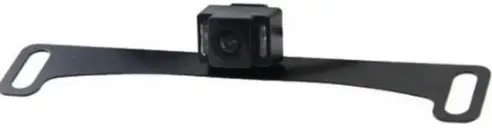

BOYO VTL17UIR Connected Mount License Plate Camera

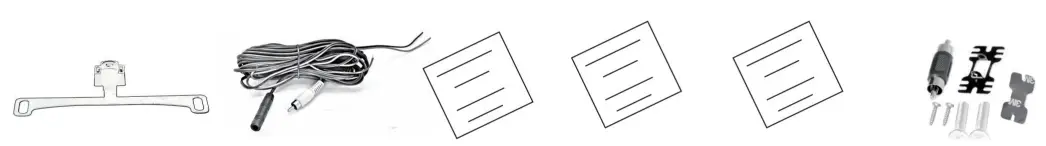

Bill of Material
- Camera
- 22 Ft RCA Wire harness (1pcs)
- User Manual(1pcs)
- Warranty Card(1pcs)
- Registration Card(1pcs)
Specifications
- Concealed Mount License Plate
- Camera With Night Vision
- 600 TVL Horizontal resolution
- Excellent Auto White Balance
- Reverse/Non-Reverse image selectable
- Parking Line on/off Selectable
- 170 degrees wide viewing angle
Installation Tips
- VTL17IR is designed to work best on vehicles that have a license plate located at the center and above the rear bumper.If your vehicle has a plate location that is offset to the left side, right side or your plate is located under the bumper then the VTL17IR may not provide optimum performance,
- VTL17IR bar-bracket is designed to be mounted behind the license plate so that olny the camera is visible
- VTL17IR is designed to use the existing License Plate mounting equipment.

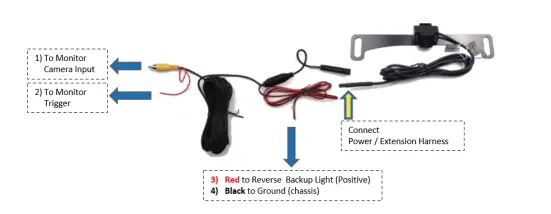

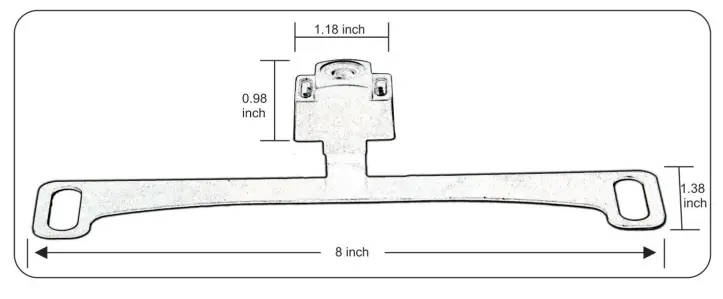

Dimensions (Inches) &wiring
Please bench test before installation
- Monitor trigger when reverse backup light comes on it will trigger the monitor to switch to the backup camera.
Control Wires
- Blue Loop: cut = turn off trajectory lines
- White Loop: cut = display non-mirror images
SIZE
For technical support
- contact: 888-941-3060
- email: [email protected]
