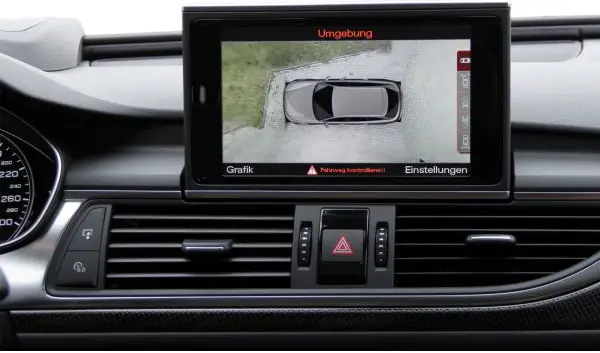

KUFATEC Surrounding Camera 4 Camera System Instruction Manual
Assembly Instructions

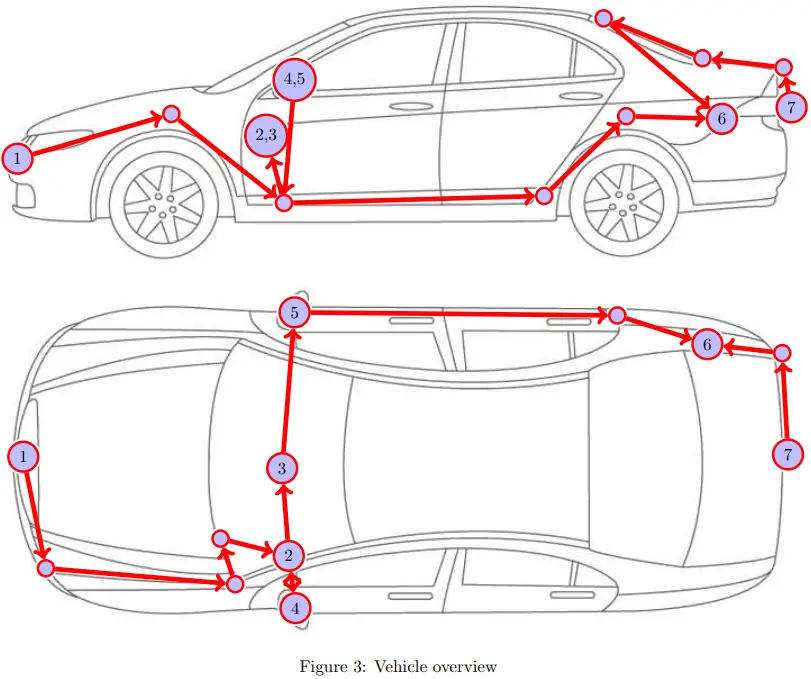

The following illustration shows the cable routing as well as the position of the individual components.
- Front camera
- Ground, steady plus, gateway connection
- FAKRA cable connection
- Side mirror camera driver’s side
- Side mirror camera passenger’s side
- Control unit
- Rear view camera
Please be aware that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
