KUFATEC Retrofit Set Electrical Tailgate GLB Instruction Manual
Assembly Instructions

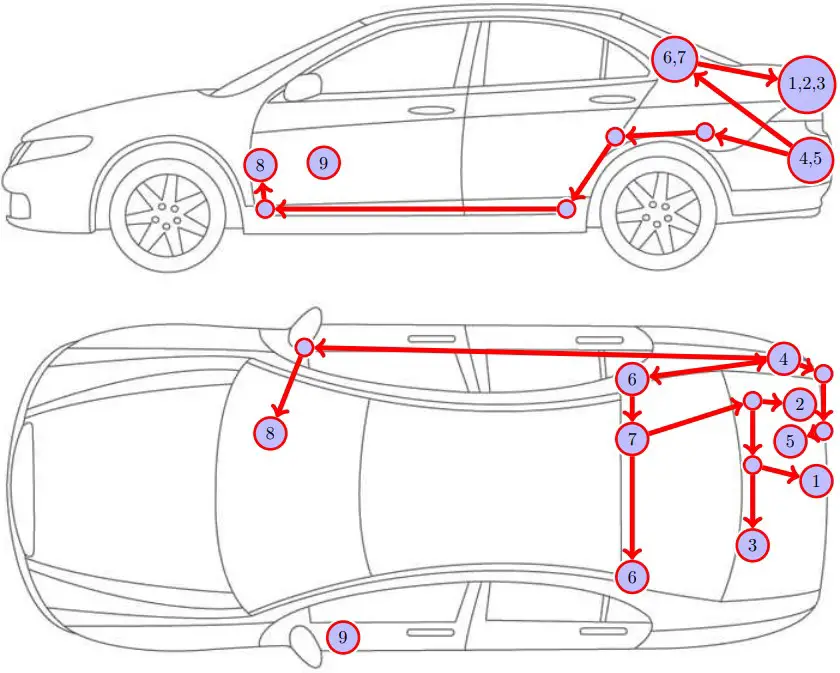

The following illustration shows the cable routing as well as the position of the individual components.
- 1 Tailgate lock
- 2 Tailgate button, warning buzzer
- 3 Closing aid
- 4 Control unit, ground pin
- 5 Rear fuse box if installed
- 6 Tailgate damper motor
- 7 Rubber grommet
- 8 Front fuse box, SAM
- 9 Door covering button
Please be aware that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
