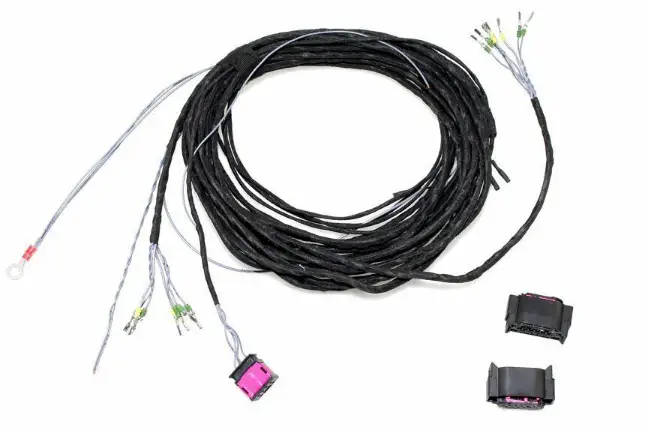

KUFATEC Cable Loom Lane Change Assistant Side Assist
Assembly Instructions

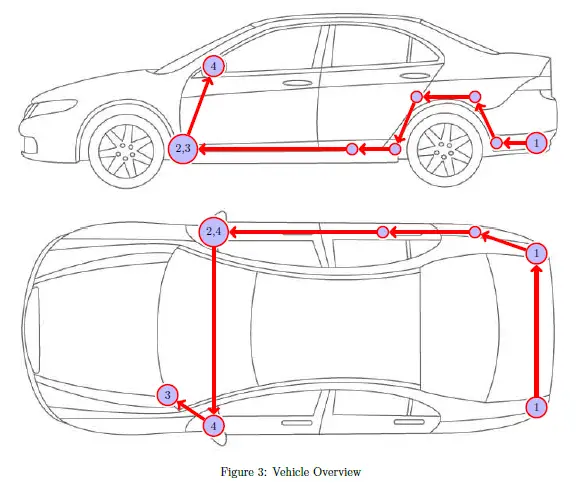

The following illustration shows the cable routing as well as the position of the individual components.
- 1 Sensor
- 2 Connection ground
- 3 Connection power supply, Can-Bus
- 4 Warning light
Please be aware, that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
Kufatec GmbH & Co. KG – Dahlienstr. 15 – 23795 Bad Segeberg – e-mail: [email protected]
