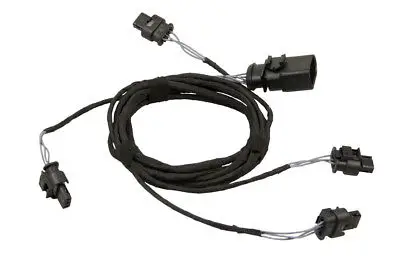

KUFATEC Cable Loom Pdc Sensor Park Pilot Front

Assembly Instructions

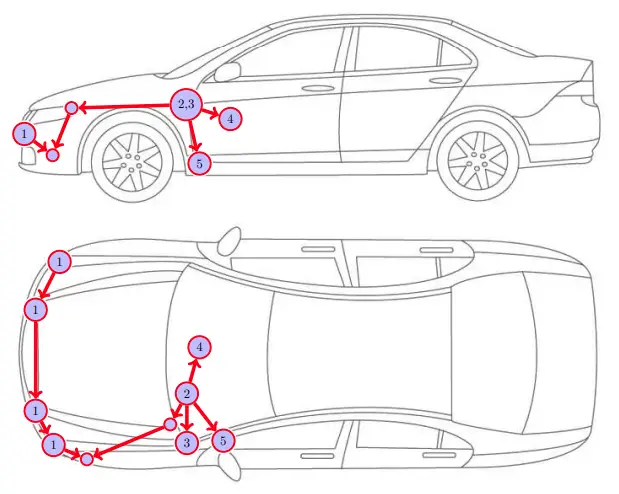

The following illustration shows the cable routing as well as the position of the individual components.

1. Sensors
2. Park Pilot control unit
3. BCM, warning buzzer
4. Button
5. Ground connection

Please be aware that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
