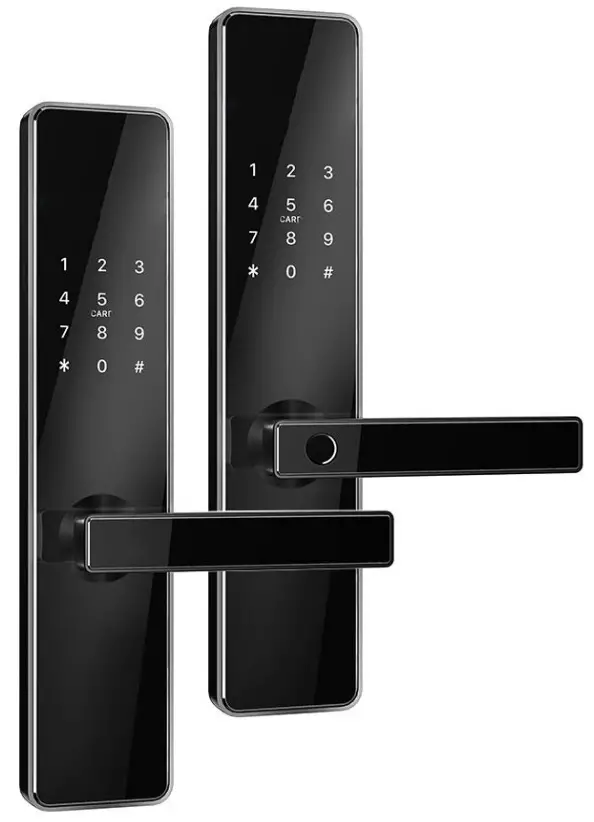

Smrat Lock H51 Wifi Lock User Guide

User Manual H51

Special Attention:

1. Mechanical keys please keep them outdoors, just in case keys lock indoors.
2. Please replace the battery when the low-wattage alarm is.
3. Reading this manual carefully before installation, and keep it for future reference.

Introduction

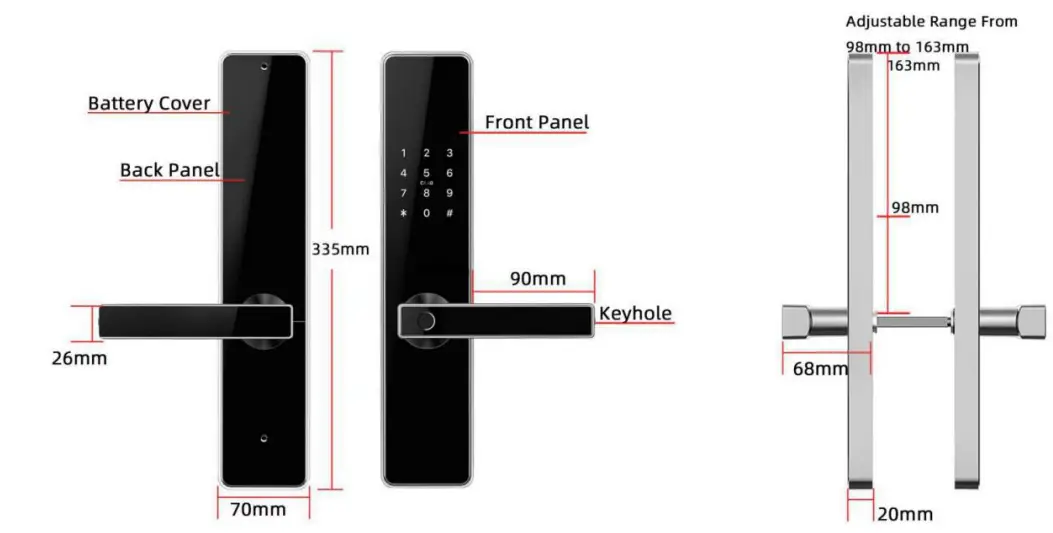

1.1.Lock structure

1.2.Packing List
Check the following drawing to check whether the package contains all the parts

1.3.Specifications

Features:

• Semiconductor fingerprint sensor(508dpi)
•  Passage mode function
•  User unlock records
•  Voice guided operation
•  Auto secure & break-in alarm
• Voice setting function
• Auto-locking time setting function
• Privacy locking
•  Anti-theft Password
•  Emergency power supply through USB

2.Installation

2.1Turn the handle
Notice: Adjust the handle according to the direction you open the door.

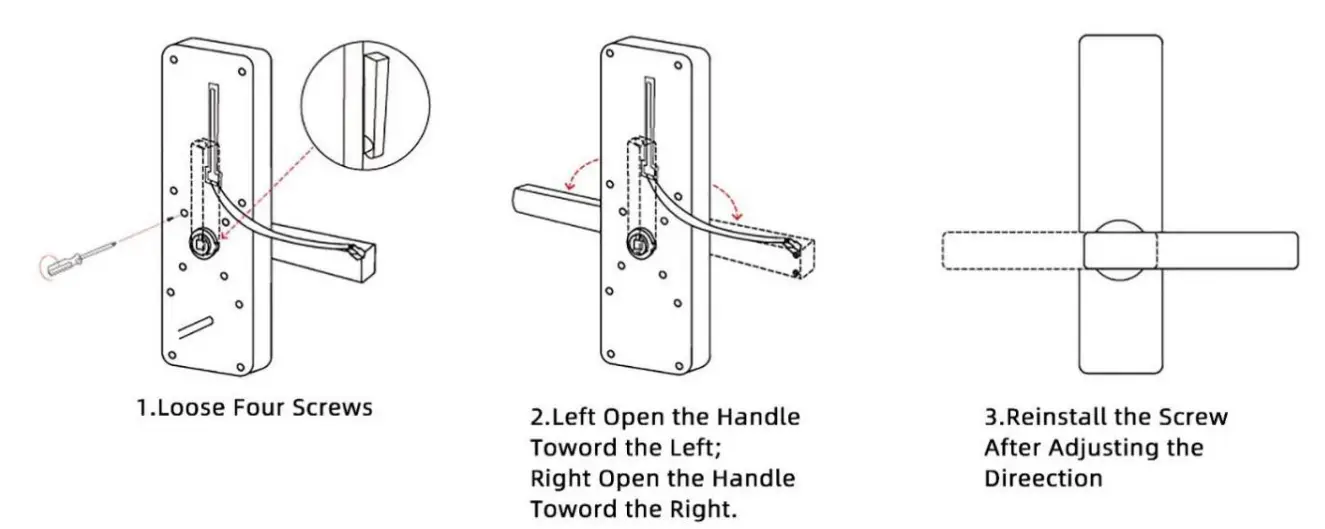

For Front Panel:

For Back Panel:

2.2. Installation Diagram(For 5572)

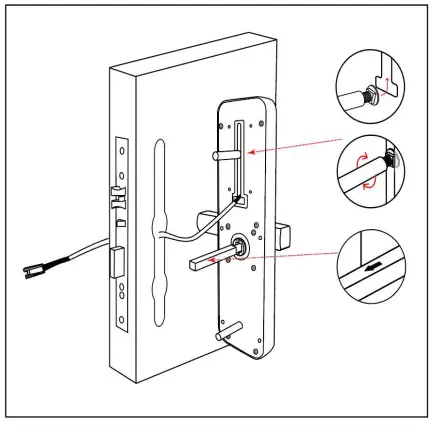

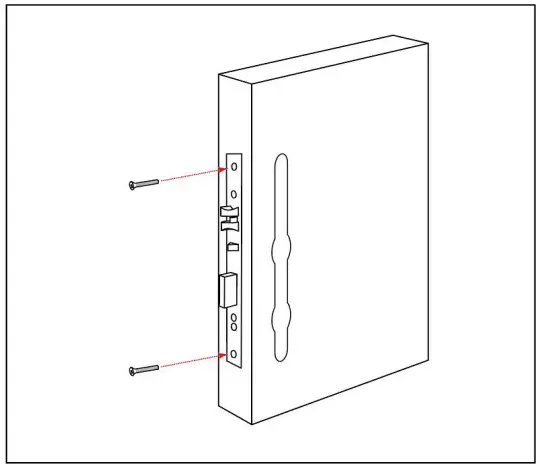

Step 1 Install Mortise	Step 2 Install Sliding Screw Casing
	1. The screw casing place is adjustable from 55mm to 100mm far from the square shaft. 2. Depending on the location of the hole-drilling or the old door hole. Keep the arrow direction(shown in the image) always upward.

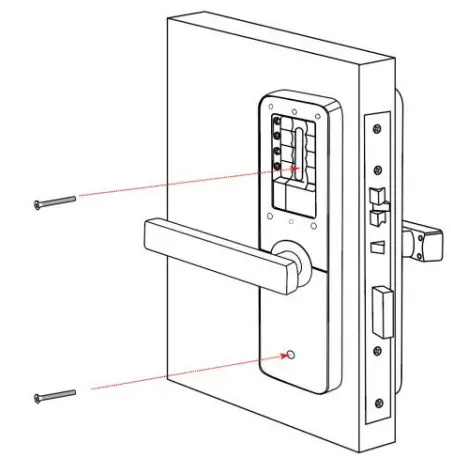

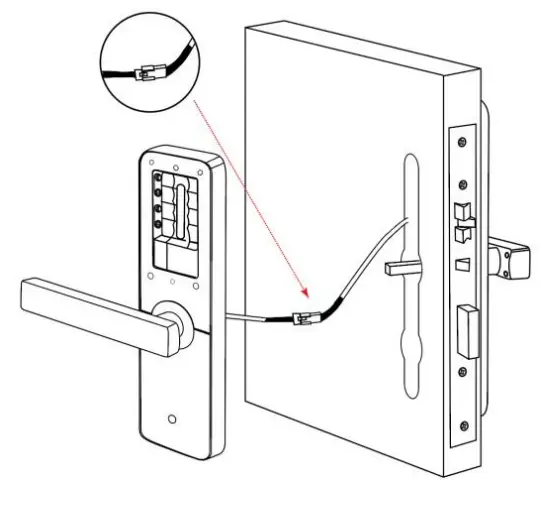

Step 3 Connect Front and Back Panels	Step4 Install Back Panel

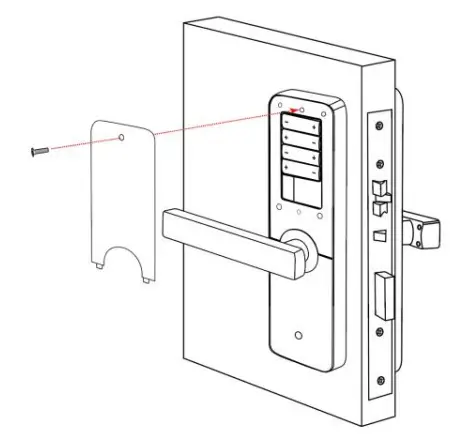

Step5 Install the Battery

Operation

3.1.Registration

http://a.app.qq.com/o/simple.jsp?pkgname=com.tongtongsuo.app&fromcase=40003

The software (iOS version) can be downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi.

3.2. Connect the lock to the phone

1. please scan the QR code to download the app
2. You can also search for TTLock in the APP store(Google Play)to download

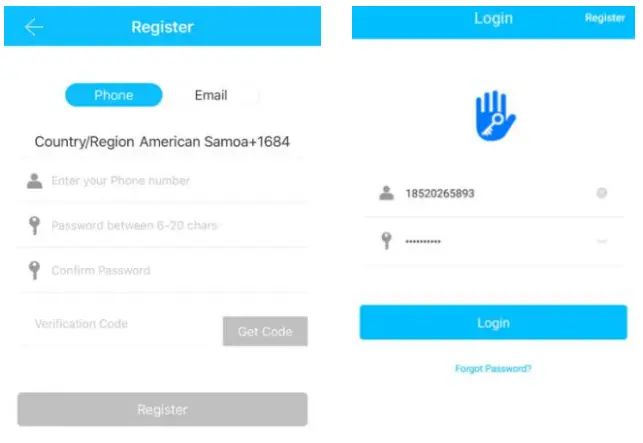

3. Register a new account (phone number or email) or log in with an existing account.
4.  Touch the lock screen to light, click “+ Add Lock”
5.  The lock nearby will appear on the phone screen, Click “+”
6.  Re-name the lock
7.  The lock was added successfully

Clock users can register the account by mobile phone and Email which currently support 200 countries and regions on the world. The verification code will be sent to user’s mobile phone or email, and the registration will be successful after the verification.

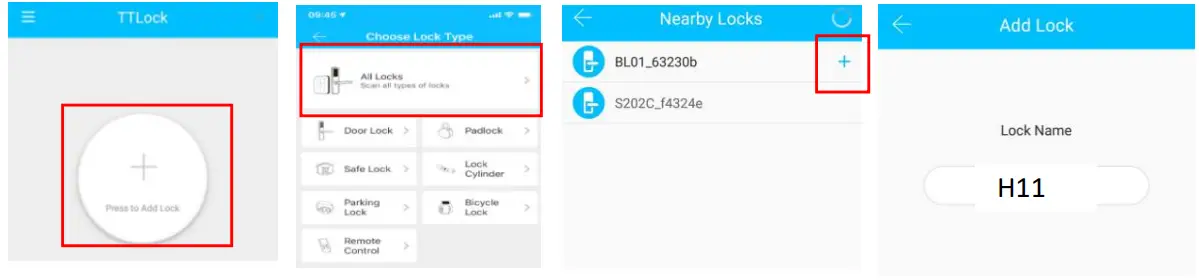

3.3.Add locks
TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone

3.4.User Management
3.4.1. Bluetooth management
Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click “ “to unlock.(the phone is within 5 meters from the door lock)

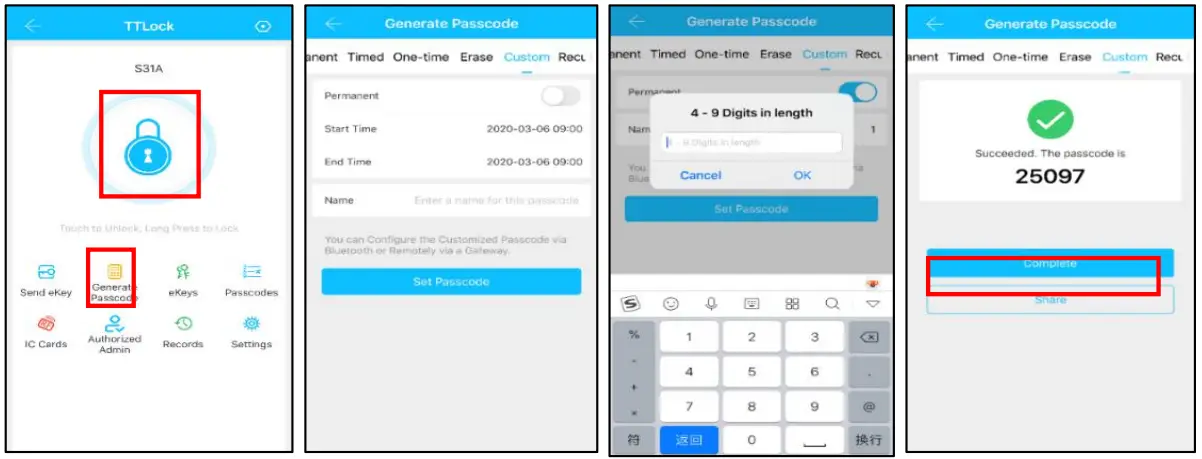

3.4.2. Setting Passcode
Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock. Passcodes are divided into permanent, time-limited, single, clear, cycle, and custom.(You can share the Passcode with another user via WeChat、SMS、Email、Messenger、WhatsApp)

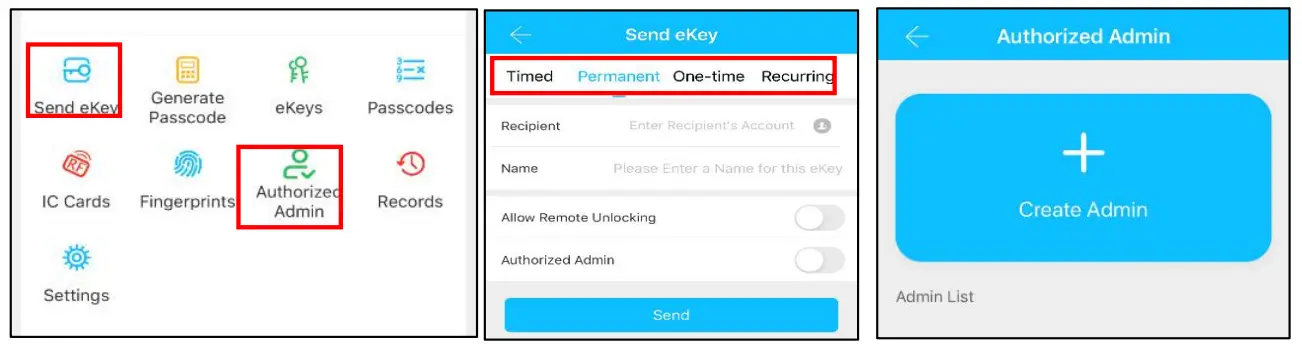

3.4.3. Send e-Key
Click on the “  ” as shown in the figure, and you can send the eKey to other users of TTlock to authorize the unlock(the receiver must download the APP and set up an account)→ Select e-key format (Timed, permanent, One-time, Recurring) → Enter recipient’s account of TTlock, set the name and effective time of the key, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure →Send→The recipient’s account has Bluetooth unlock permission

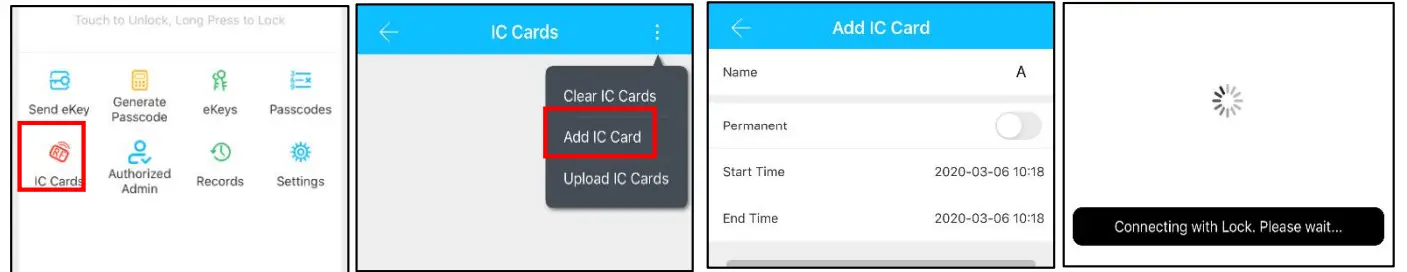

3.4.4.Add card
Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be perform ed by the app besides the lock.The validity period of the IC can be set, it can be per manent, or it can be limited in time.

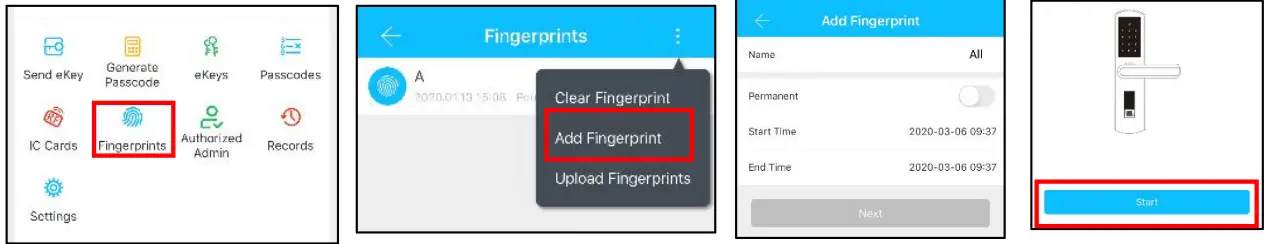

3.4.5. Add fingerprint
The premise that a fingerprint can be used to open a door is that it needs to be added first. The adding process needs to be performed by the APP beside the lock.
The fingerprint expiration data can be set, it can be permanent, or it can be limited.
After setting, you can modify its validity period.3.4.6. e-Key management
Click “ “ The manager can delete key, reset key, send, and adjust the ekey, meanwhile he can search the lock record.
3.4.7. Passcode management
Click “  ” .All generated passwords can be viewed and managed in the password management module. This includes a password change, password deletion, password reset, and password unlock record.

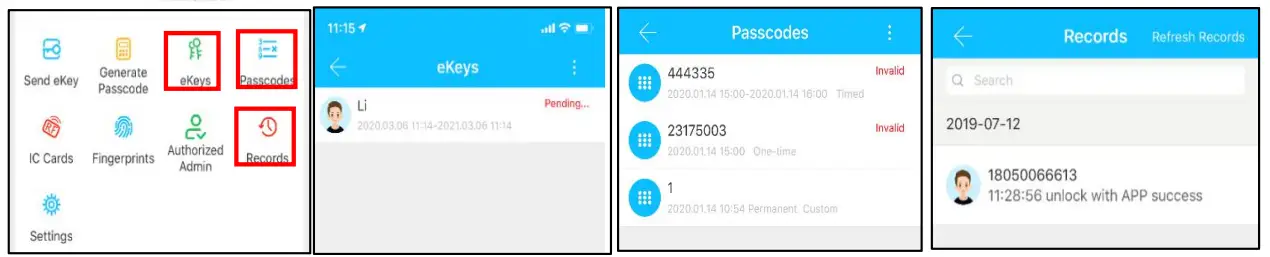

3.4.8.Unlock records
Click “  “you can query your unlock record as shown in figure

3.5.1. Add Gateway

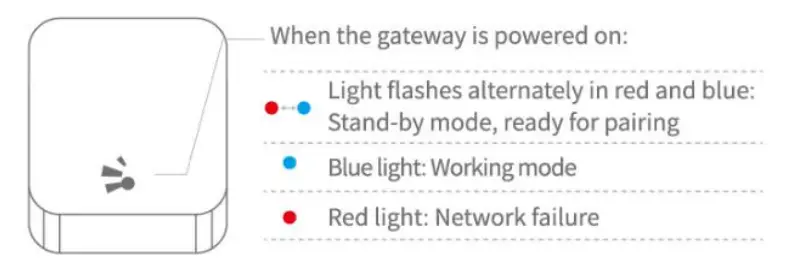

Light Status

Pair the Gateway with APP

1. Activate the APP
2. Press
3. Select [Gateway]
4. Select [ G2

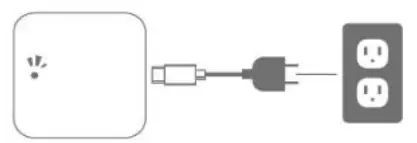

5.  Plug in the gateway and power it on, while the light flashes alternately in red and blue
6. Press sign
7. Add Gateway
8. Select the network and fill in the password
9. Add complete

Notice: If times out, please power off and try it again

3.5.2. Manual
After a short period of time, you can see which locks are in their coverage in the app. Once the lock is bound to the gateway, the lock can be managed through the gateway

FAQ

Guarantee

Customer Name：………………………………………….
Customer Calls：…………………………………………….
Purchase Date：………………………………………….
Product Name：……………………………………………
Product Model：…………………………………………

Note:

1. Please keep this card so that you can use it when you need warranty service.
2. We provide you with a one-year warranty from the date of purchase.
3. This warranty service is valid for customers in any country in the world.
