Rebel ZAR0477-1 Decorative LED Lights

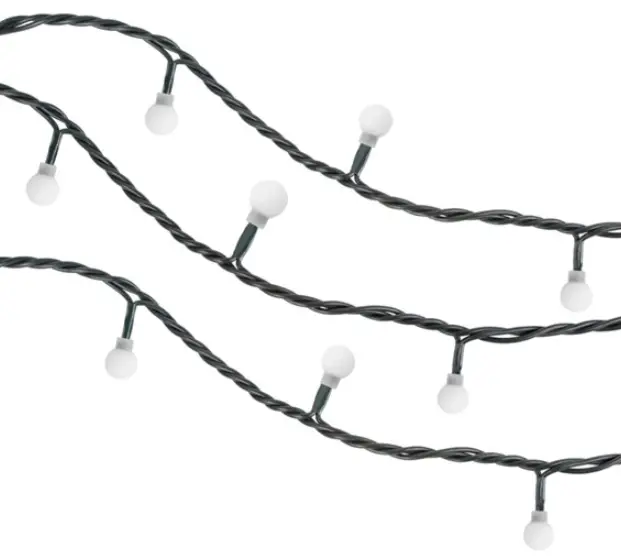

Rebel-ZAR0477-1-Decorative-LED-Lights-produict-image

SPECIFICATION

ZAR0477-1ZAR0478-1ZAR0479-1
Voltage31 V31 V31 V
Power3,6 W3,6 W3,6 W
Current116 mA116 mA116 mA
Number of LEDs100100100
Length10 m10 m10 m
Distance between LEDs10 cm10 cm10 cm
Length of the cable from the plug to the first bulb3 m3 m3 m
Protection classIP44IP44IP44
Operating temperature-20°C ~ +40°C-20°C ~ +40°C-20°C ~ +40°C
Light modes888
Colormulticolorcold whitewarm white
PowerSingle lamp (max.)0.045 W0.045 W0.045 W
CurrentSingle lamp (max.)0.015 A0.015 A0.015 A

OPERATION

  • Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
  • To change the pattern, press the button on the power supply.
  • Do not connect the lamps if they are still in the packaging.
  • This device is for outside usage.
  • Bulbs are not replaceable.
  • Do not connect more than three sets of the same kind.

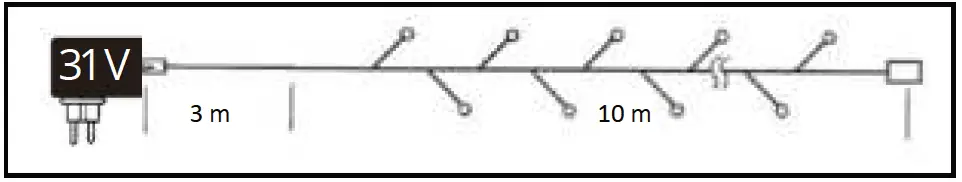

Rebel-ZAR0477-1-Decorative-LED-Lights-01

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.
