SEN-CITY Rail Active Rooftop
Instruction Manual
Mounting Instruction
Dimensions in millimeter [mm] | Keep away from centenary and high voltage lines. Be careful when working at height! Always secure ladders! Always tighten screws! |
 | Caution! EDS (electrostatic discharge) sensitive device. Always ground yourself while handling the GPS connector. For more information, see the Security Instruction for this product on the HUBER+SUMNER website. |
 | Avoid bringing the cover of the antenna into contact with acetone, gasoline or oil. |

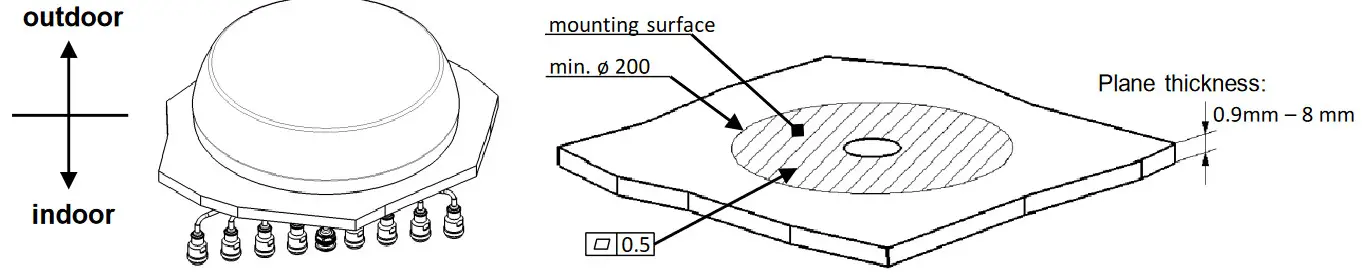

Mounting surface
The area where the antenna will be mounted has to be stable and preferably flat.

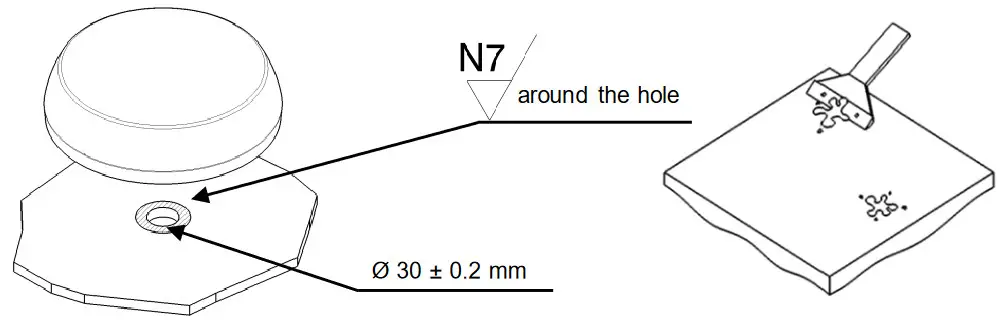

Drilling of hole and preparation of roof
Drill the mounting hole.
Clear the area around the hole from any corrosion, roughness, grease, oil, dwarf or dust.

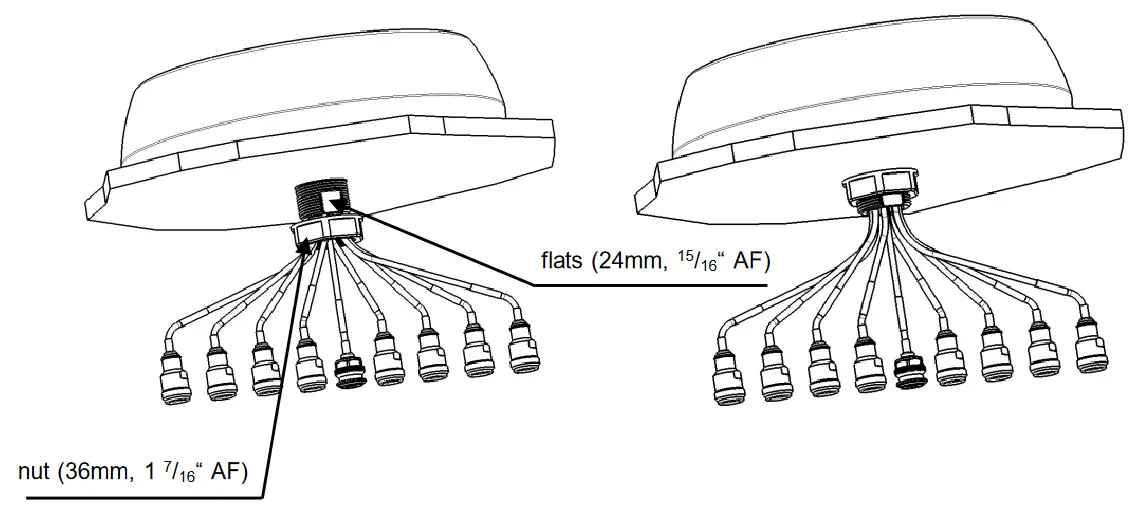

Installation of the antenna
Cable color codes1
| White | Cellular bands |
| Blue | ELAN / WiFi |
| Black | GPS2 |
| Red/ | TETRA (internal) |
| Yellow |
Connector torques
| ENC | 0.6 Nm |
| MAS | 1 Nm |
| N | 1 Nm |
| 4.3-6 | 1 Nm |
Loosen the nut from the shaft.
Remove the slotted washer.
Pass the cables through the hole.
Replace the slotted washer with stepped face towards hole.
Fasten the nut. Torque: 15 ± 2 Nm.
Use the flats on the antenna shaft to prevent the antenna from rotating while fastening.
Connect the cables. Take EDS precautions! Use cable holders to avoid tension on the connectors.
The cables can be recessed into the slot in the shaft to minimize installation depth.
Cable minimum bending radius: 8mm (static).
Unused connectors must be terminated.
General remarks
In the final position of the antenna, the draining hole and the connectors need to be protected against environmental impacts (indoor environment). Otherwise a cable conduit has to be used.
This product can be returned to HUBER+SUMNER for recycling at the end of its useful life. Please contact your local agent.
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical contained specifications and/or the fitness for any particular purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are intended for general informational purposes only.
HUBER+SUHNER – Excellence in Connectivity Solutions
HUBER+SUHNER AG
RF Technology
9100 Thesauri, Switzerland
Phone +41 (0)71 353 41 11
Fax +41 (0)71 353 47 51
www.hubersuhner.com
DOC-0001152896 Rev. A
