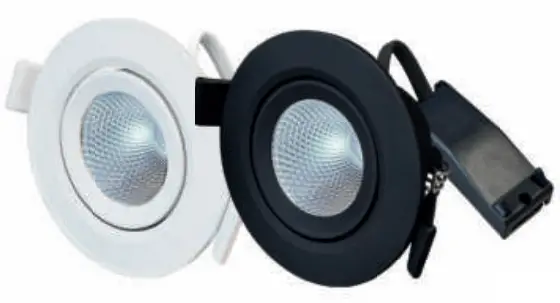

Interlight Il-ca4k27w Cascade Downlight Led Recessed Spotlight Instruction Manual

Cascade Downlight LED
Instruction Manual

Read this manual carefully and keep it for future use.

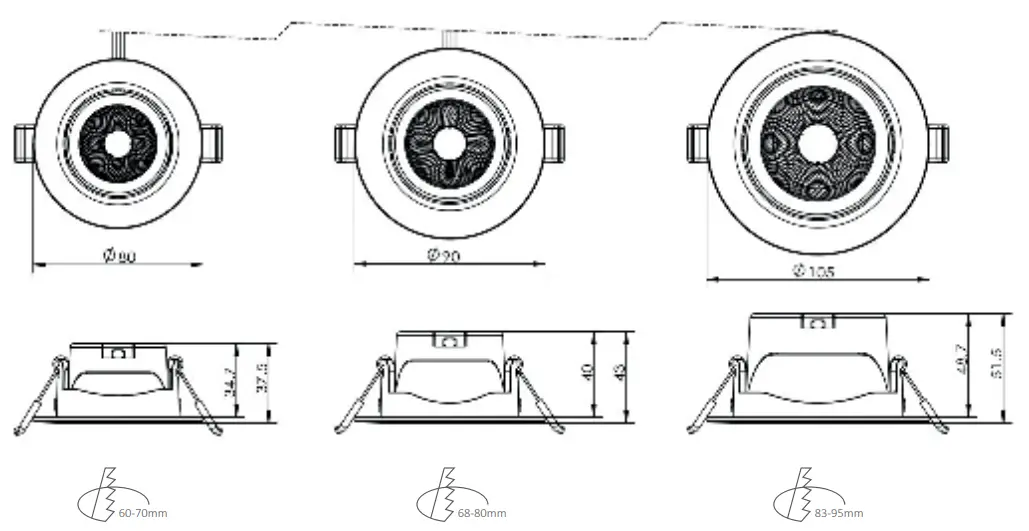

Dimensions

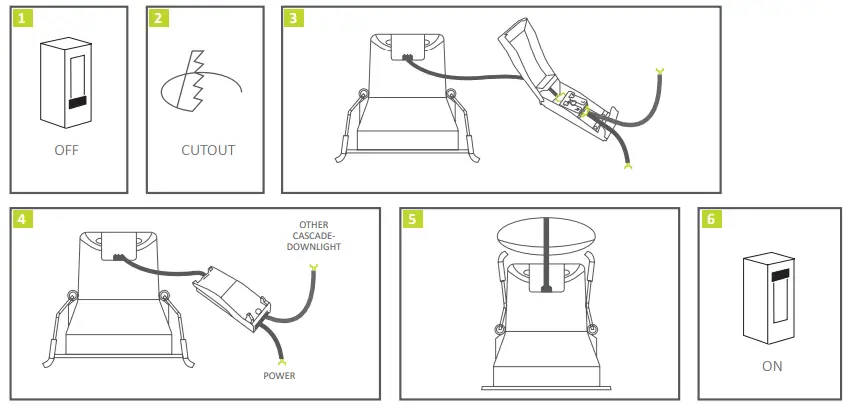

Installation

1. Turn off the power.
2. Drill a suitable mounting hole in the ceiling according to the specifi ed saw and the size of the variant used.
3. Open the junction box.
4. Connect a suitable power supply connection to the junction box using the terminals. Push the junction box tightly, making sure the power cable is fi rmly seated.
5. Squeeze both springs of the Cascade. insert the junction box into the ceiling fi first, then the Cascade. The springs will recoil and tension automatically. Make sure the downlight is fi rmly seated.
6. Check that everything is properly connected and then turn on the power.

The junction box also functions as a loop-through box for the other downlights.

This product contains a light source of energy efficiency class F.

Voor meer informatie over dit product. For more information on this product.
Fiir weitere Informationen zu diesem Produkt: www.koopmaninterlight.n1
