6 Inch LED Retrofit Recessed Commercial Grade Downlight
Instruction Manual

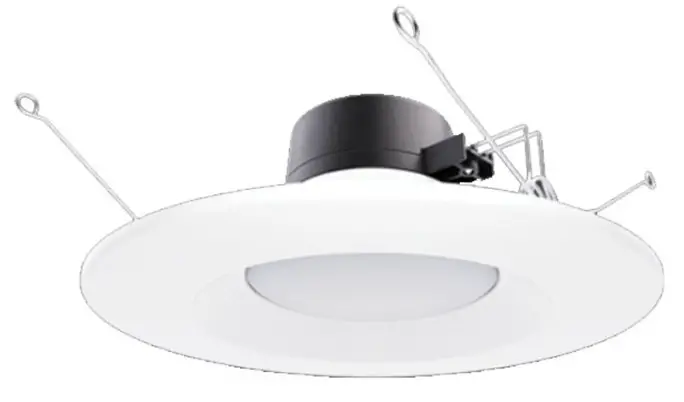

DESCRIPTION

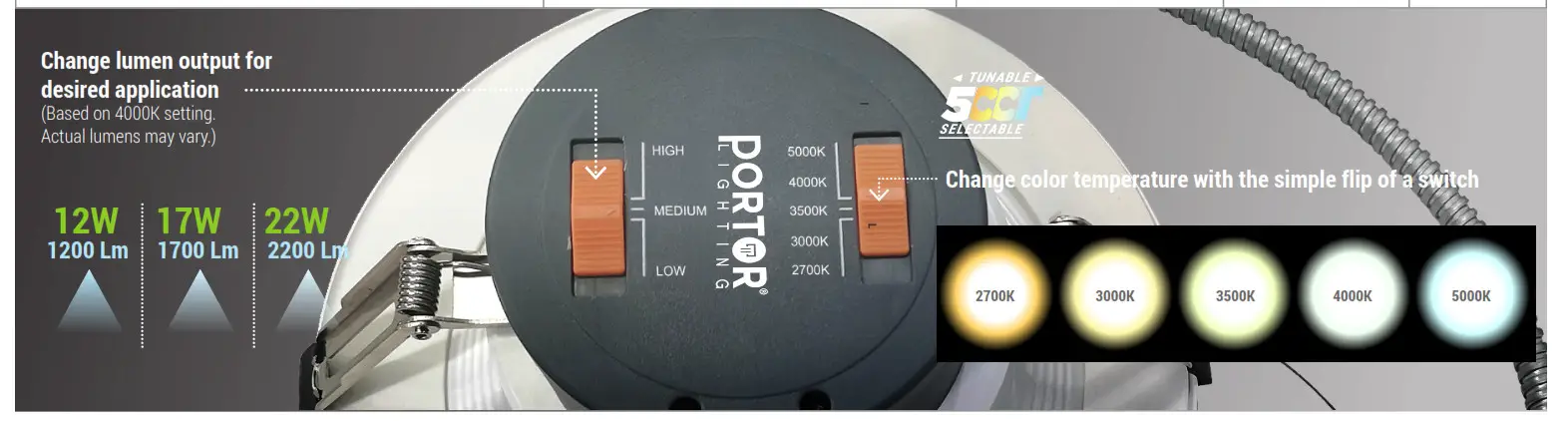

Portor’s second-generation commercial grade recessed downlight is wattage and color-tunable, and can be programmed with a CCT of 2700K, 3000K, 3500K, 4000K, or 5000K, eliminating the need to stock multiple color temperatures. Ideal use for commercial complexes, hospitality, healthcare industry, schools, shopping centers, industrial areas, and hotels.
FOR RETROFIT OR NEW CONSTRUCTION INSTALLATION
CONSTRUCTION
PC driver housing and aluminum baffle with architectural white finish. Standard gasket included ensuring a proper seal.
ELECTRICAL
Luminaire is built with the highest quality LED drivers, ensuring energy efficiency. Optional emergency battery pack.
ENERGY SAVINGS
80% more energy savings than halogen lamps. Low heat production requires fewer air-conditioning requirements, further increasing energy cost savings.
INSTALLATION
The adjustable housing clips allow for installation in a large range of commercial and architectural housings ranging from 6.0’’-7.4’’ (153-190mm). These spring action clips push up easily and fit securely for both retrofit and new construction installations.
LISTING ETL
Listed, FCC, RoHS, CE & Energy Star Listed
| NOMINAL WATT | DELIVERED LUMENS | EFFICACY |
| 12W | 1200 LM | up to 100 lm/W |
| 17W | 1700 LM | |
| 22W | 2200 LM |
TECHNICAL SPECIFICATION
| WATTAGE | 12W/17W/22W |
| CCT | 2700K I 3000K I 3500K I 4000K I 5000K |
| CRI | 90 |
| DIMMABLE | 0-10V, 5-100% smooth dimming |
| BEAM ANGLE | 100º |
| VOLTAGE | 120V-277V |
| POWER FREQUENCY | 50/60 Hz |
| POWER FACTOR | >0.9 |
| LIFESPAN | 50,000 hrs @ L70 lifetime |
| RATING | Suitable for wet locations |
| WARRANTY | 5 year limited |
MODEL NUMBER(S)
| MODEL# | WATTS | LUMENS | LM/WATT | CCT | CRI | VOLTAGE |
| PT-CDL2-6I-C3P | 12W/17W/22W | 1200/1700/2200 | up to 100 | 2700K/3000K/3500K/ | >90 | 120V-277V |
| Catalog Number: | Project Name: | Note: | Date: | Date: |
 | ||||
DIMENSION

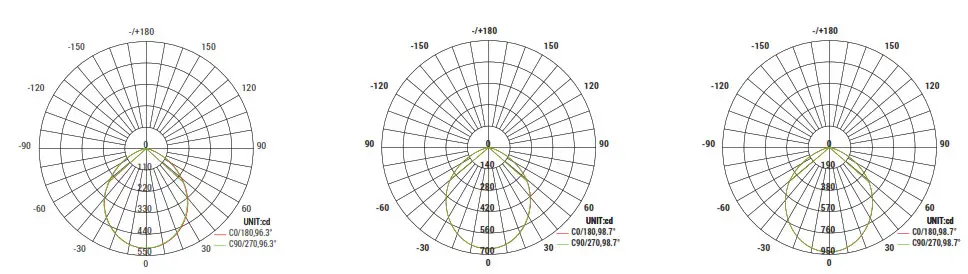

PHOTOMETRY (Luminous Intensity Distribution Diagram)
 | ||
| AVERAGE BEAM ANGLE(50%):96.3 DEG 12W @ 4000K | AVERAGE BEAM ANGLE(50%):98.7 DEG 17W @ 4000K | AVERAGE BEAM ANGLE(50%):98.7 DEG 22W @ 4000K |
Actual wattages may vary during testing
Specification subject to change without notice
www.portorlighting.com
Portor Lighting – LED Lighting Solutions
