RADIO & INTERCOM HARNESS WITH ROCKER SWITCH
Installation Guide

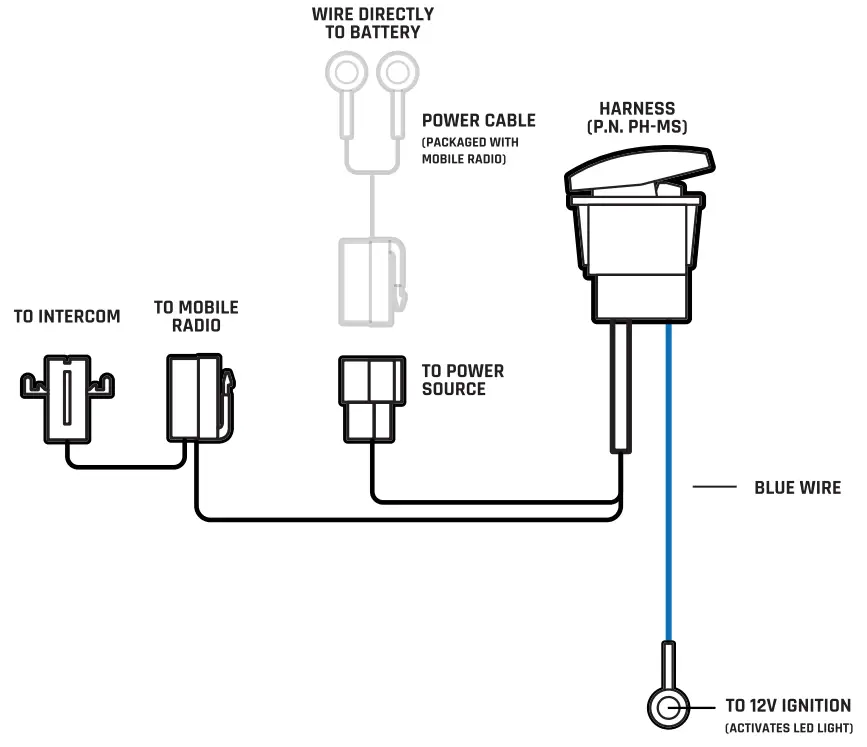

This guide will explain how to connect your Rugged Intercom and Mobile Radio inline with our Radio/Intercom Harness with Rocker Switch.
Radio & Intercom Harness with Rocker Switch (PM. PH-MS and PH-MS-WP)
- Blue wire connects to the accessory bus bar.
- The connection source should only be hot when the ignition is turned on.
Installation Guide with Active Filter

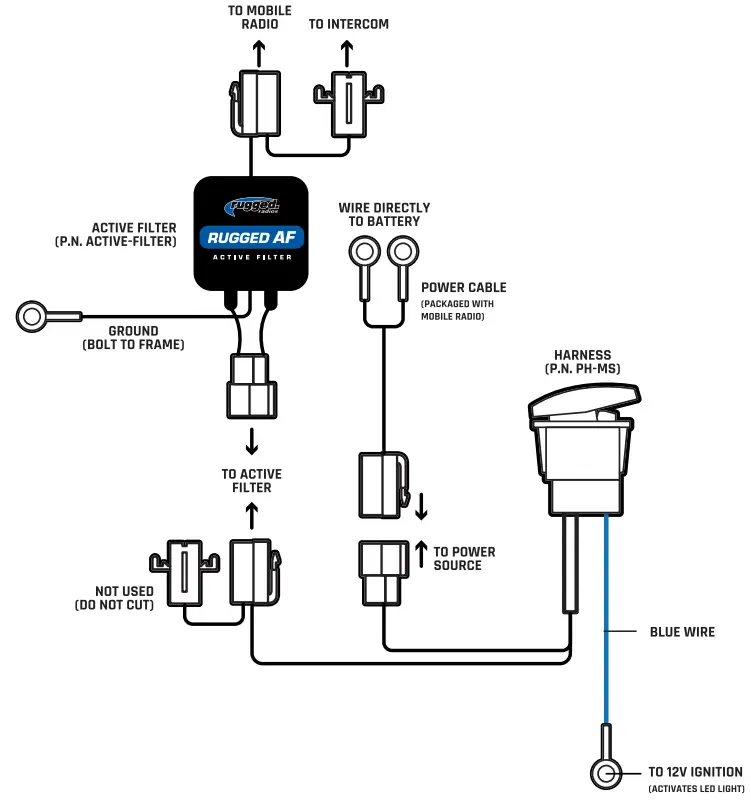

This guide will explain how to connect your Rugged Intercom and Mobile Radio inline with our Active Filter and Radio/Intercom Harness with Rocker Switch.
Active Filter (P.N. ACTIVE-FILTER)
Radio & Intercom Harness with Rocker Switch (P.N. PH-MS and PH-MS-WP)
NOTE: Cables and connections are not to scale.
RUGGEDRADIOS.COM
RADIO/INTERCOM HARNESS W/ ROCKER SWITCH V.30
