Isma Controlli Sfar-s-6ro 6 Relay Outputs Expansion Module User Manual

iSMA CONTROLLI SfAR-S-6RO 6 Relay Outputs Expansion Module User Manual

Introduction

Thank you for choosing our product.
This manual will help you with proper handling and operating of the device. The information included in this manual have been prepared with utmost care by our professionals and serve as a description of the product without incurring any liability for the purposes of commercial law. This information does not discharge you from the liability of your own judgement and verification. We reserve the right to change product specifications without notice.
Please read the instructions carefully and follow the recommendations concluded therein.

WARNING!
Failure to follow instructions can result in equipment damage or impede the use of the hardware or software.

Revision History

Safety Rules

• Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on.
• Before wiring or removing/mounting the product, make sure to turn the power off.
• Failure to do so might cause an electric shock.
• Do not touch electrically charged parts such as power terminals. Doing so might cause an electric shock.
• Do not disassemble the product. Doing so might cause an electric shock or faulty operation.
• Use the product only within the operating ranges recommended in the specification (temperature, humidity, voltage, shock, mounting direction, atmosphere, etc.). Failure to do so might cause a fire or faulty operation.
• Firmly tighten the wires to the terminal. Failure to do so might cause a fire.
• Avoid installing the product in close proximity to high-power electrical devices and cables, inductive loads, and switching devices. Proximity of such objects may cause an uncontrolled interference, resulting in an instable operation of the product.
• Proper arrangement of the power and signal cabling affects the operation of the entire control system. Avoid laying the power and signal wiring in parallel cable trays. It can cause interferences in monitored and control signals.
• It is recommended to power controllers/modules with AC/DC power suppliers. They provide better and more stable insulation for devices compared to AC/AC transformer systems, which transmit disturbances and transient phenomena like surges and bursts to devices. They also isolate products from inductive phenomena from other transformers and loads.
• Power supply systems for the product should be protected by external devices limiting overvoltage and effects of lightning discharges.
• Avoid powering the product and its controlled/monitored devices, especially high power and inductive loads, from a single power source. Powering devices from a single power source causes a risk of introducing disturbances from the loads to the control devices.
• If an AC/AC transformer is used to supply control devices, it is strongly recommended to use a maximum 100 VA Class 2 transformer to avoid unwanted inductive effects,which are dangerous for devices.
• Long monitoring and control lines may cause loops in connection with the shared power supply, causing disturbances in the operation of devices, including external communication. It is recommended to use galvanic separators.
• To protect signal and communication lines against external electromagnetic interferences, use properly grounded shielded cables and ferrite beads.
• Switching the digital output relays of large (exceeding specification) inductive loads can cause interference pulses to the electronics installed inside the product. Therefore, it is recommended to use external relays/contactors, etc. to switch such loads. The use of controllers with triac outputs also limits similar overvoltage phenomena.
• Many cases of disturbances and overvoltage in control systems are generated by switched, inductive loads supplied by alternating mains voltage (AC 120/230 V). If they do not have appropriate built-in noise reduction circuits, it is recommended to use external circuits such as snubbers, varistors, or protection diodes to limit these effects.

Module Features

Purpose and Description of the Module

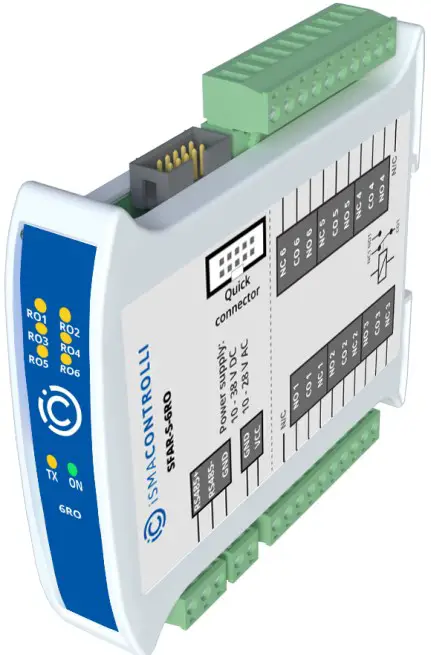

The SfAR-S-6RO module is an innovative device that provides a simple and cost effective extension of the number of lines of output with high current-carrying capacity.
The module has 6 relay outputs. Each relay has three terminals: common (COM), normally open (NO), or normally closed (NC), which makes the unit very flexible.
This module is connected to the RS485 bus with a twisted-pair wire. Communication is via
Modbus RTU or Modbus ASCII. The use of 32-bit ARM core processor provides fast processing and quick communication. The baud rate is configurable from 2400 to 115200.
The module is designed for mounting on a DIN rail in accordance with DIN EN 5002.
The module is equipped with a set of LEDs to indicate the status of inputs and outputs, power supply, and communication, which is useful for diagnostic purposes and helping to find errors.
Module configuration is done via USB by using a dedicated computer program. It also allows for changing the parameters using the Modbus protocol or setting the Modbus address using the DIP switches under the front panel.

Technical Specification

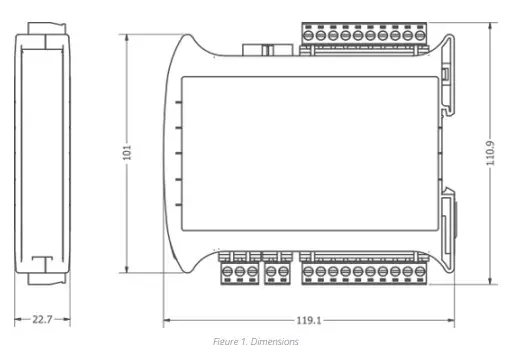

Dimensions
The appearance and dimensions of the module are shown below. The module is mounted directly to the rail in the DIN industry standard. Power connectors, communication, and I/Os are at the bottom and top of the module. USB connector configuration and indicators are located on the front of the module.

Communication

Grounding and Shielding
In most cases, I/O modules will be installed in an enclosure along with other devices, which generate electromagnetic radiation. Relays, contactors, transformers, motor controllers, etc. are examples of such devices. Radiation can induce electrical noise into both power and signal lines, as well as direct radiation into the module. Whether or not the SfAR modules are immune to such effects, the interferences must be suppressed at their source if possible to ensure the proper functioning of the entire system.
Appropriate grounding, shielding and other protective steps should be taken at the installation stage to prevent these effects. It is recommended to at least follow the rules below:

• line power cables must be routed with spatial separation from signal and data transmission cables;
• analog and digital signal cables should also be separated;
• it is recommended to use shielded cables for analog signals, cable shields should not be interrupted by intermediate terminals;
• the shielding should be earthed directly after the cable enters the cabinet.
  It is recommended to install interference suppressors when switching inductive loads (e.g., coils of contactors, relays, solenoid valves). RC snubbers or varistors are suitable for AC voltage and freewheeling diodes for DC voltage loads. The suppressing elements must be connected as close to the coil as possible.

Network Termination
Transmission line effects often represent the problem of data communication networks. These problems include reflections and signal attenuation. To eliminate the presence of reflections at the end of the cable, the cable must be terminated at both ends with a resistor across the line adequate to its characteristic impedance. Both ends must be terminated since the direction of propagation is bidirectional. In case of RS485 twisted pair cable, this termination is typically 120 Ω.

Setting Module Address in RS485 Modbus Network
The following table shows how to set DIP switch to determine the address of the module. The module address is set with the switches in the range of 0 to 31. Addresses from 32 to 255 can be set via RS485 or USB and using dedicated software tool.

Setting module address in RS485 Modbus network using DIP switch

Types of Modbus Functions
There are 4 types of Modbus functions supported by the SfAR modules:

Communication Settings
The data stored in the module’s memory is given in the 16-bit registers. The access to registers is via Modbus RTU or Modbus ASCII.

Default Settings
The default configuration can be restored with the DIP switch SW6.

Restore Default Configuration
To restore the default configuration, follow the steps below:

• turn the power off;
• turn the DIP switch SW6 on;
• turn the power on;
• when power and communication LED is lit, turn the switch SW6 off.

WARNING! After restoring the default configuration all values stored in the registers will be cleared as well.

Configuration Registers

Watchdog
This 16-bits register specifies the time in milliseconds to watchdog reset. If the module does not receive any valid message within this time, all digital and analog outputs will be set to the default state. This feature is useful if there is an interruption in data transmission and for security reasons. Output states must be set to the appropriate state in order to reassure the safety of persons or property. The default value is 0 milliseconds, which means the watchdog function is disabled.

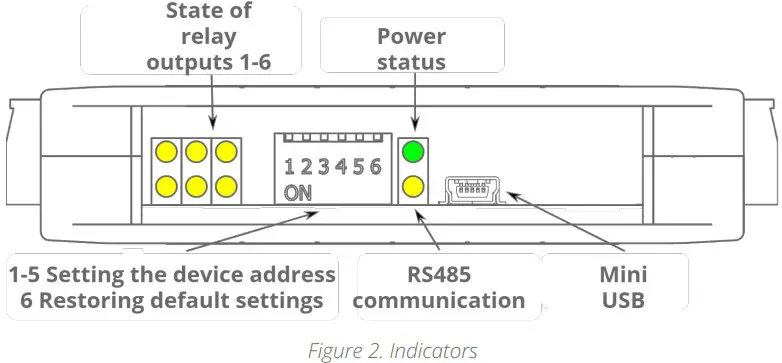

Indicators

Connections

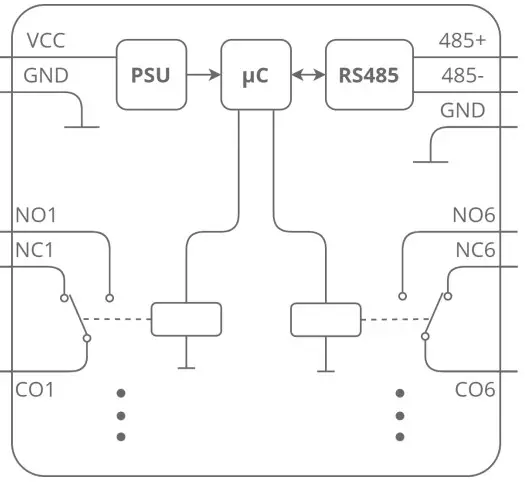

Block Diagram

Power Supply Connection

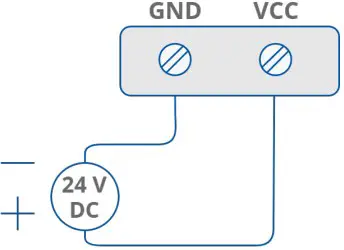

DC Power Connection

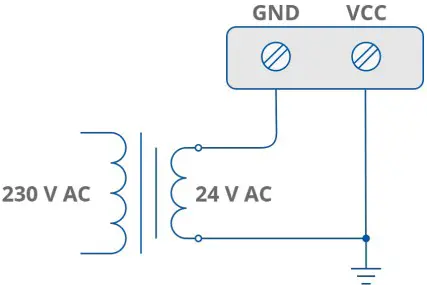

AC Power Connection

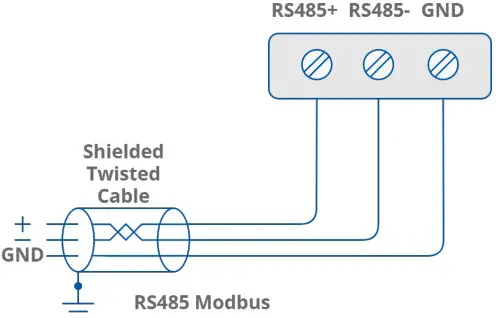

Communication Bus Connection

Connection of Relay Outputs

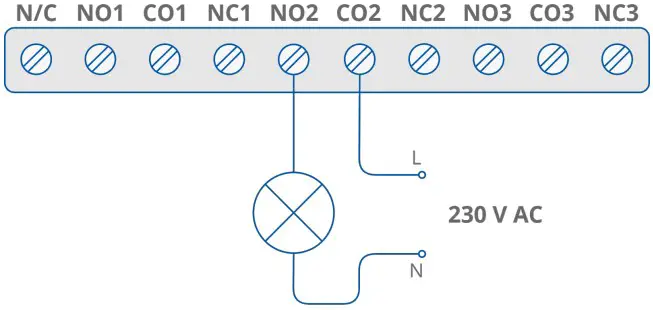

Connection of Resistive Load

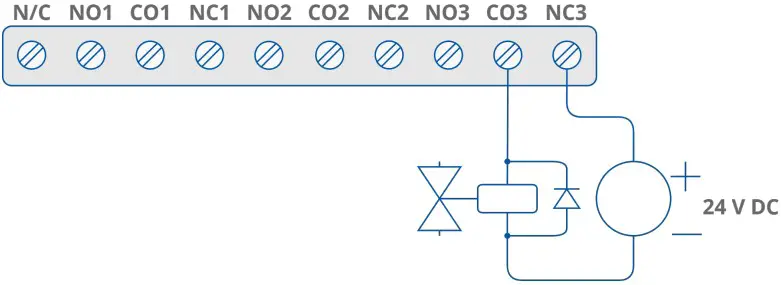

Connection of Electrovalve

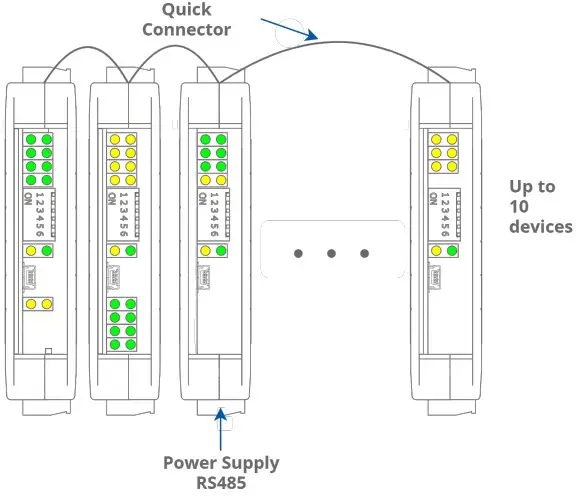

Quick Connector
The Quick Connector is an unique feature of modules that allows for quickly connecting a group of devices with a flat ribbon cable.
Thanks to this solution, it is enough to connect the power supply and RS485
communication to one of the devices in the group, and the others will be powered and communicated with ribbon cable.
The Quick Connector is sufficient to connect up to 10 devices next to each other. It is important that the various types of modules in the SfAR-S family can be connected with the ribbon cable.

DIP Switch

Module Registers

Registered Access

Bit Access

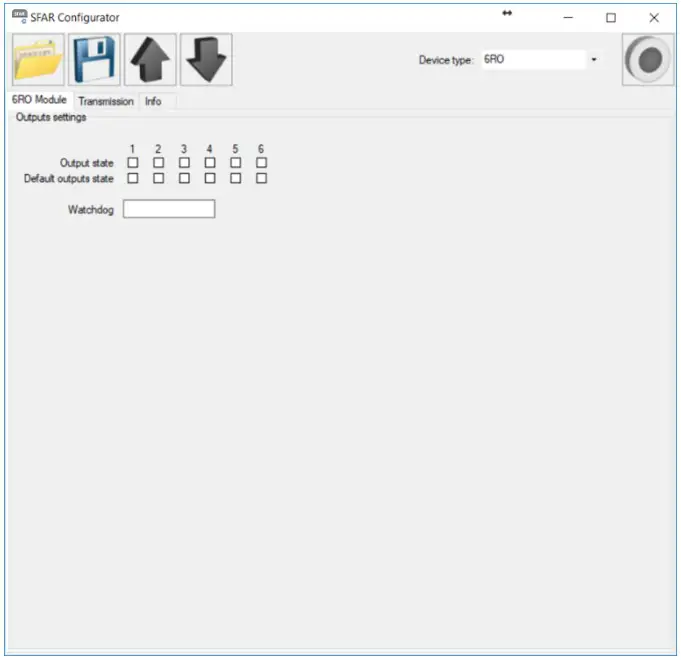

Configuration Software

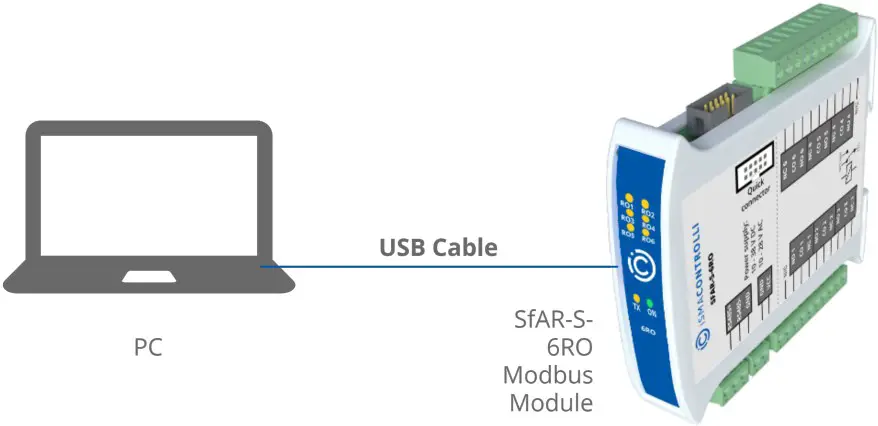

The SfAR Configurator is a software which is designed to set the communication module registers over Modbus network as well as to read and write the current value of other registers of the module. It is a convenient way to test the system as well as to observe real-time changes in the registers. Communication with the module is done via a USB cable. The module does not require any drivers.

The SfAR Configurator is a universal software, where it is possible to configure all available modules.

References

• iSMA CONTROLLI S.p.A.
