Lenovo ThinkPad®  T590 Setup Guide

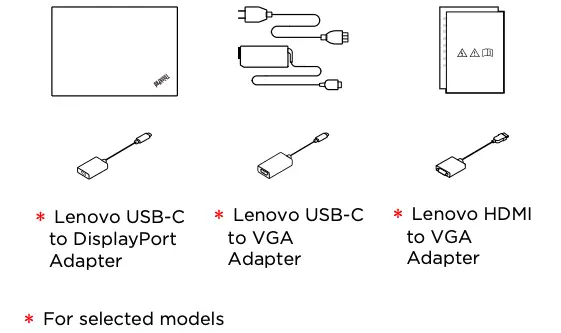

Unpack

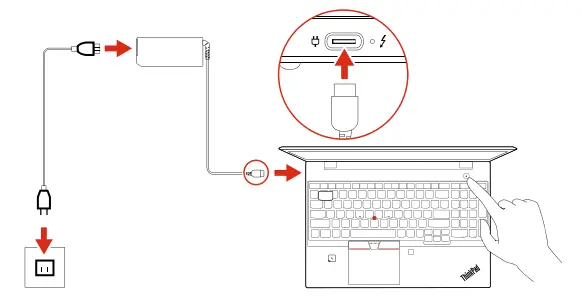

Initial Setup

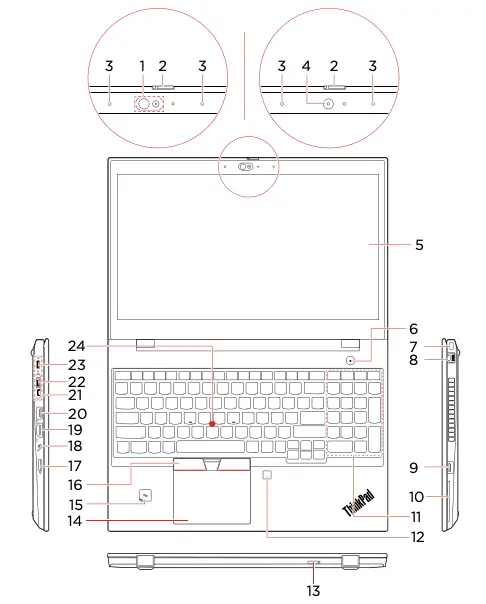

Overview

*1. Infrared camera
*2. ThinkShutter
3. Microphones
*4. Camera
*5. Multi-touch screen
6. Power button
7. Security-lock slot
8. Ethernet connector
9. Always On USB 3.1 connector Gen 1
*10. Smart card slot
11. Numeric keypad
*12. Fingerprint reader
*13. Nano-SIM-card slot
14. Trackpad
*15. NFC label
16. TrackPoint® buttons
17. microSD card slot
18. Audio connector
19. HDMITM connector
20. USB 3.1 connector Gen 1
21. Docking-station connector
22. ThunderboltTM 3 connector (USB-C)
23. USB-CTM connector (USB 3.1 Gen 1)
24. TrackPoint pointing stick

* For selected models

Additional information

European Union — compliance with the Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type ThinkPad T590 is in compliance with Directive 2014/53/EU.

The full text of the system EU declaration of conformity and the EU wireless module declarations are available at the following Internet addresses:

• For notebook computers:
  https://www.lenovo.com/eu-doc-notebooks
• For tablets:
  https://www.lenovo.com/eu-doc-tablets

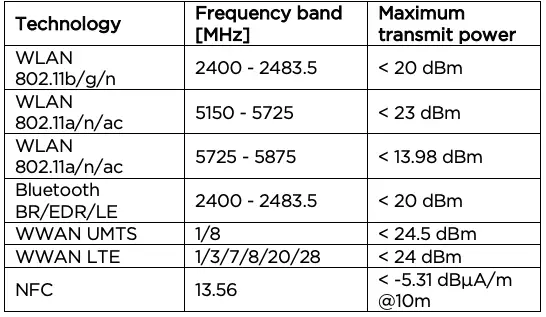

This radio equipment operates with the following frequency bands and maximum radio-frequency power:

E-manual

First Edition (March 2019)
© Copyright Lenovo 2019.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Reduce | Reuse | Recycle

Printed in China PN:
