Lenovo ThinkPad T14 Gen1

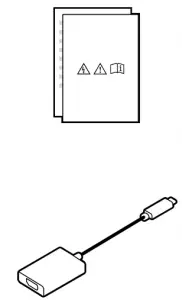

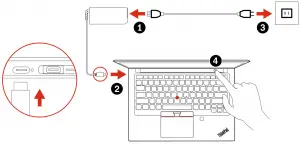

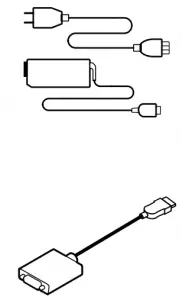

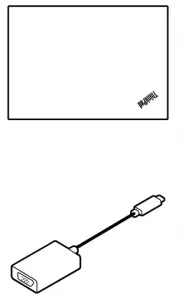

Initial Setup
* Lenovo USB-C to VGA Adapter
* Lenovo HDMI to VGA Adapter
* Lenovo USB-C to DisplayPort Adapter

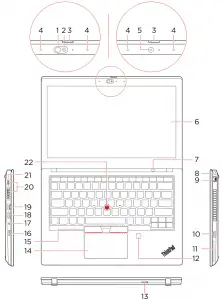

Overview
- Infrared LED
- Camera with IR function
- ThinkShutter
- Microphones
- Camera
- Multi-touch screen
- Power button
- Security-lock slot
- Ethernet connector
- Always On USB 3.2 connector Gen 1
- Smart-card slot
- Fingerprint reader
- Nano-SIM-card slot
- TrackPad
- TrackPoint® buttons
- microSD card slot
- Audio connector
- HDMITM connector
- USB 3.2 connector Gen 1
- USB-C™ (3.2 Gen 2) connectors
- Docking-station connector
- TrackPoint pointing stick
Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.
Customer Replaceable Units (CRUs)
- ac power adapter
- Base cover assembly
- Coin-cell battery
- Keyboard
- Nano-SIM-card tray
- M.2 solid-state drive
- M.2 solid-state drive bracket
- Memory module
- Power cord
- Speaker assembly
- Wireless WAN card
- Always On USB 3.2 connector Gen 1 board
- Always On USB 3.2 connector Gen 1 board bracket
Refer to the User Guide for CRU definition.
Additional information
European Union — compliance with the Radio Equipment Directive Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type ThinkPad T14 Gen 1 is in compliance with Directive 2014/53/EU.
The full text of the system EU declaration of conformity is available at the following Internet address:
https://www.lenovo.com/us/en/compliance/eudoc This radio equipment operates with the following frequency bands and maximum radio-frequency power
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
| WWAN UMTS | 1/8 | < 24.5 dBm |
| WWAN LTE | 1/3/7/8/20/28 | < 24 dBm |
Usage of all the radio devices is limited to indoor in the band 5150 MHz to 5350 MHz (channels 36, 40, 44, 48, 52, 56, 60, 64).
First Edition (April 2020)
© Copyright Lenovo 2020.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
Reduce I Reuse I Recycle
