L14 Gen1/ L15 Gen 1
Setup Guide
For Barcode Position Only
Printed in China
PN: SPXXXXXXXX

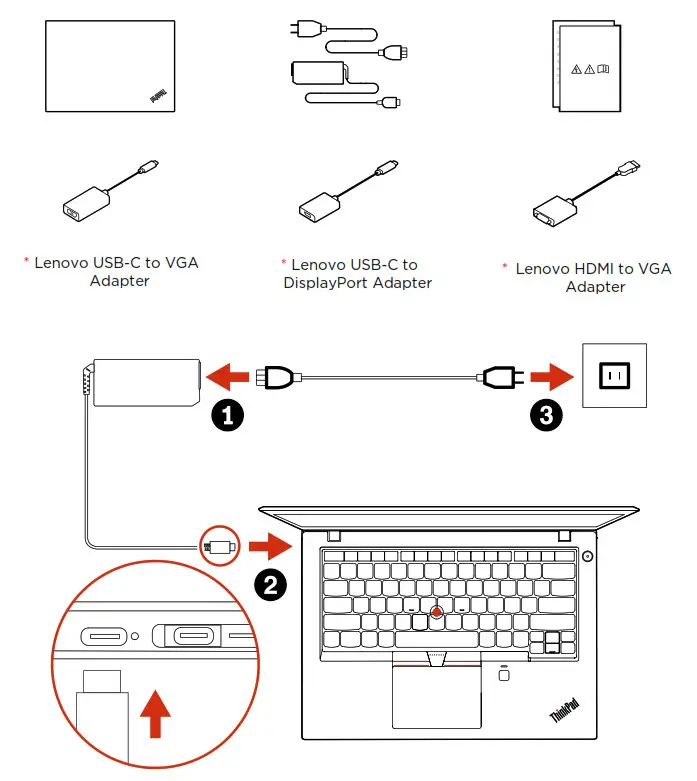

Initial Setup
* For selected models I For visse modeller I Tietyissä malleissa I Utvalgte modeller I Vissa modeller

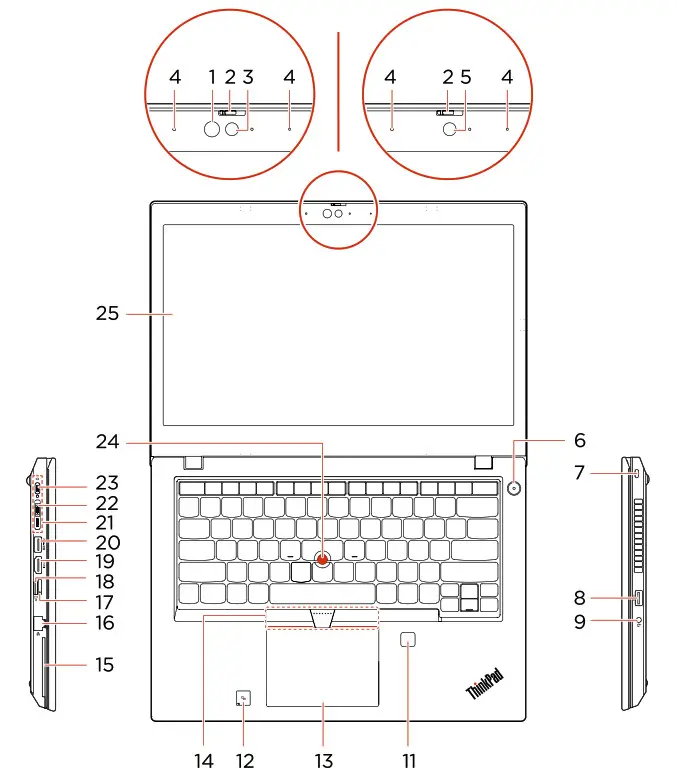

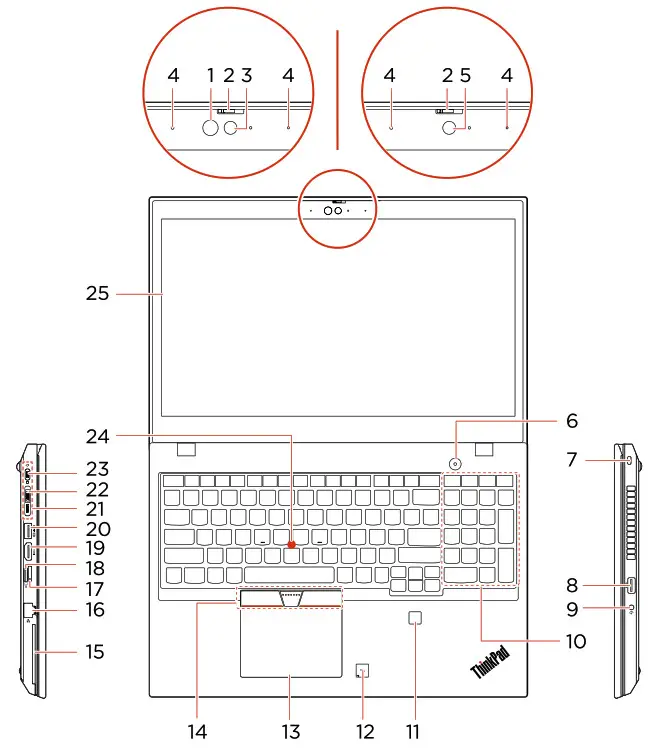

Overview
L14 Gen 1
L15 Gen 1
* 1. Infrared LED
* 2. ThinkShutter
* 3. Camera with IR function
4. Microphones
* 5. Camera
6. Power button
7. Security-lock slot
8. USB 3.2 connector Gen 1
9. Audio connector
10. Numeric keypad
* 11. Fingerprint reader
* 12. NFC label
13. Trackpad
14. TrackPoint® buttons
* 15. Smart-card slot
16. Ethernet connector
* 17. Nano-SIM-card slot
18. microSD-card slot
19. HDMI™ connector
20. Always On USB 3.2 connector Gen 1 21. Docking-station connector
22. USB-C™ (3.2 Gen 2) connector
23. USB-C (3.2 Gen 1) connector
24. TrackPoint pointing stick
* 25. Multi-touch screen
Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.
Customer Replaceable Units (CRUs)
• ac power adapter
• Base cover assembly
* • Hard disk drive assembly
* • Hard disk drive cable
• Keyboard
• Memory module
* • M.2 solid-state drive
* • Nano-SIM-card tray
• Power cord
* • USB and audio board
* • Wireless WAN card
Refer to the User Guide for CRU definition.
Additional information
European Union — compliance with the Radio Equipment Directive
Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type ThinkPad L14 Gen 1 / L15 Gen 1 is in compliance with Directive 2014/53/EU. The full text of the system EU declaration of conformity is available at the following Internet address: https://www.lenovo.com/us/en/compliance/eudoc
This radio equipment operates with the following frequency bands and maximum radio-frequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
| WWAN UMTS | 1/8 | < 24.5 dBm |
| WWAN LTE | 1/3/7/8/20/28 | < 24 dBm |
| NFC | 14. | < -5.31 dBaA/m ctlOm |
Usage of all the radio devices is limited to indoor in the band 5150 MHz to 5350 MHz (channels 36, 40, 44, 48, 52, 56, 60, 64).
E-manual
https://support.lenovo.com/docs/thinkpad_l14_l15_gen1
First Edition (May 2020)
© Copyright Lenovo 2020.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
Reduce I Reuse I Recycle
