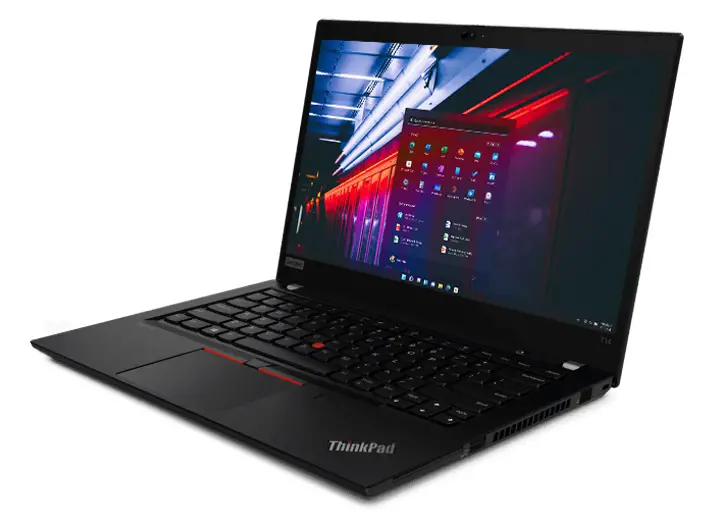

Lenovo 20UD005FIX ThinkPad T14 Powerful 14″ laptop
Initial Setup
|
|
|

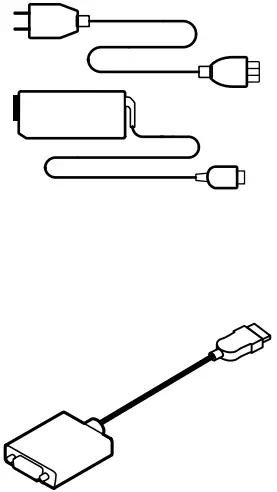

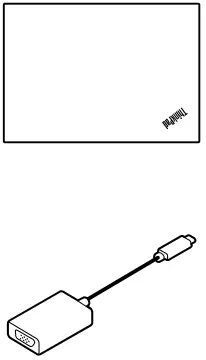

Lenovo USB-C to VGA Adapter
Lenovo HDMI to VGA Adapter

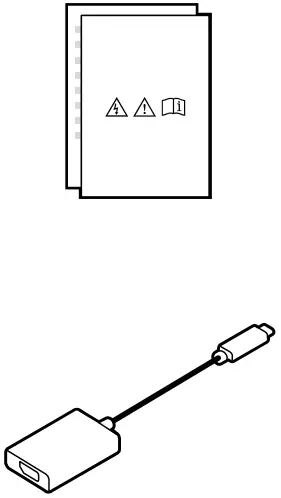

Lenovo USB-C to DisplayPort Adapter

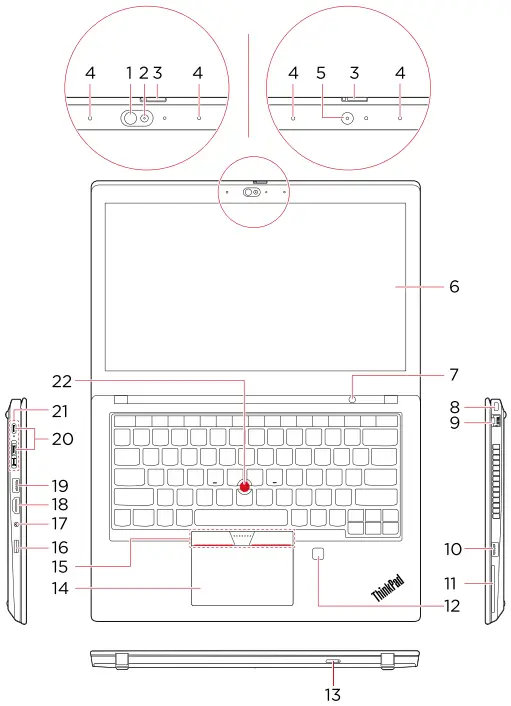

Overview
- Infrared LED
- Camera with IR function
- ThinkShutter
- Microphones
- Camera
- Multi-touch screen
- Power button
- Security-lock slot
- Ethernet connector
- Always On USB 3.2 connector Gen 1
- Smart-card slo
- Fingerprint reader
- Nano-SIM-card slot
- TrackPad
- TrackPoint® buttons
- microSD card slot
- Audio connector
- HDMITM connector
- USB 3.2 connector Gen 1
- USB-CTM (3.2 Gen 2) connectors
- Docking-station connector
- TrackPoint pointing stick
Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.
Additional information
European Union (EU) / United Kingdom
(UK) — Radio Equipment Compliance
Hereby, Lenovo declares that the radio equipment type ThinkPad T14 Gen 1 / ThinkPad P14s Gen 1 is in compliance with Directive 2014/53/EU, as well as UK Radio Equipment Regulations SI 2017 No. 1206.
The full texts of the system declarations of conformity are available at:
https://www.lenovo.com/us/en/compliance/eudoc for EU and
https://www.lenovo.com/us/en/compliance/ukdoc for UK
This radio equipment operates with the following frequency bands and maximum radio-frequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
| WWAN UMTS | 1/8 | < 24.5 dBm |
| WWAN LTE | 1/3/7/8/20/28 | < 24 dBm |
Usage of this device is limited to indoor use in the WLAN band 5150 – 5350 MHz.
E-manual
Second Edition (May 2021)
© Copyright Lenovo 2020,2021.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
