Setup Guide
For Barcode position Only
Printed in China

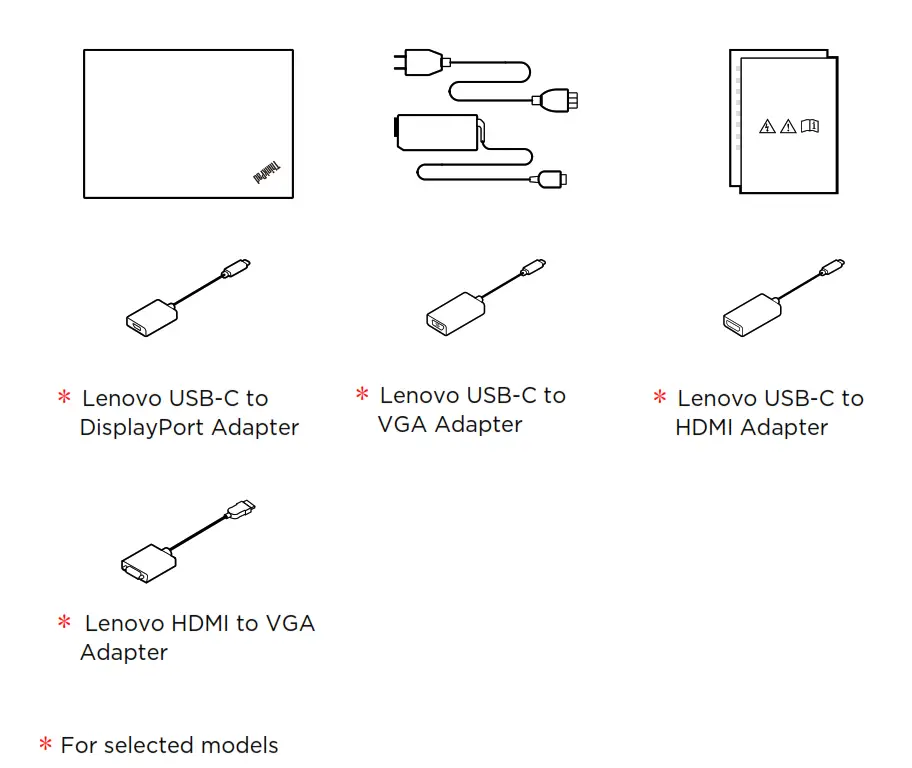

Unpack

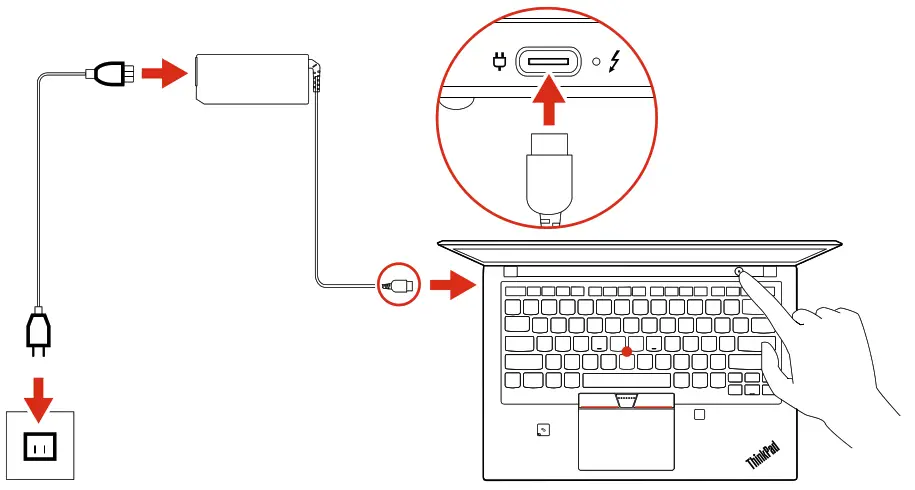

Initial Setup

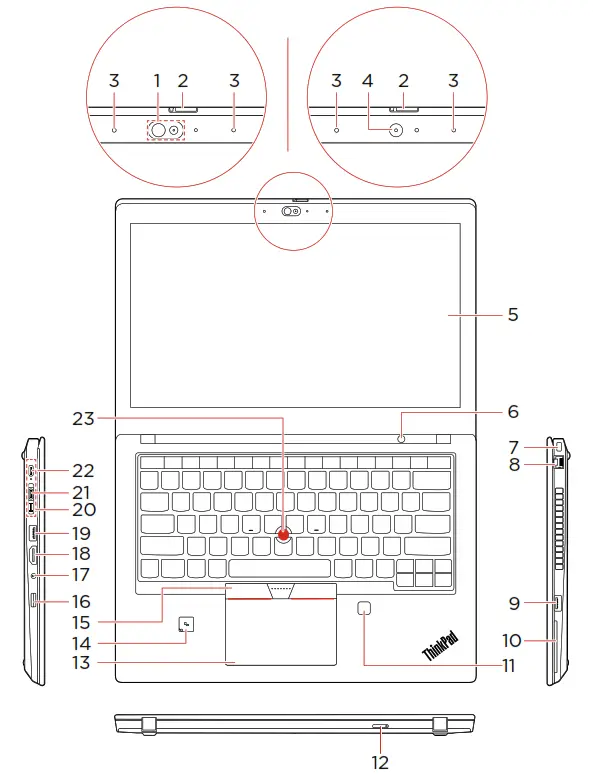

Overview

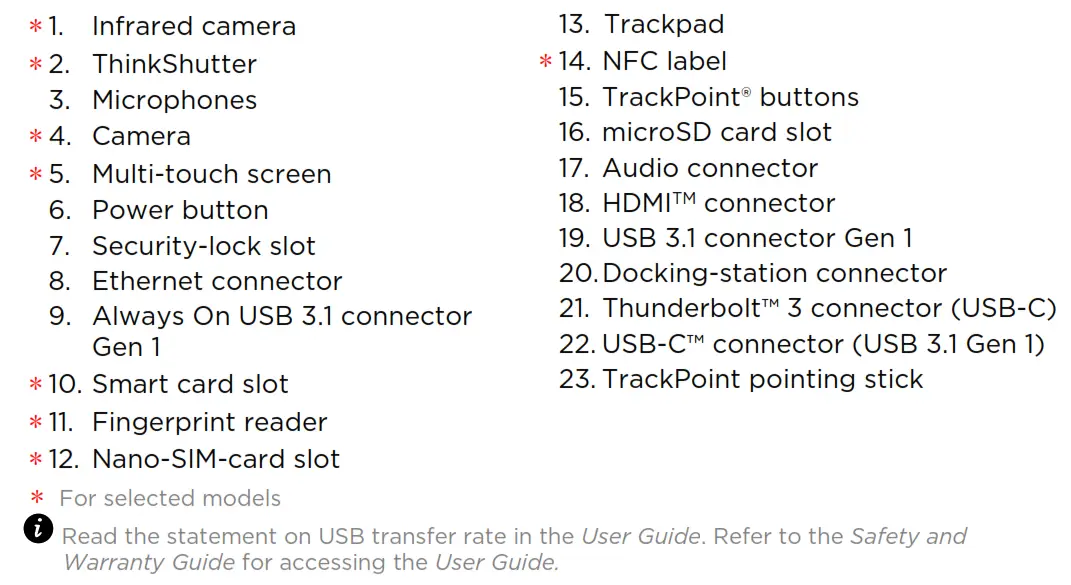

Overview
Customer Replacement Units (CRUs)
- ac power adapter
- Base cover assembly
- Coin-cell battery
- M.2 solid-state drive
- *M.2 solid-state drive bracket
- *Memory module
- * Nano-SIM-card tray
- Power cord
- * Wireless WAN card
- Keyboard
- Speakers
- Always-On USB 3.1 connector Gen 1 board
- Always-On USB 3.1 connector Gen 1 board bracket
* For selected models
Refer to the User Guide for CRU definition.
Additional information
European Union — compliance with the Radio Equipment Directive
Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment types ThinkPad T490/ThinkPad P43s are in compliance with Directive 2014/53/EU.
The full text of the system EU declaration of conformity and the EU wireless module declarations are available at the following Internet addresses:
- For notebook computers: https://www.lenovo.com/eu-doc-notebooks
- For tablets: https://www.lenovo.com/eu-doc-tablets

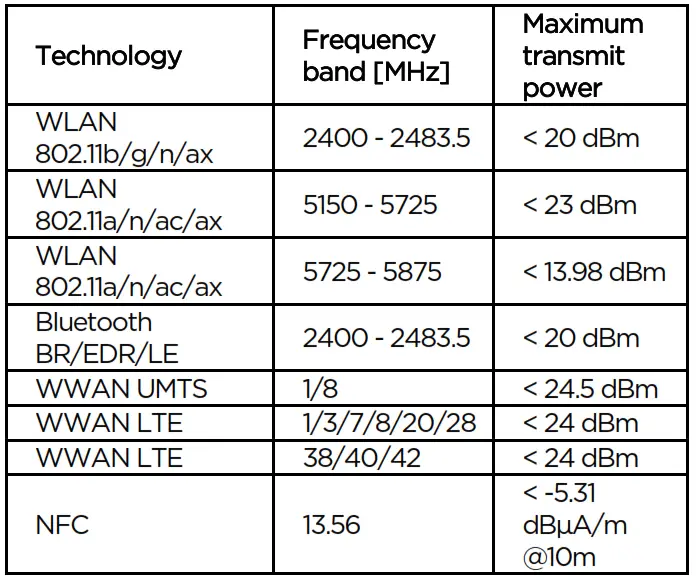

This radio equipment operates with the following frequency bands and maximum radio-frequency power:
E-manual
https://download.lenovo.com/pccbbs/pubs/t490/main_index.html
Second Edition (December 2019)
© Copyright Lenovo 2019.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a
General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to
restrictions set forth in Contract No. GS-35F-05925.
Reduce I Reuse I Recycle
