VM-4H2 Quick Start Guide
This guide helps you install and use your VM-4H2 for the first time.
Go to www.kramerav.com/downloads/VM-4H2 to download the latest user manual and check if the firmware
upgrades are available.
Kramer-USER MANUAL [PDF]
Step 1: Check what’s in the box
✔ VM-4H2 4K HDMI 2.0 1:4 DA
✔ 1 Power supply (5V DC)
✔ 4 Rubber feet
✔ 1 Quick start guide
Step 2: Mount VM-4H2
Install VM-4H2 using one of the following methods:
- Attach the rubber feet and place the unit on a flat surface.

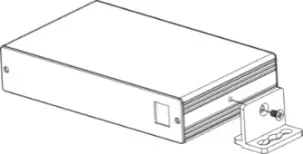

- Fasten a bracket on each side of the unit and attach it to a flat surface (see www.kramerav.com/downloads/VM-4H2).
- Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/VM-4H2).
- Ensure that the environment (e.g., maximum ambient temperature & airflow) is compatible with the device.
- Avoid uneven mechanical loading.
- Appropriate consideration of equipment nameplate ratings should be used for avoiding the overloading of the circuits.
- Reliable earthing of rack-mounted equipment should be maintained.
- The maximum mounting height for the device is 2 meters.

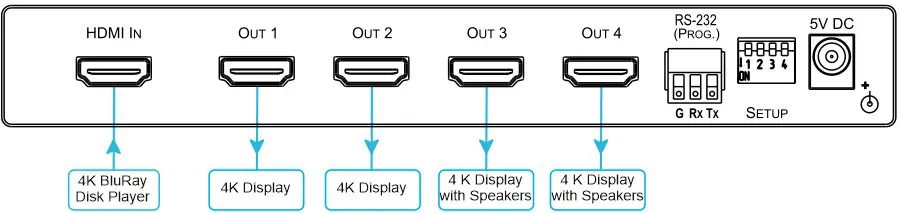

Step 3: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your VM-4H2.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-4H2.
Using third-party cables may cause damage!
Step 4: Connect the power
Connect the power cord to VM-4H2 and plug it into the mains electricity. Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
- For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
- There are no operator serviceable parts inside the unit.
Warning: - Use only the power cord that is supplied with the unit.
- Disconnect the power and unplug the unit from the wall before installing.
Step 5: Set DIP-switches
Set the DIP-switches according to your needs using the following table:
| Programming mode | HDCP Input (MAC mode) | Force RGB | Lock Default EDID | |
| DIP | 1 | 2 | 3 | 4 |
| OFF (up) | Normal mode | HDCP enabled | Force RGB | EDID not locked |
| ON (down) | Enable programming | HDCP disabled | Normal mode | EDID locked |
