Model Number

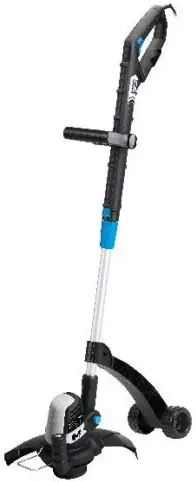

Mac Allister MGTP600
600W Garden Strimmer
Parts Manual

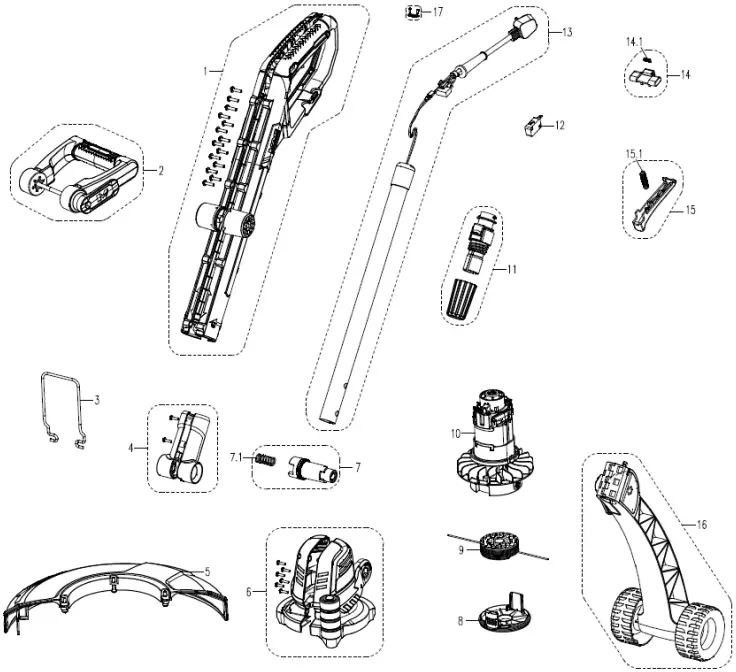

Exploded Diagram
Parts List
| Part ID | Apelson PN | MPN | Part Description | Qty |
| 1 | 121016101 | 121016101 | HANDLE ASSEMBLY | 1 |
| 2 | 121016102 | 121016102 | ASSISTANT HANDLE ASSEMBLY | 1 |
| 3 | 121016106 | 121016106 | FLOWER GUARD | 1 |
| 4 | 121016103 | 121016103 | ROTARY HANDLE | 1 |
| 5 | 121016107 | 121016107 | PROTECTOR GUARD ASSEMBLY | 1 |
| 6 | 121016115 | 121016115 | MOTOR HOUSING ASSEMBLY | 1 |
| 7 | 121016104 | 121016104 | SHAFT LOCK BUTTON ASSEMBLY | 1 |
| 7.1 | 121002110 | 121002110 | COMPRESSION SPRING | 1 |
| 8 | 121007102 | 121007102 | SPOOL COVER | 1 |
| 9 | 121007101 | 121007101 | SPOOL ASSEMBLY | 1 |
| 10 | 121016108 | 121016108 | MOTOR ASSEMBLY | 1 |
| 11 | 121045103 | 121045103 | ROTATION CONTROL ASSEMBLY | 1 |
| 12 | 141004106 | 141004106 | SWITCH | 1 |
| 13 | 121045104 | 121045104 | POWER CORD ASSEMBLY | 1 |
| 14 | 121016116 | 121016116 | SAFE-LOCKING BUTTON ASSEMBLY | 1 |
| 14.1 | 221001102 | 221001102 | COMPRESSION SPRING | 1 |
| 15 | 121016112 | 121016112 | SWITCH BUTTON ASSEMBLY | 1 |
| 15.1 | 121016113 | 121016113 | COMPRESSION SPRING | 1 |
| 16 | 121016114 | 121016114 | WHEEL FRAME ASSEMBLY | 1 |
| 17 | 121045105 | 121045105 | CABLE CLAMP ASSEMBLY | 1 |
