TAIWAN FU HSING A54WG040A5 Touch Screen Electronic Deadbolt

INSTALLATION INSTRUCTION

FOR

Safety Information

Read the precautions and instructions in this manual before installing and using this lock. Save this manual for future reference.

CAUTION
Please use four alkaline batteries for the best performance.

A. Do not attempt to disassemble any internal components of the lockset personally. You will void the limited warranty.
B. Do not drop or hit the lockset. Too much shock may result in permanent damage.
C. Do not use pins or sharp objects to press on the keypad.
D. Always create a backup of information you want to keep (such as the programming code and user codes). Please use the last page of this booklet as your reference.
E. Please change programming code before operating this lockset.

CARE and MAINTENANCE

The following instructions should be followed to properly protect and maintain your lockset:

A. Remove locks, or do not install locks, prior to painting your door.
B. Periodically clean with mild soap and a soft cloth only.
C. Do not use any abrasives or chemical products containing alcohol, benzene, hydrochloric acid or nitric acid, and avoid using sharp or abrasive objects to clean this lockset.
D. Do not let any water or liquid into lockset during installation process.

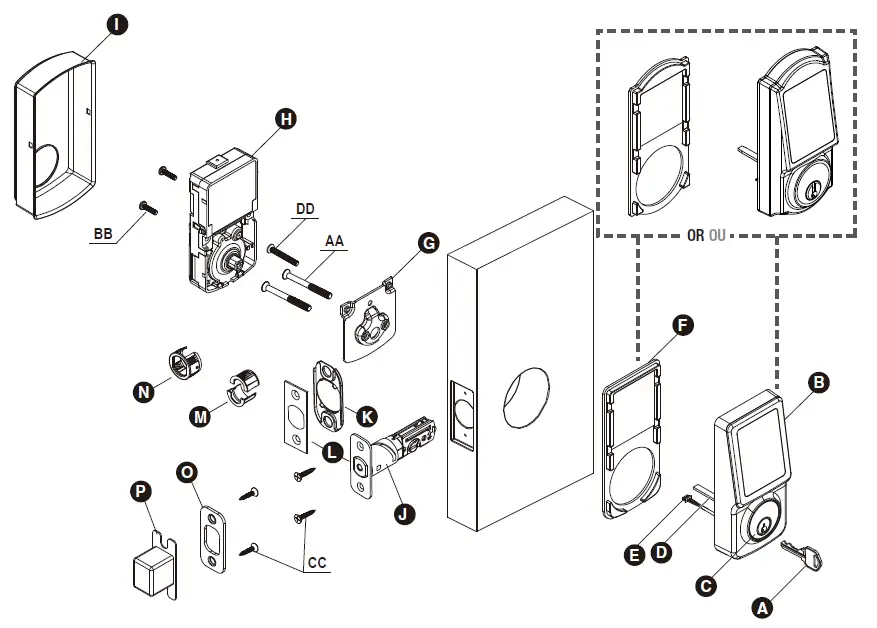

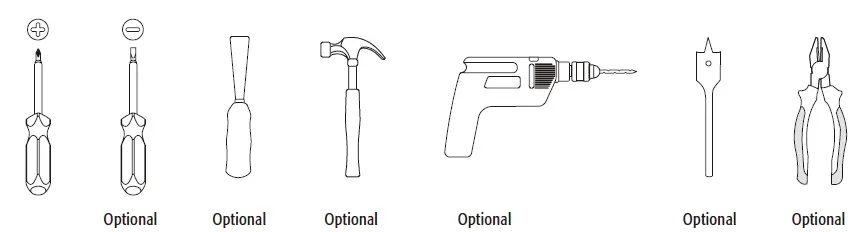

Pre-installation — tools Required / Hardware Included

WARNING

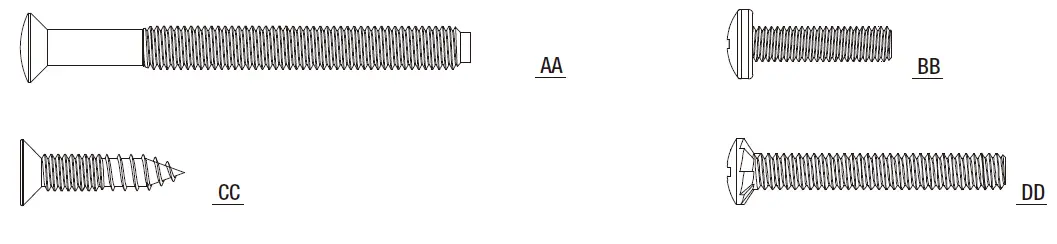

Part	Description	Quantity
A	2″ (52mm) Mounting Bolt	2
B	3/4″ (19 mm) Screw	2
C	3/4″ (19 mm) Wood Screw	4
D	1-1/4″ (32 mm) Screw	1

Part	Description	Quantity
A	Key	2
B	Exterior Assembly	1
C	Cylinder	1
D	Tailpiece	1
E	Power Cable	1
F	Exterior Gasket (Optional)	1
G	Mounting Plate	1
H	Interior Assembly	1
I	Battery Cover	1
J	Latch	1
K	Bottom Plate (Optional)	1
L	Square Or Radius Faceplate (Optional)	1
M	Drive-in Collar (Optional)	1
N	Drive-in Collar (Optional)	1
O	Strike Plate	1
P	Dust Box	1

Pre-installation — Door Preparation

NOTE: If your door is pre-drilled, check the hole sizes to make sure they are the proper size. If they are the proper size, skip to the Installation section.

Using the template, mark the door and drill the holes, and chisel out a mortise.

NOTE: Drill from both sides to avoid wood splitting.

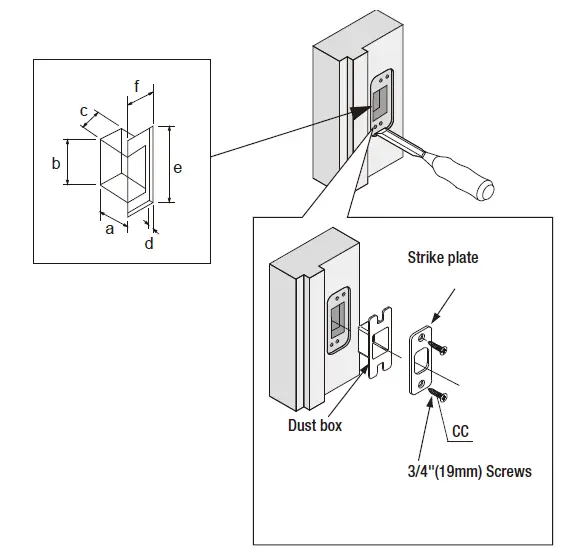

Prepare the door jamb – use the strike plate as a template to drill the latch and screw holes and chisel out the mortise. The
strike plate must fit flush with the surface of the door jamb.

Door jamb hole dimension

1-3/16″(30 mm)
1-9/64″(29 mm)
7/8″(22 mm)

Strike dimensions

5/32″(4 mm)
2-1/4″(57 mm)
1″(25 mm)

TEMPLATE

NOTE: Double check your product for the correct hole sizes.

Installation

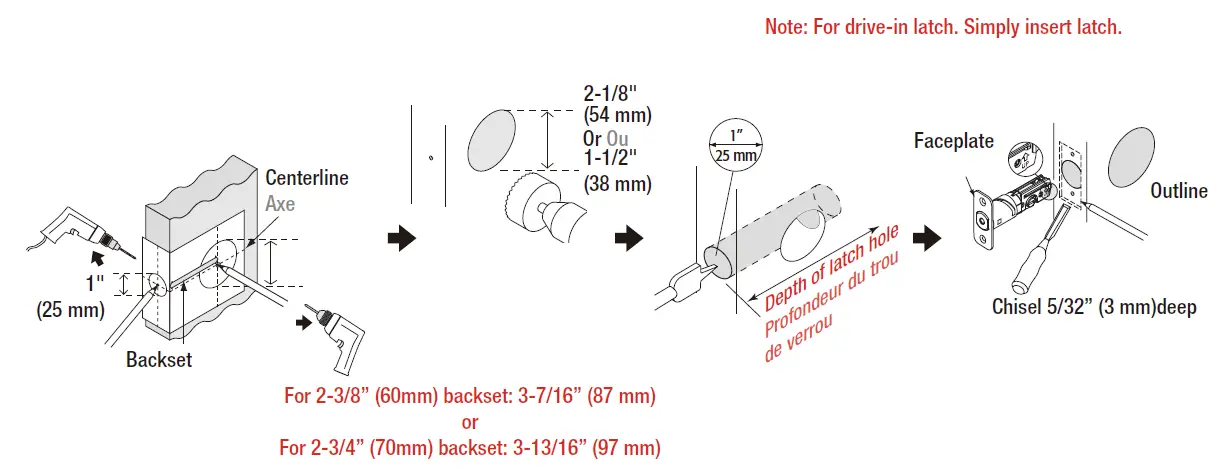

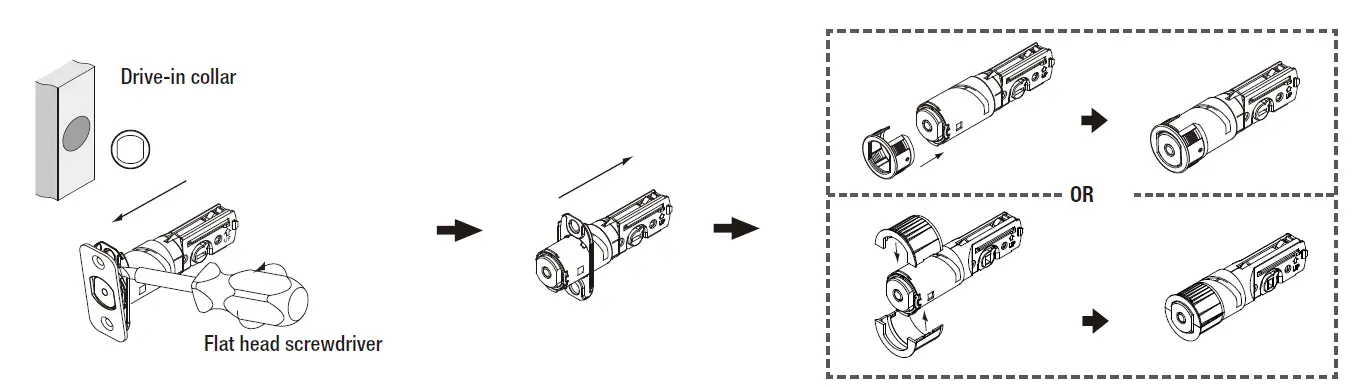

INSTALLING THE LATCH

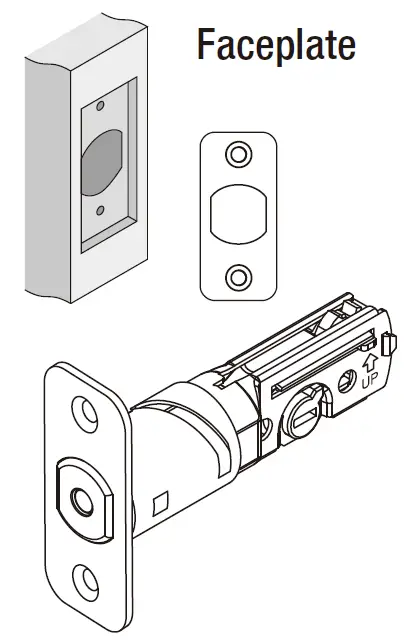

A. Attach the correct faceplate

Edge of door

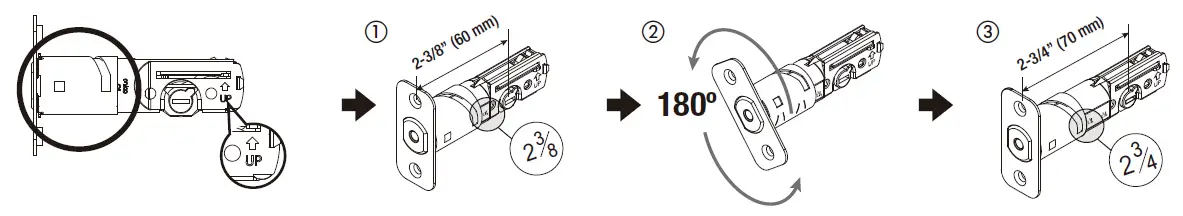

B. Set the latch backset

CAUTION: Be sure the latch cam is upright before making any backset adjustment.

For 2-3/4″ (70mm) backset.

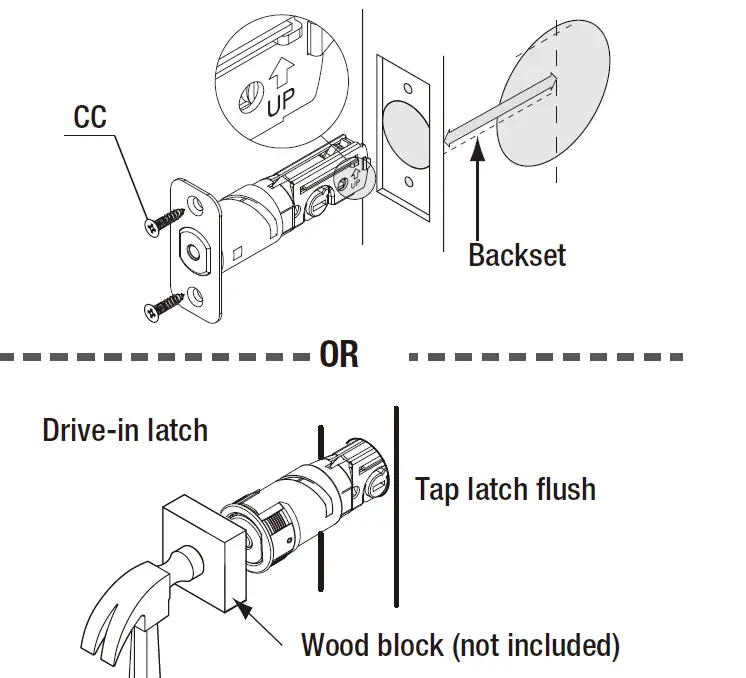

C. Install the latch

INSTALLING THE LOCK ASSEMBLIES

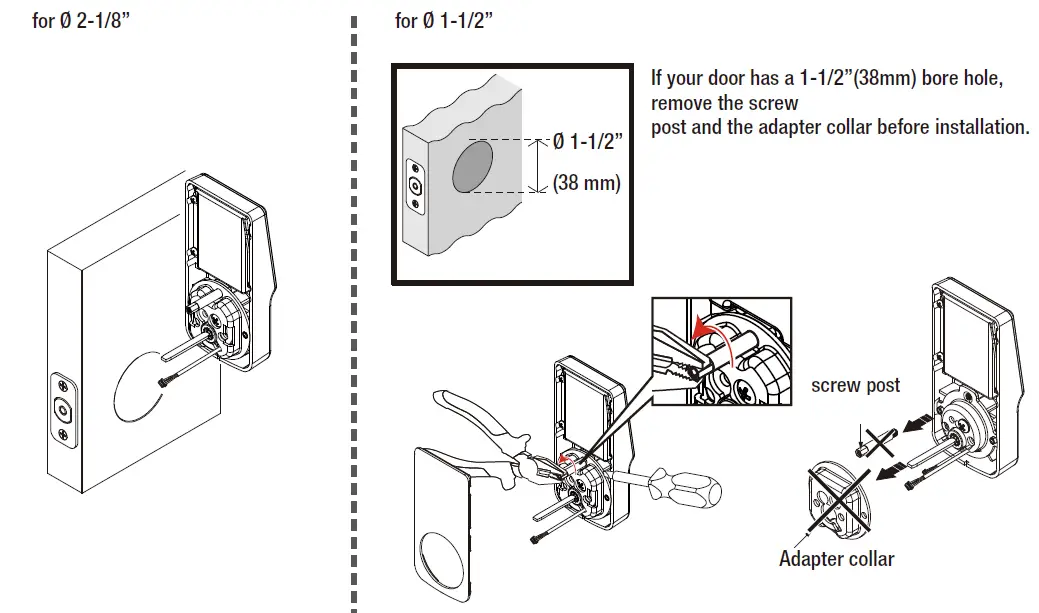

A. Door bore options

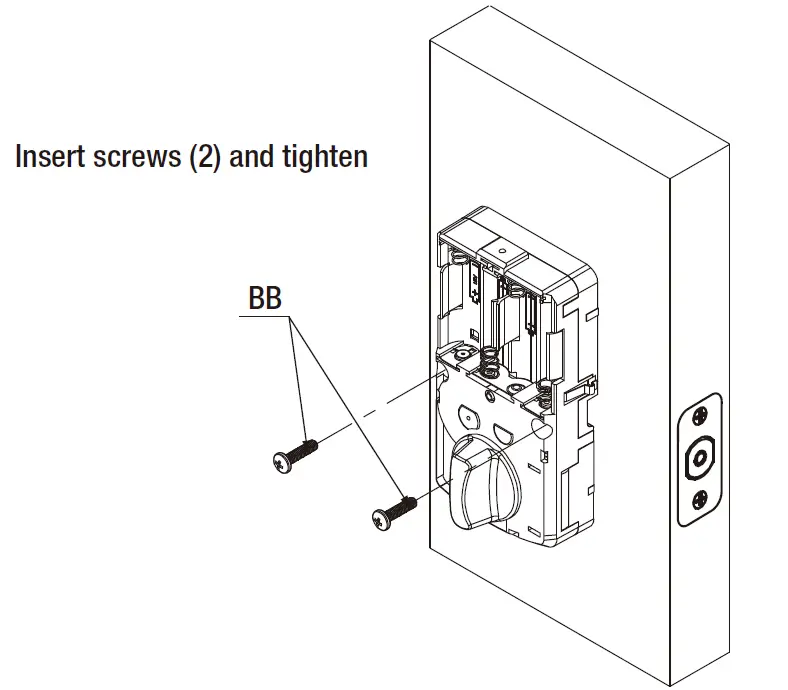

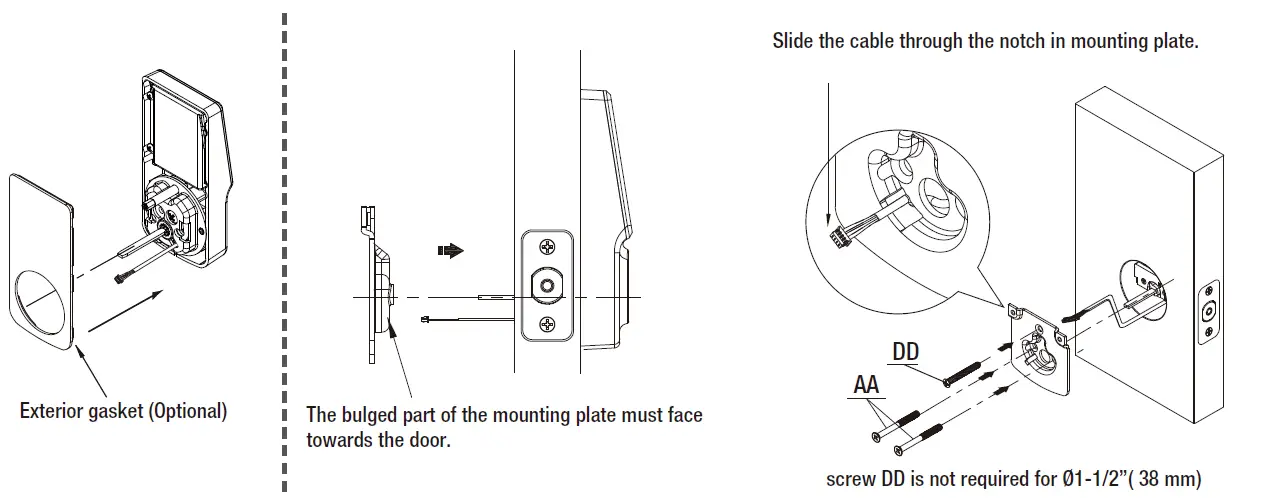

B. Install the lock assemblies

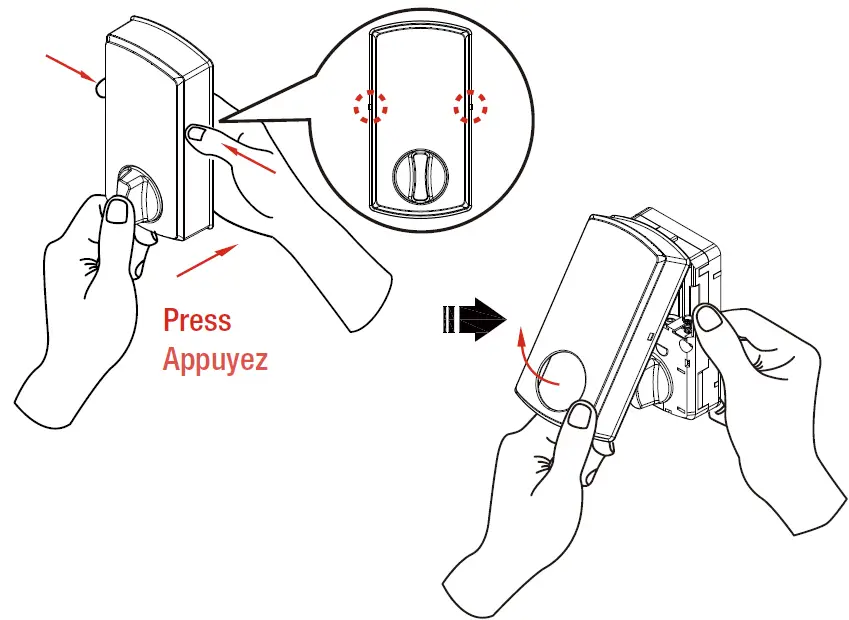

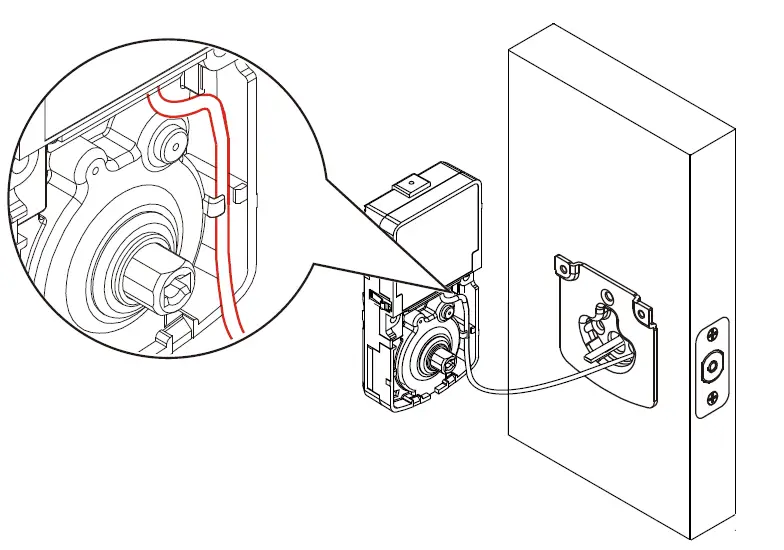

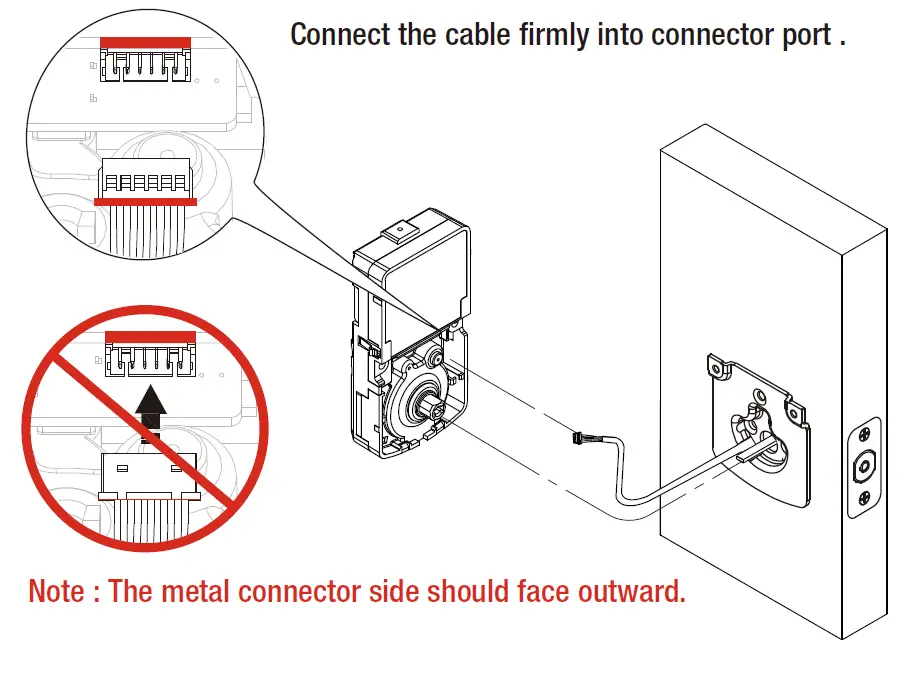

Remove the Battery CoverThe cable must be arranged as shown in the diagram.

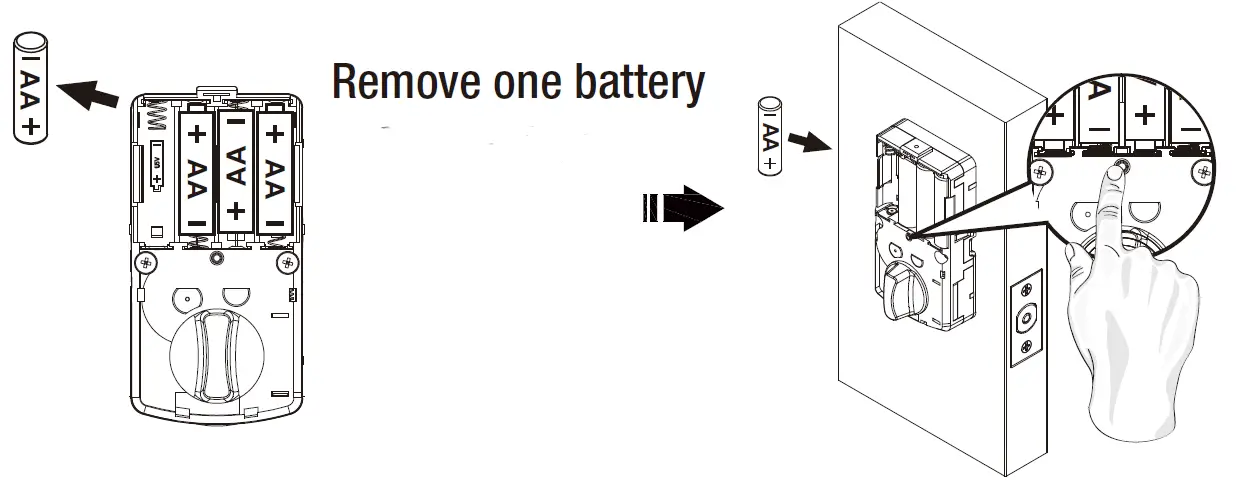

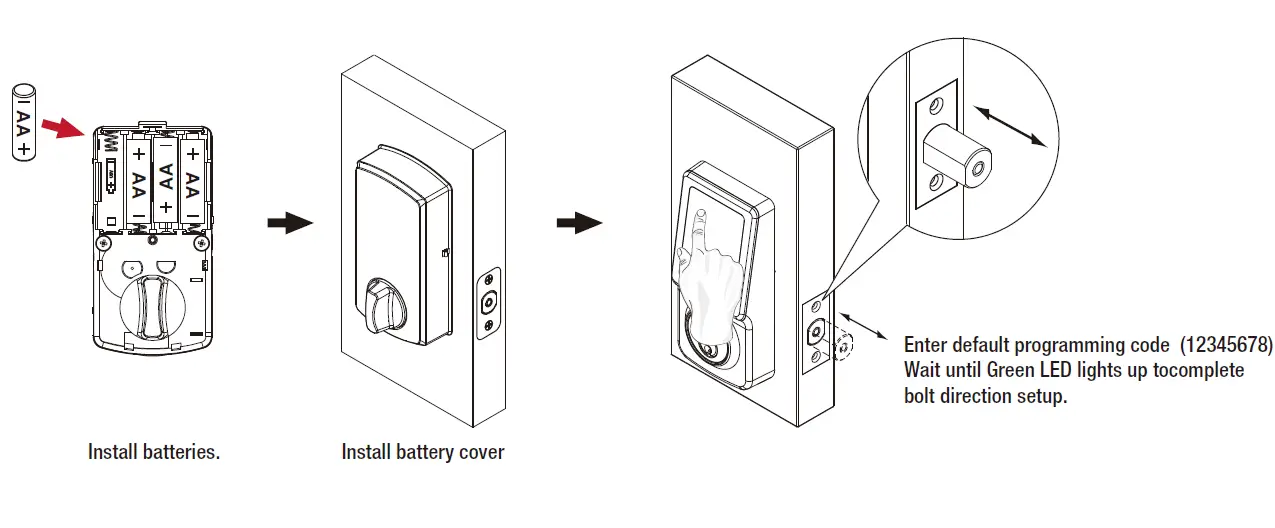

C. Install batteries and perform automatic bolt direction determination.

CAUTION:

Please use four alkaline batteries for better performance.
Please set up the lock and perform bolt direction determination to complete the installation.

NOTE:

The lockset will perform automatic bolt direction determination.
The product is then ready for use when automatic bolt direction determination is completed.

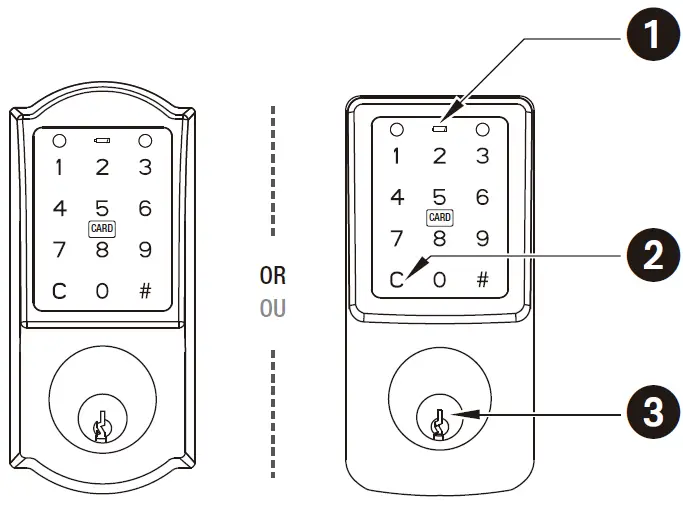

OVERVIEW OF THE LOCKSET

INDICATORS
1. Red light: Represents an incorrect entry or the unit is programming mode.
2. Yellow light: Flashes when the batteries are low in power.
3. Green light: Represents a correct entry.
CLEAR BUTTON
1. Please always press button to cancel any typo or exit programming mode.

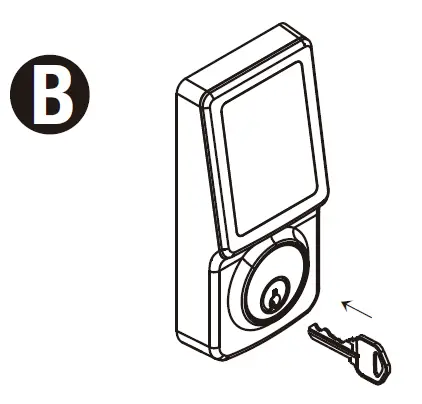

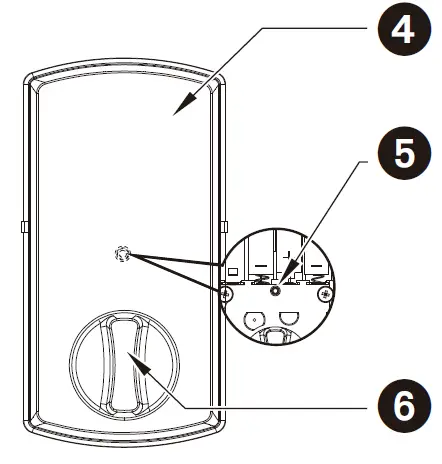

MECHANICAL KEYWAY OVERRIDE
1. To unlock the lockset by a valid key.
BATTERY COVER
1. Protects the batteries from unexpected damage.
[SET] BUTTON
1. Press set button for 1 second to enter programming mode.
2. Please refer to for more information about programming mode.
INTERIOR THUMBTURN
1. Locks or unlocks the lockset manually

HOW TO LOCK / UNLOCK / PROGRAM THE LOCKSET

HOW TO LOCK / UNLOCK THE LOCKSET

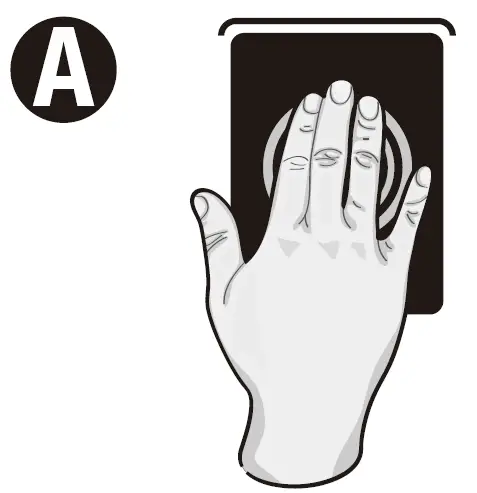

To lock Touch the screen to lock.

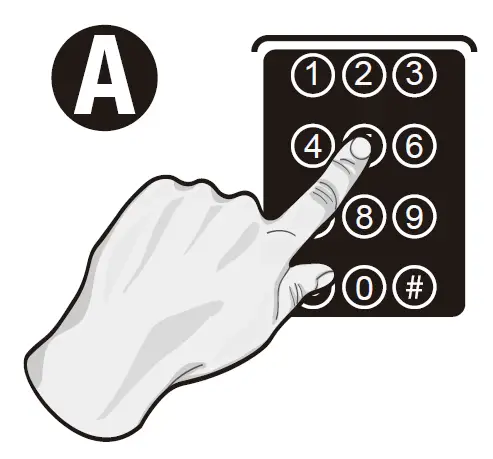

Use a mechanical key to lock. To unlock To unlock, enter valid User Code or Programming Code.

After the screen is activated, enter Guiding Code first if it is on (see 2- 2).

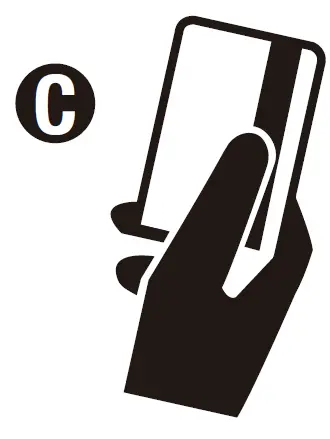

Use a mechanical key to unlock.Use a valid RFID Card to unlock

HOW TO PROGRAM THE LOCKSET

BASIC SETTINGS

Change Programming Code	Programming Code can be used to program or unlock the lockset. The default Programming Code is “12345678”.	Press [SET]	Programming Code (4~8 digits)	#	1	0	#	New Programming Code Same New Programming Code (4~8 digits) (4~8 digits)
Add a User Code(s)	User Code can be used to unlock the lockset. User Code capacity: 25 sets (4-8 digits).	Press [SET]	Programming Code (4~8 digits)	#	2	0	#	New User Code Same New User Code (4-8 digits) (4-8 digits)
Delete individual User Code(s)	Delete individual User Code(s).	Press [SET]	Programming Code (4~8 digits)	#	3	0	#	User Code Same User Code
Delete ALL User Codes	Delete ALL User Codes at once.	Press [SET]	Programming Code (4~8 digits)	#	4	0	#	#
Add User Card	User Card can be used to unlock the lockset. User Card capacity: 25 sets	Press [SET]	Programming Code (4~8 digits)	#	2	3	#	Swipe NEW User Card	Swipe NEW User Card again
Delete individual User Card(s)	Delete individual User Card(s).	Press [SET]	Programming Code (4~8 digits)	#	3	3	#	Swipe User Card	Swipe User Card again
Delete ALL User Cards	Delete ALL User Cards at once.	Press [SET]	Programming Code (4~8 digits)	#	4	1	#	#

ADVANCED SETTINGS

Add Single-use User Code(s)

Single-use User Code can only be used once to unlock the lockset.
Single-use User Code capacity: 4 sets (4 digits).

Press [SET]

Programming Code (4~8 digits)

Single-use User Code (4 digits)

Same Single-use User Code (4 digits)

Add another code

Guiding Code

Guiding Code is a set of random codes to be entered prior to any User Code to prevent code probing by placing finger prints on every button making code discovery more difficult.

Code

Press [SET]

Programming Code (4~8 digits)

Turn On Allumez

# #

Vacation Mode

Vacation mode temporarily disable ALL User Codes.

Press [SET]

Programming Code (4~8 digits)

Turn On

Volume Control

Turn on / off door lock operation volume.
Volume is always on in the programming mode.

Press [SET]

Programming Code (4~8 digits)

Turn On Allumez

Auto-lock

Auto-lock is disabled by default.

Press [SET]

Programming Code (4~8 digits)

Turn On Allumez

Auto-lock Delay Timer

Default Auto-lock Delay Timer : 10 seconds.
Auto-lock Delay Timer range: 10 -99 seconds.

Press [SET]

Programming Code (4~8 digits)

Enter New Amount (10 – 99)

Double Authorization Mode

When the Double Authorization Mode is turned on, both User Code and User Card must be authenticated to unlock the lockset.

Press

Programming Code (4~8 digits)

Turn On Allumez

The lockset will exit the programming mode and resume to the stand-by status if no input is made in 30 seconds.
3 Beeps means something was entered incorrectly. Please redo the step again

RESTORE TO FACTORY SETTINGS

This will erase all stored information, including bolt direction
Please re-enter the default Programming Code to set up the lock after restoring to factory settings.

TROUBLESHOOTING

QUESTIONS	ANSWERS
A. The latch does not operate correctly after installation.	Please reset unit to factory settings and set bolt direction. Make sure prior to installation latch bolt is retracted and key as not in lockset when placing torque blade horizontally through latch.
B. Feel a bump while turning the thumb turn or the key?	Please execute lock & unlock function to allow the motor to reposition itself again. Redo the Automatic Bolt Direction Step.

OPERATION

QUESTIONS	ANSWERS
A. Battery indicator keeps flashing.	The batteries are getting low, please replace with four new batteries for the best performance (alkaline batteries only ).
B. Touch screen not responding.	Check the battery installation. The batteries are getting low if the battery indicator keeps flashing. please replace with four new batteries for the best performance (alkaline batteries only ). Make sure the cable is well-connected to the port, and was not damaged during installation.
C. Programming Code can not be changed.	Please refer to 2 – E) in the user guide to restore factory setting and reprogram all codes.
D. What should I do if wrong code was entered?	Press C button once and continue to input code according to regular procedures.
E. Can not delete all User Codes/cards .	Make sure the whole code entering process is completed within 10 seconds, otherwise the unit will time out. Make sure the Programming Code has been entered correctly.
F. Can not add a new user code/card.	Make sure the whole code entering process is completed within 10 seconds, otherwise the unit will time out. Make sure the Programming Code has been entered correctly. The new User Code / Card will not be accepted when the capacity is full. Try to delete any or some existing User Codes / cards and then add new one(s) again. A User Code must be at least 4 to 8 digits.
G. “Auto lock” does not function.	The batteries are getting low if the battery indicator keeps flashing. please replace with four new batteries for the best performance (alkaline batteries only ).
H. Lockset is not able to unlock by touch screen.	Make sure you have entered the correct User Code. The battery is low if the battery indicator light keeps flashing. Please replace with four new batteries. Check the strike plate to make sure it is properly aligned & clear so the bolt can freely enter the hole.
I. Lockset is unable to reset.	Please refer to 2 – E) in the user guide to restore factory setting. The battery is low if the battery indicator light keeps flashing. Please replace with four new batteries.
J. How to operate the lockset in darkness?	Touch the screen to activate the lockset back light.
K. The red indicator is still on after setting is completed.	Check if [SET] button is jammed. Re-install the batteries.
L. The lockset locks when I enter my code and unlocks when I touch the screen.	Un-install the interior and exterior assemblies. Before re-installation, please follow these guidelines: Make sure the bolt is in the retracted position. Do not have any key in lock cylinder. Make sure the torque blade is inserted horizontally. Reset unit back to factory settings and follow steps for setting bolt direction.

QUESTIONS

ANSWERS

M. I cannot remove my key unless it is in the locked position.

Un-install the interior and exterior assemblies. Before re-installation, please follow these guidelines:
1. Make sure the bolt is in the retracted position.
2. Do not have any key in lock cylinder.
3. Make sure the torque blade is inserted horizontally.

If the lock appears to be damaged or does not operate properly, please contact customer service for further assistance.

DECLARATIONS AND SAFETY STATEMENTS FEDERAL COMMUNICATIONS COMMISSION STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

IC REGULATIONS
This device complies with Industry Canada license-exempt RSS-210 standard. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation of the device.

Access code list
Do not pass your Programming Code to anyone else.
