Fe410f Schlage Control Smart Deadbolt Instruction Manual

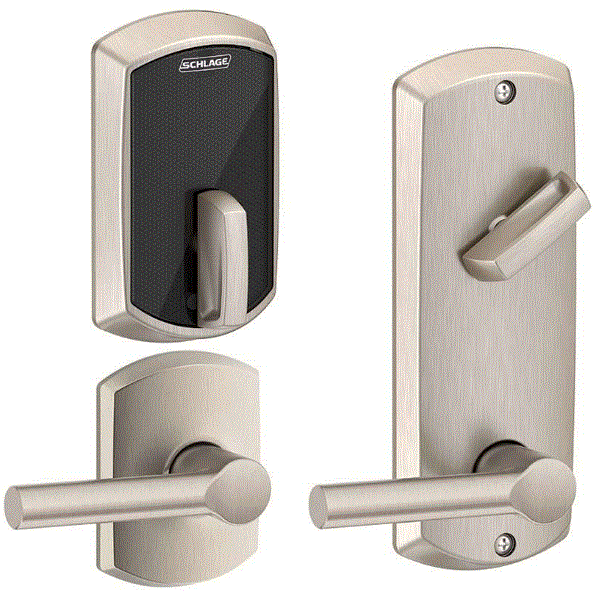

FE410F Schlage Control Smart Deadbolt

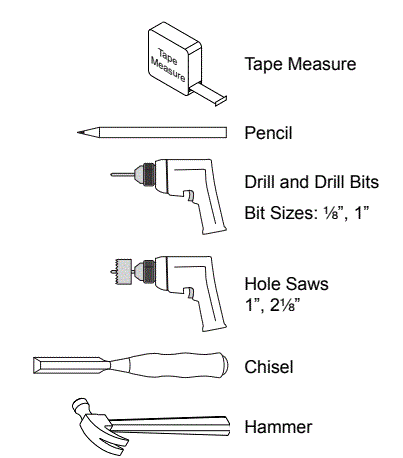

Tools Needed

INSTRUCTION

Door Preparation Instructions for Door with Existing Holes

• Measure door thickness.
  • If the door is thinner than 1C\,” or thicker than 1C\v”, then the lock will not fit properly on the door.

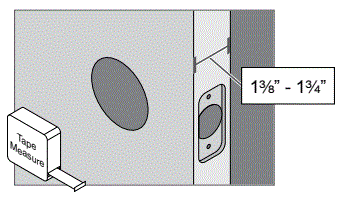

• Measure the backset.
  • If existing backset is not 2C\,” or 2C\v”, then the lock will not fit properly on the door.
• Measure the distance between the two holes.
  • The two holes must be either 4” or 5Z\x” apart. If they are not, the lock will not fit.
• Measure the hole sizes.

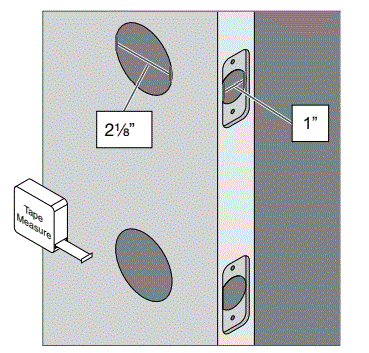

  •  If hole sizes are larger than those shown, then the lock will not fit properly on the door. If hole sizes are smaller than those shown, see steps 4b and 4c.

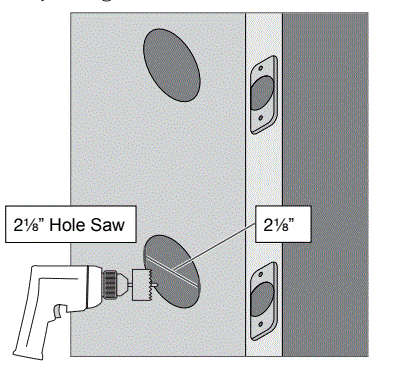

  •  If necessary, enlarge holes in door face.

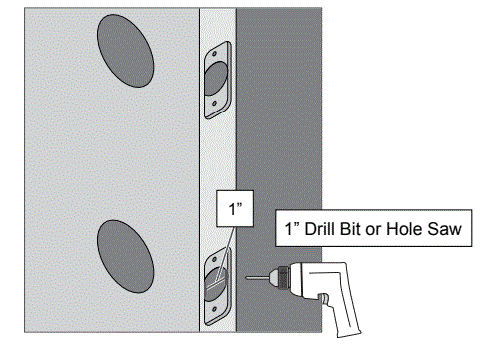

  •  If necessary, enlarge holes in door edge.
•  Check the door jamb.
  •  Place new latch strike, and bolt strike and reinforcement plate against the door jamb. If these do not fit properly, see steps 5b and 5c .
  •  If correction is necessary, trace the faceplates and mark holes.

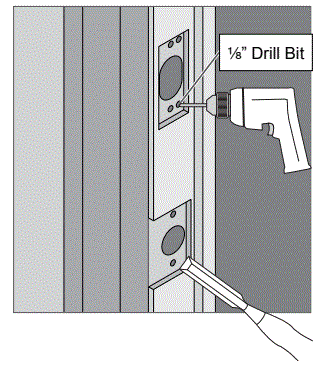

  •  If necessary, use chisel, hammer and drill to correct door jamb preparation.
