Kwikest Touchscreen Electronic Deadbolt User Manual

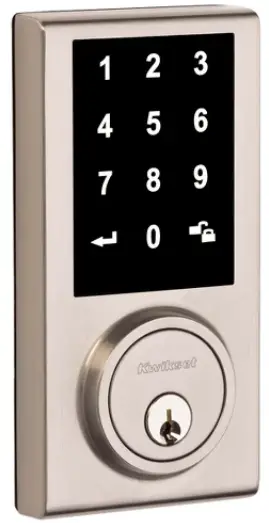

kwikest Touchscreen Electronic Deadbolt

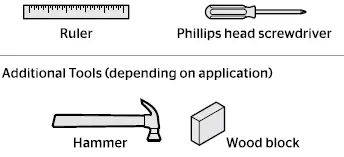

Required tools

Kwikset Technical Support

• 1-866-863-6584
• www.kwikset.com

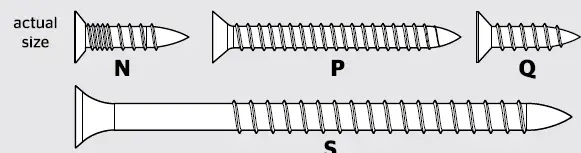

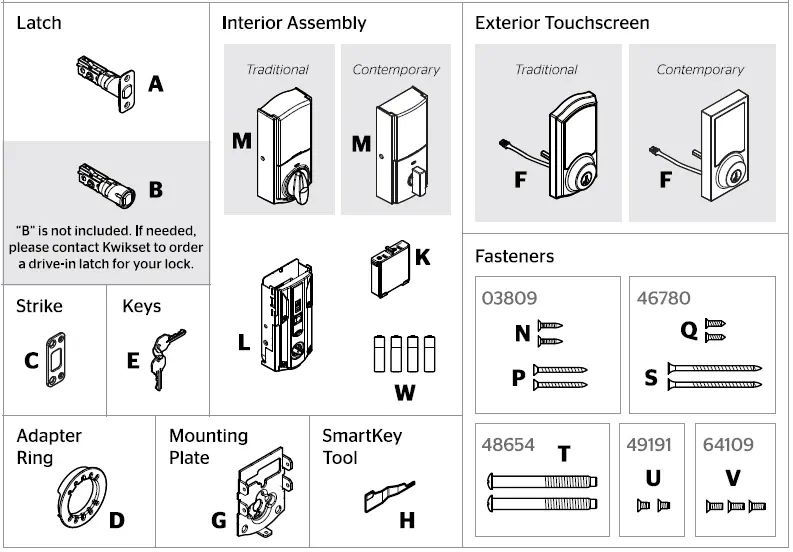

Parts in the box

Prepare the door and check the dimensions

If drilling a new door, use the supplied template and the complete door drilling instructions available at www.kwikset.com/doorprep.

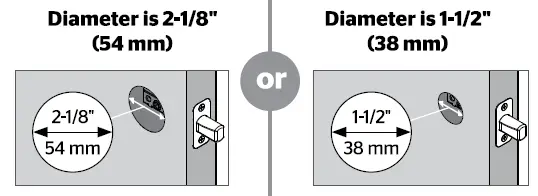

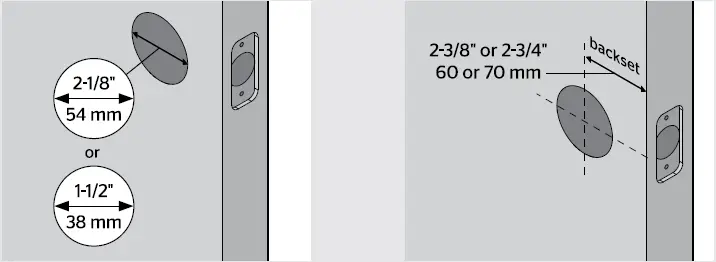

• Measure to confirm that the hole in the door is either 2-1/8″ (54 mm) or 1-1/2″ (38 mm).
• Measure to confirm that the backset is either 2-3/8″ or 2-3/4″ (60 or 70 mm).

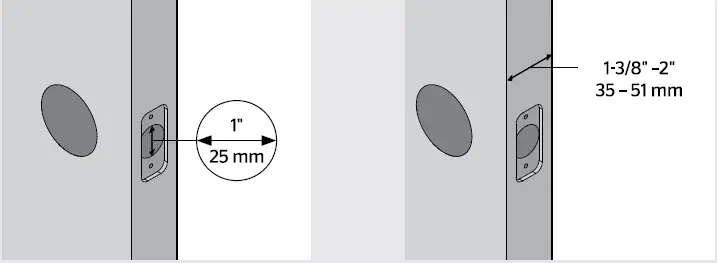

• Measure to confirm that the hole in the door edge is 1″ (25 mm).
• Measure to confirm that the door is between 1-3/8″ and 2″ (35 mm and 51 mm) thick.

Note: Additional door preparation may be required for doors with 1-1/2″ (38 mm) holes. Consult the deadbolt drilling instructions at www.kwikset.com/doorprep.

Install the latch and strike

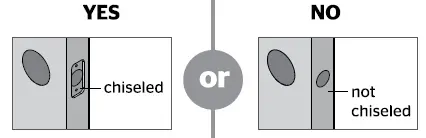

• Is the door edge chiseled?

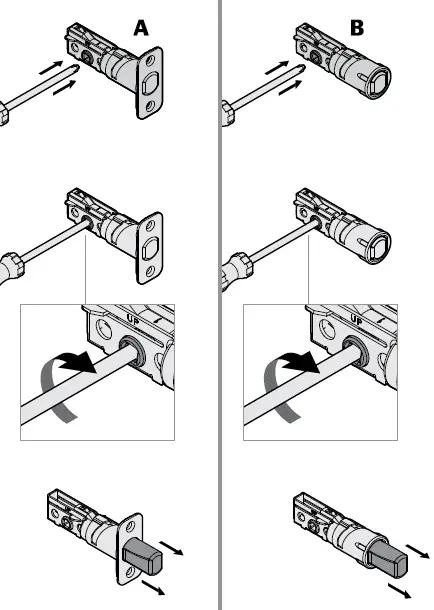

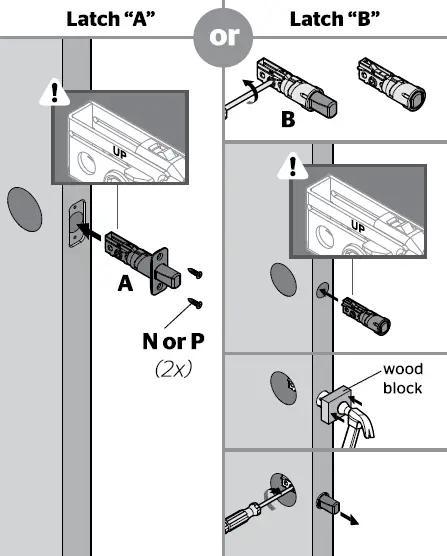

  • Use latch “A”. If the latch bolt is not already extended. extend the latch bolt as shown.
  • Use latch “B” (not included). If the latch bolt is not already extended. extend the latch bolt as shown.

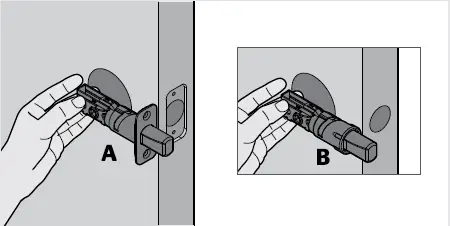

• Hold the latch in front of the door hole, with the latch
  • D-shaped hole No adjustment is required. Proceed to next step.
  • D-shaped hole Rotate latch face as shown to extend latch.
• Is the D-shaped hole centered in the door hole?
• face flush against the door edge.
• Which latch are you installing?

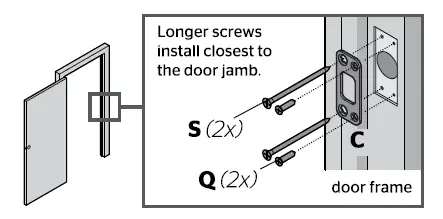

• Install strike on the door frame. Latch”B” Lt Make sure the hole in the door frame is drilled a minimum of 1″ (25 mm) deep.

Install the exterior touchscreen

• What is the diameter of the hole in the door?

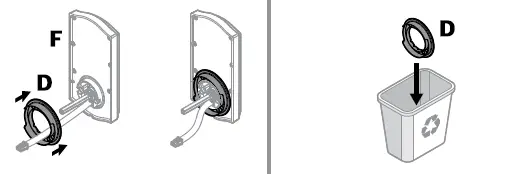

  • “D” is required for installation. Install “D” on “F”.
  • “D” is not needed for installation. Discard “D”.
• Locate screws for step 3C and keep them within reach.

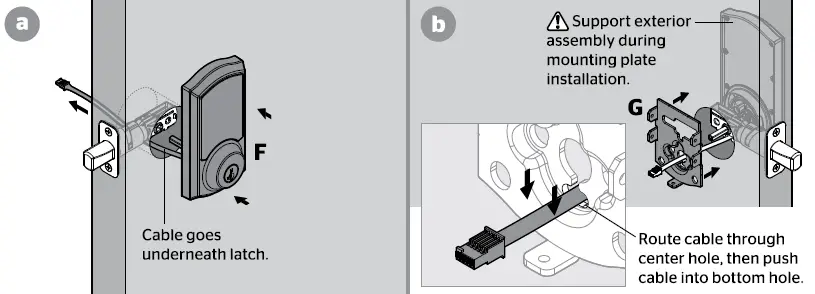

• Install exterior touchscreen and mounting plate.
  • Insert key and test latch. If latch does not extend or retract smoothly, adjust screws (T). Remove key when finished and make sure the latch bolt is fully extended.

Install the interior assembly

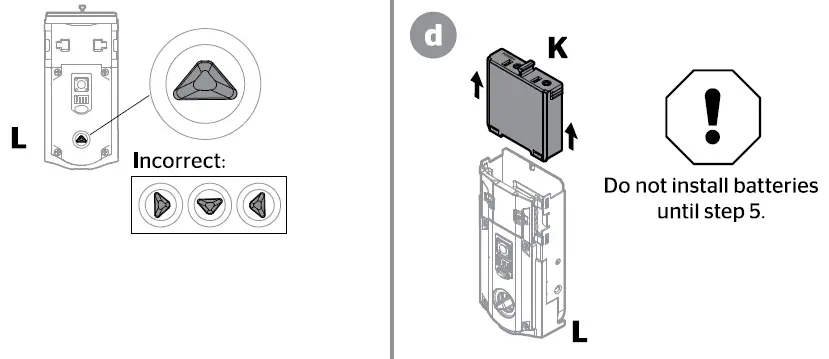

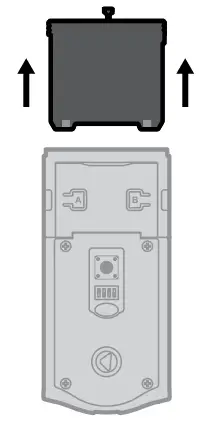

• Remove the interior cover and battery pack from the interior assembly.

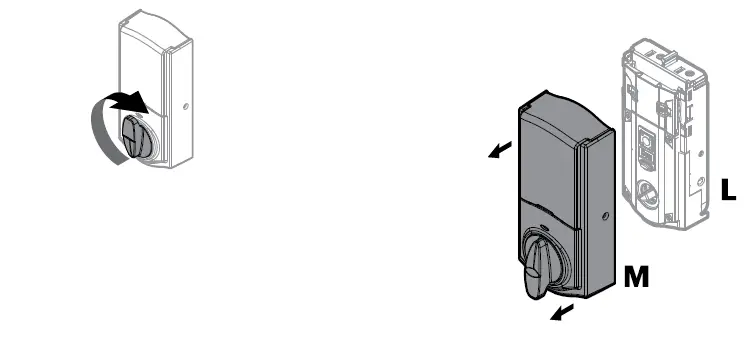

  • If the turn piece is pointing down (as shown above). rotate the turnpiece 180° clockwise until you hear it click. You may need to apply some force.

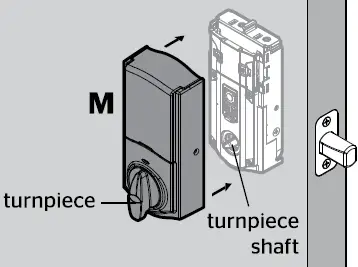

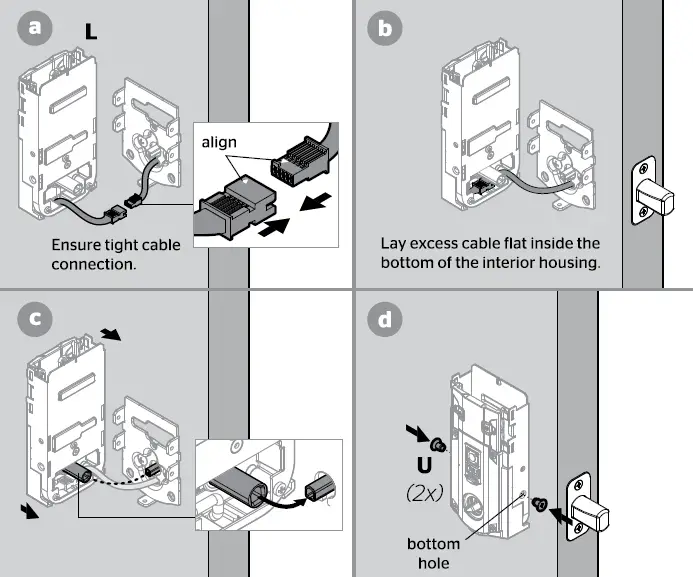

• Install interior assembly onto the mounting plate.
  • If the turn piece is pointing down (as shown above), rotate the turnpiece 180° clockwise until you hear it click. You may need to apply some force.
• Install interior assembly onto the mounting plate

Set locking and unlocking direction

This step will teach your lock the orientation of your door and is crucial to lock operation.

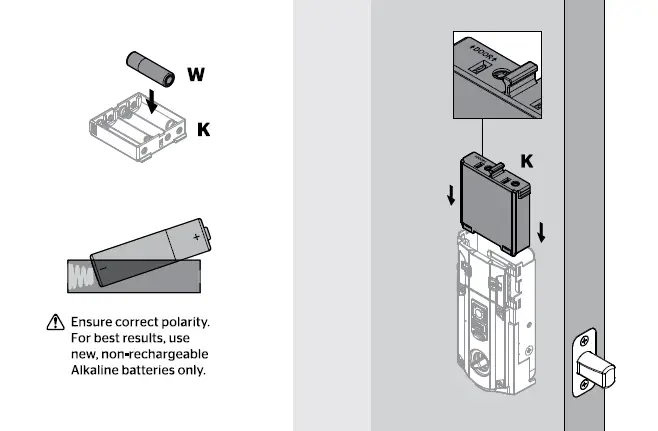

• Install 4 AA batteries in thebattery pack.
• Make sure the door is open, and insert the battery pack.

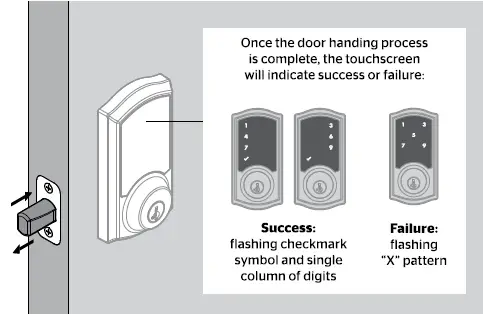

• After a few seconds, the latch bolt will retract and extend on its own to learn the orientation of the door. This is called the door-handing process, and it is crucial to lock operation.
• If the touchscreen indicates a failure, attempt this procedure again. If the door-handing process is sti\\ unsuccessful after a second attempt, perform the “Manual Door Handing” procedure on page 4.

Add the lock to your smart home system

• Initiate the process to add the lock to your system at your smart home controller. Refer to your smart home system instructions for more information.

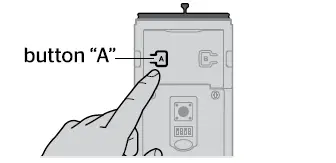

• When prompted by your smart home system to add the lock, press button “A” on the lock interior one time. The red LED will illuminate when the lock enters Add Mode.
  Please allow time for the controller to add the lock.
• If successful, re-name the lock in your system (if applicable).
• If unsuccessful, follow your system’s instructions to remove the lock from the controller and any other network, then press button “A” on the lock one time. Perform steps 6A-6C again. If still unsuccessful, consult the Programming and Troubleshooting Guide on the SmartCode 916 page at www.kwikset.com.

Add user codes (30 max)

It is recommended that you add and delete all user codes through your smart home control system. If your system does not allow this, codes may be added directly to the lock as shown here.

Programming Timeout
During programming, if the screen is not pressed for 20 seconds, the system will time out (indicated by three beeps and the “X” pattern flashing three times), and you will need to restart the procedure.

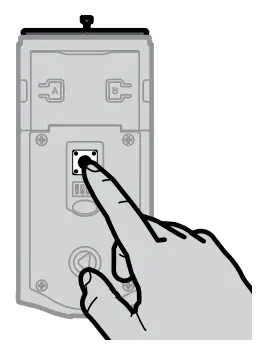

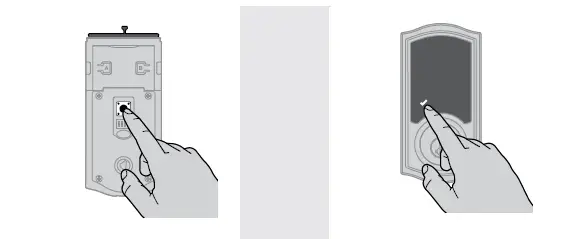

• Make sure the door is open. Press the Program button once.

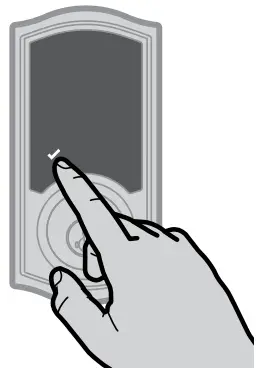

• Press checkmark symbol once.

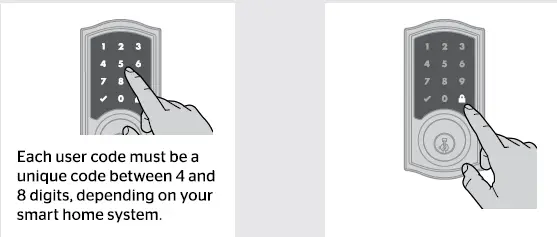

• Enter user code. A total of 30 user codes may be programmed.
• Press lock symbol once.
• What digits and sounds did the lock produce?

Master code
For enhanced security, a master code may be used when adding and deleting user codes. For more information about the mastercode, download the Programming and Troubleshooting Guide on the SmartCode 916 page at kwikset.com.

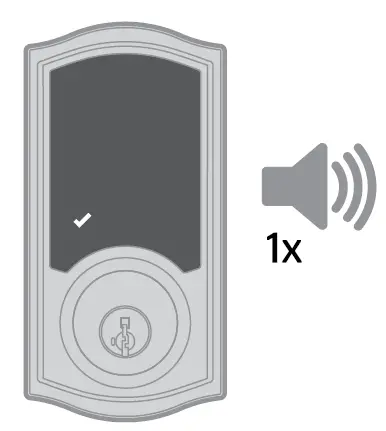

Checkmark symbol with one beep

• Programming was successful.

“X” pattern with three beeps

Programming was unsuccessful. Make sure the user code Is not a duplicate and that It Is between 4 and 8 digits during your next attempt. Make sure the lock has room for an additional code. If all user code positions are filled, delete a code to make room for this one.

• Beeping sound will only be heard if switch #3 (on the lock interior) is in the on positon. See “Switches and Status LED Colors” on page 4.

Test the lock (review normal operation)

Confirm that the code(s) added in previous step can unlock the door.

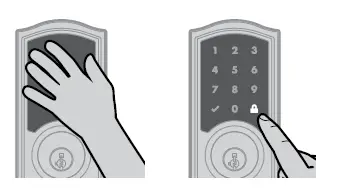

Activating the Screen

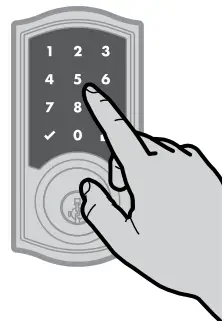

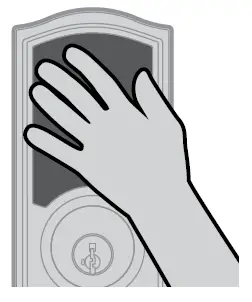

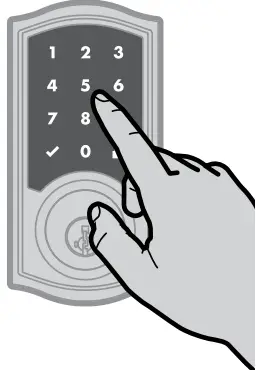

Touch screen with palm or back of hand until digits Illuminate.

Locking the Door

1. Activate the screen.

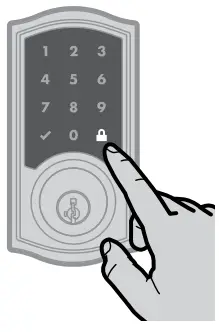

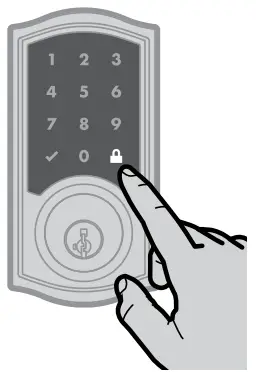

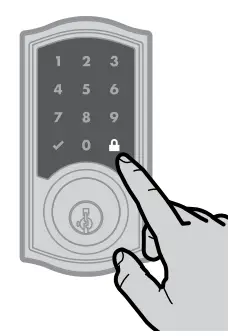

2. Press Lock symbol.

Note: If no user codes are programmed, the door cannot be locked via touchscreen.

Unlocking the Door

1. Activate the screen.
2. If SecureScreen'” is enabled, touch the random digits that appear.
3. Enter user code.

If you press the wrong digit while entering a user code, you can press the Lock symbol once to clear the digits entered previously and immediately restart the code entry process.

SecureScreen

SecureScreen is an added-security feature that displays random digits before you enter a user code to unlock the door. This feature ensures that there are fingerprints on all digits so that codes cannot be identified by examining the touchscreen for fingerprints.

• If desired. this feature can be disabled by turning switch #4 to the off position. See ·switches·· on page 4.

Install the interior cover

Important Information about the interior cover

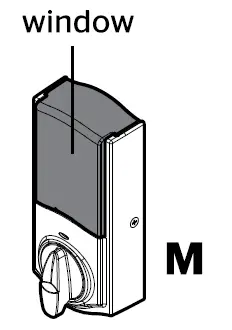

• The window on the interior cover is locked by default to prevent someone from tampering with your lock’s settings.

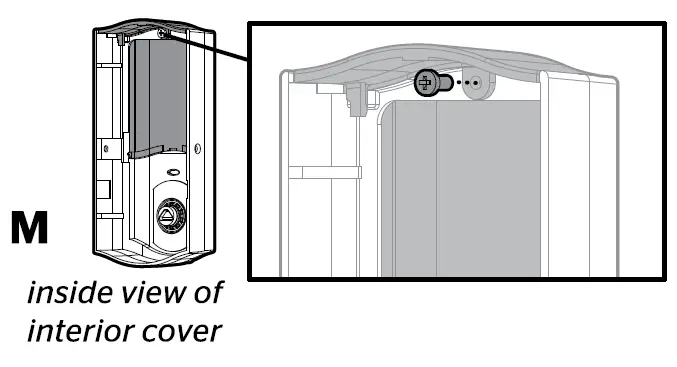

• For easy access to the battery pack, unlock the window by removing the security screw.

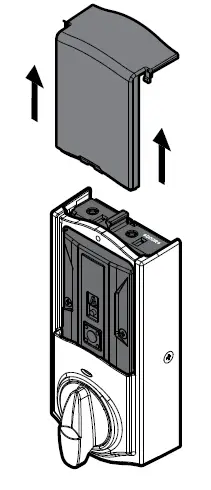

• You can now slide up the window for more convenient access to the programming buttons and the battery pack while the cover is installed.

Cover Installation

Install cover.
Note: You may need to rotate the turn piece to align with the turnp iece shaft.

Install screws.

Battery Pack Access

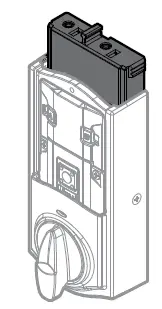

• If the window is unlocked, slide up the window to access the battery pack.If the window is locked, remove the interior cover and screws to access the battery pack.

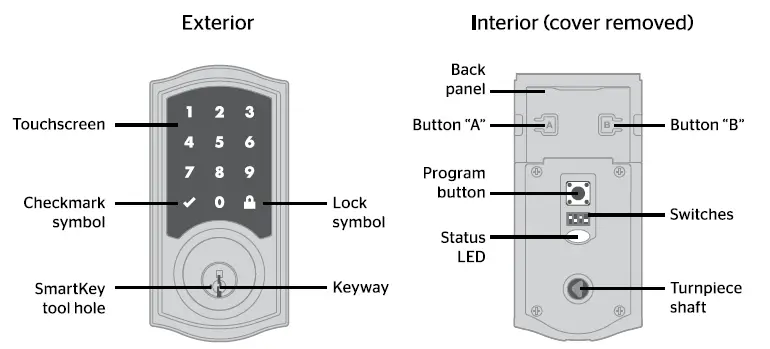

SmartCode at a Glance

Note: When the cover is removed, the turn piece shaft can be used to manually lock and unlock the door.

Re-key the lock (if needed)

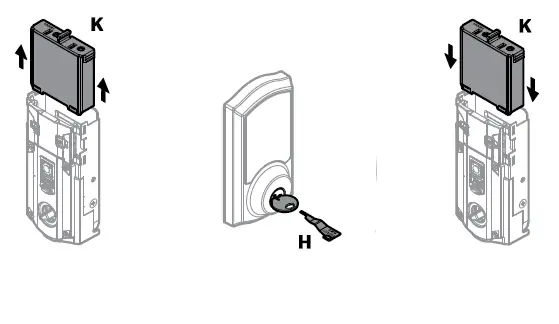

• IMPORTANT: Remove battery pack before re-keying .
• Re-key the lock to work with your existing key. See the supplied SmartKey Re-key instructions for more information.
• Reinstall battery pack.

Switches and Status LED Colors

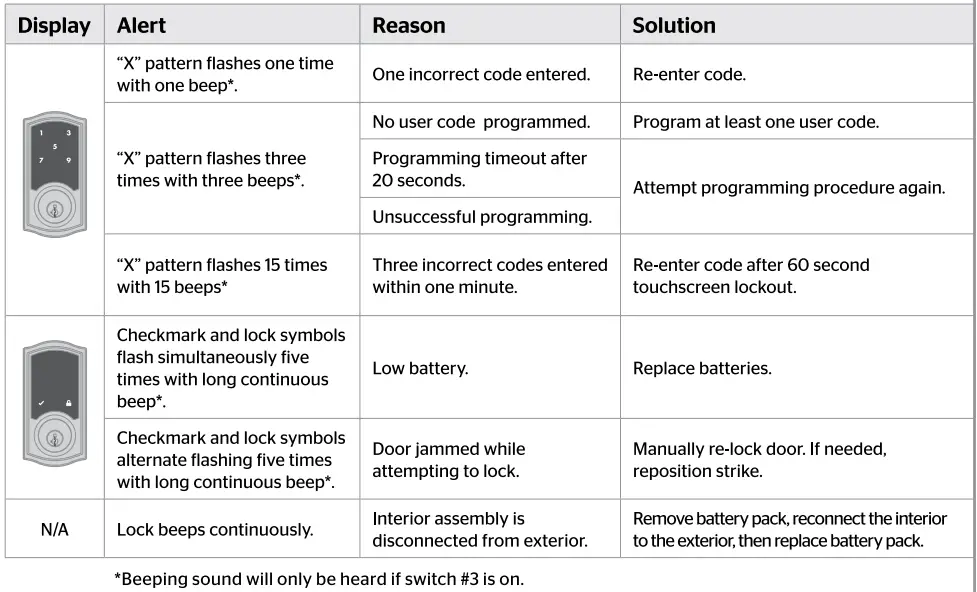

System Alerts

Deleting a single user code

Note: All codes may be deleted at once if the mastercode is enabled. For more information about the mastercode, consult the on line Programming and Troubleshooting Guide.

Keep door open. Press Program button once.		2 Press Checkmark symbol once.		3 Press Lock symbol once.	4 Enter user code to be deleted.
5 Press Lock symbol once.	6 Re-enter user code.		7 Press Lock                If unsuccessful symbol once. Make sure to enter the same valid code in steps 4 and 6. & Test code While the door is open, test the user code to make sure it no longer unlocks the door.

Factory Reset

A factory reset will delete all codes associated with the lock, and it will remove it from your smart home system.

Remove battery pack.		2 Press and HOLD the Program button while reinserting the battery pack. Keep holding the button for 30 seconds until the lock beeps and the status LED flashes red.
3 Press the Program button once more. The status LED will flash green and red several times.			4 After a few seconds, the lock will initiate the door handing process. and the latch bolt will extend and retract to learn the orientation of the door.

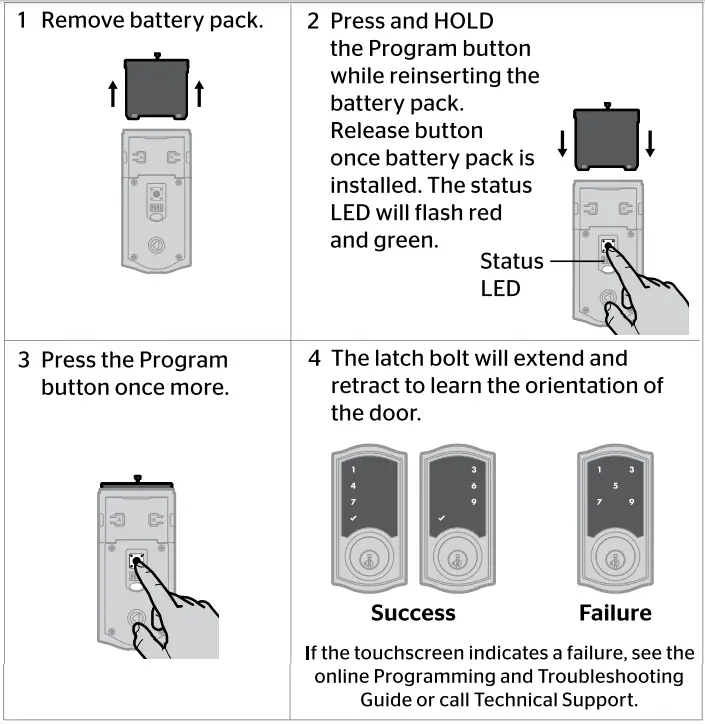

Manual Door Handing

If needed, the door-handing process can be initiated manually. This is useful if the lock is being moved to a different door.

Network Information

Removing the lock from the network
Follow your smart home system’s instructions to remove the lock from the network. When prompted by the system, press button A” on the lock interior once.

Z-Wave System Notes
This product is a security-enabled Z-wave Plus product and must be used with a Security Enabled Z-Wave controller to be fully utilized. Z-Wave is a “Wireless mesh network,” and results may vary based on building construction and communication path. To assure interoperability, each Z-Wave product must pass a stringent conformance test to assure that it meets the Z-Wave standard for complete compliance with all other devices and controls. The Z-Wave identity mark assures consumers and integrators. dealers and manufacturers that their products will reliably perform with any other Z-Wave device. And, regardless of the vendor, always-powered nodes may act as a repeater for Kwikset/Weiser/Baldwin products. Z-Wave Configuration and Association Parameters are available on the SmartCode 916 page at www.kwikset.com.

Important Safeguards

1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and master codes.
5. Dispose of used batteries according to local laws and regulations.

CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel can change the user codes, you must restrict access to the back panel and routinely check the user codes to ensure they have not been altered without your knowledge. The use of a master code can help protect your system’s settings.

WARNING: This Manufacturer advises that no lock can provide complete security by itself. This lock may be defeated by forcible or technical means, or evaded by entry elsewhere on the property. No lock can substitute for caution, awareness of your environment, and common sense. Builder’s hardware is available in multiple performance grades to suit the application. In order to enhance security and reduce risk, you should consult a qualified locksmith or other security professional.
