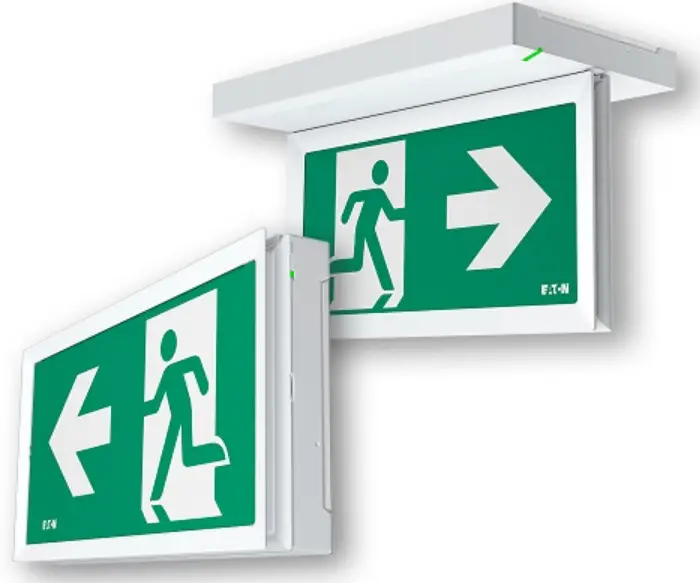

EATON FlexiTech Exit Wall 12M CGLine+ I
Manual

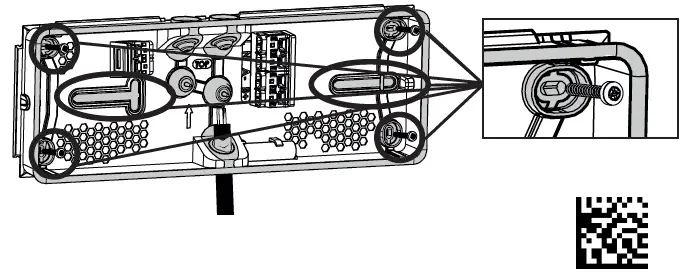

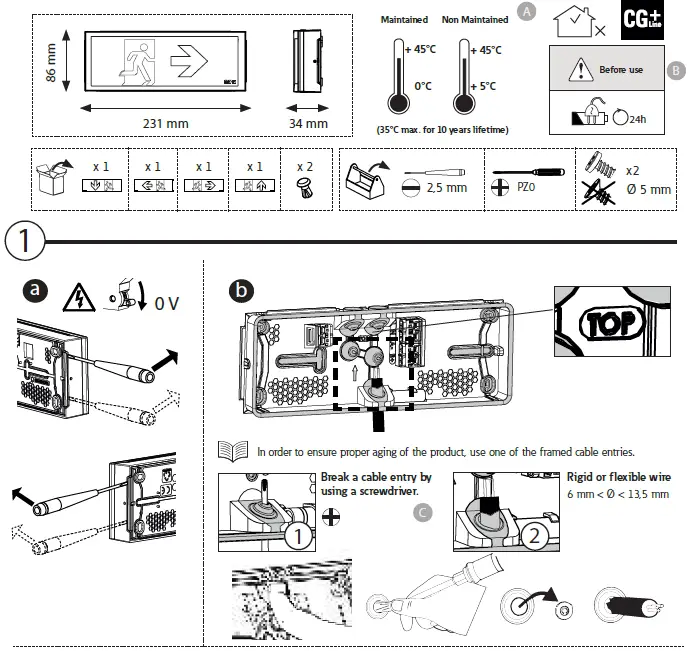

Drill in the honeycomb zones (IP43) or in the flexible material parts (IP66).
For honeycombs, be careful to battery location.
For corner fixing, use 4 screws.
Disconnect the battery, wait for 10 seconds, and reconnect it if you decide to change configuration (b-c).
Disconnect the battery, wait for 10 seconds, and reconnect it if you decide to change Even/Odd configuration.
See Controller CG Line+ user manual for duration test configuration.

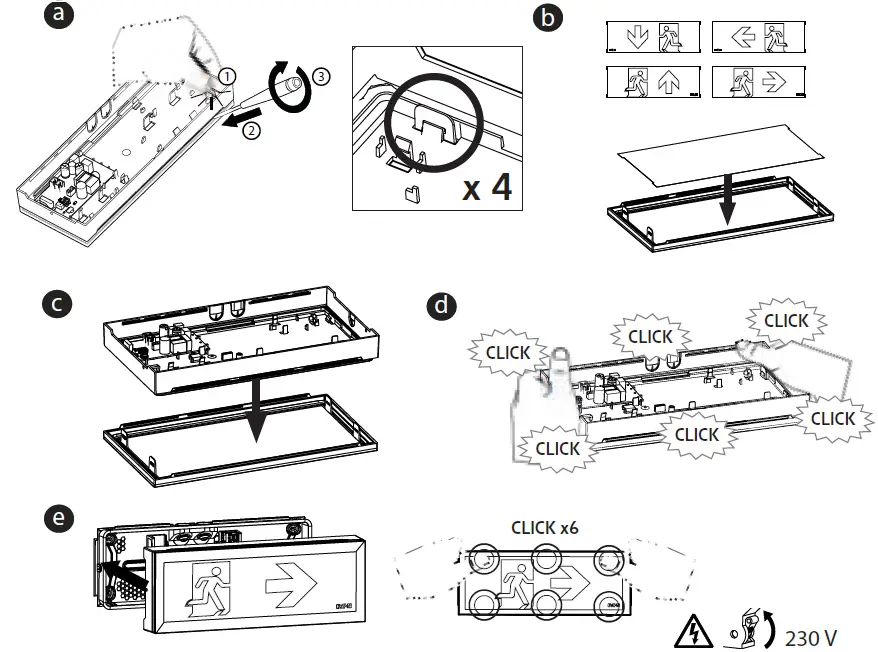

PICTOGRAM CONFIGURATION
If the battery duration is insufficient, replace the battery.
When the life time of light source is over, replace the luminaire.
Eaton
Cooper Sécurité SAS
PEE II – Rue Beethoven – BP10184 63204 RIOM CEDEX FRANCE
Tél. +33 (0)825 826 212 (0,15 € TTC/min) www.cooperfrance.com
www.eaton.com
Eaton
EMEA Headquarters
Route de la Longeraie 7
1110 Morges, Switzerland
Eaton.eu
© 2021 Eaton
All Rights Reserved
ZNO2054600 A- 04/2021
Eaton is a registered trademark.
All trademarks are property of their respective owners.
WEEE: Contact your local dealer Eaton.com/recycling

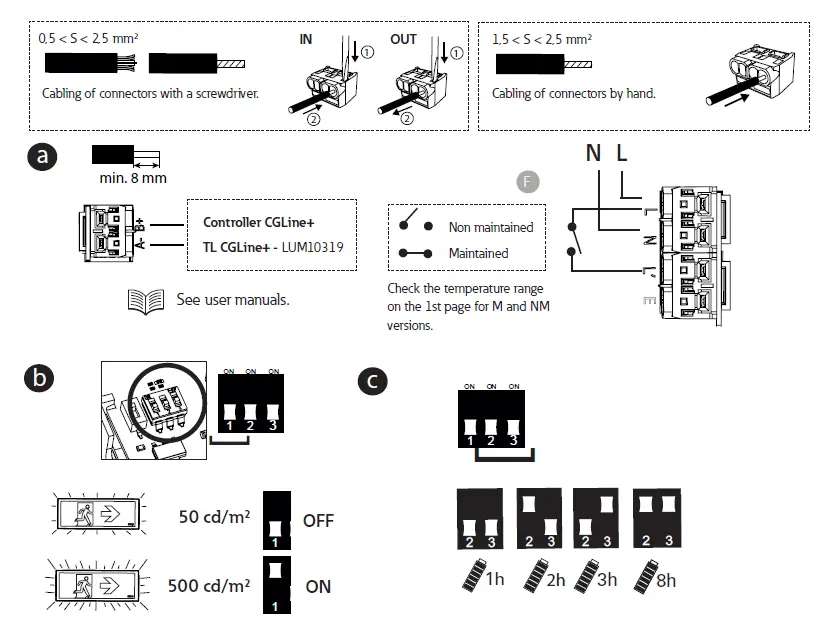

| Maintained Non maintained | Before use | Break a cable entry by using a screwdriver. Rigid or flexible wire | Drill in the honeycomb zones or in the flexible material. For corner fixing, use 4 screws. | Use screwdriver to place and remove wire. No screwdriver required for connection | Non maintained Maintained Check the temperatures range on the 1st page for M and NM versions. |

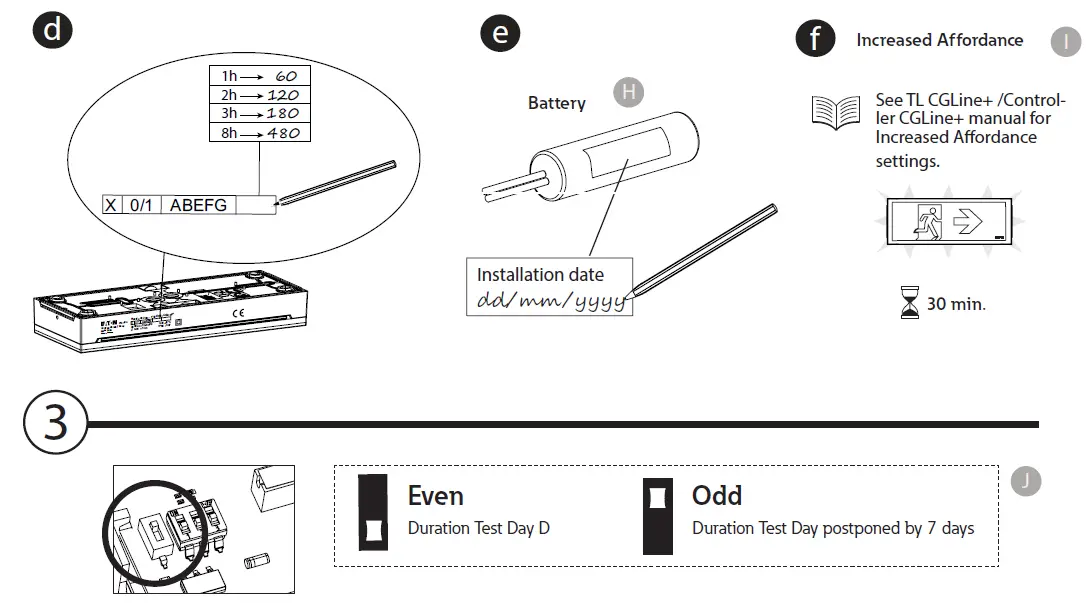

| Disconnect the battery, wait for 10 seconds, and reconnect it if you decide to change configuration (b-c). | Battery Installation date | Increased Affordance See TL CG Line+ manual for Increased Afford- dance settings. | Even/ Odd – Duration Test Day postponed by 7 days | Attest |

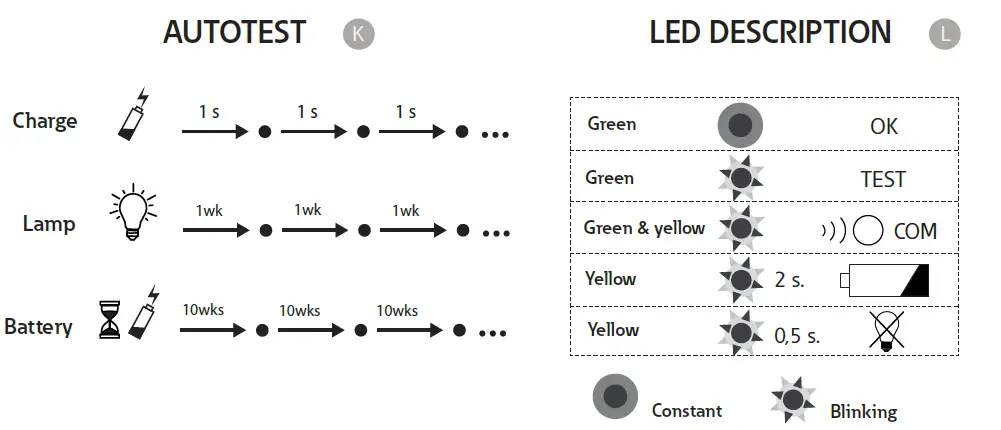

LED Description – Constant / Blinking |

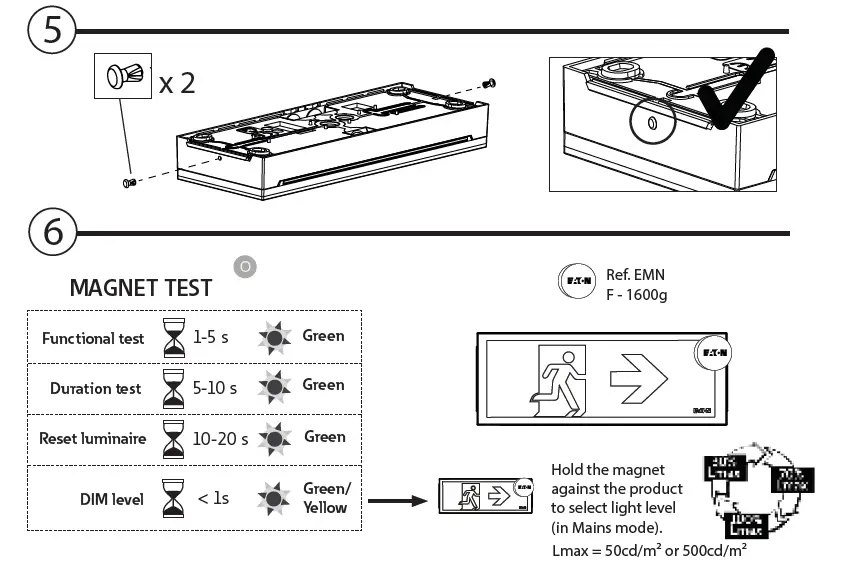

| Disconnect the battery, wait for 10 seconds, and reconnect it if you decide to change Even/Odd configuration. | Pictogram configuration | Magnet Test Functional Test Duration Test Reset luminaire DIM level Green / Yellow |

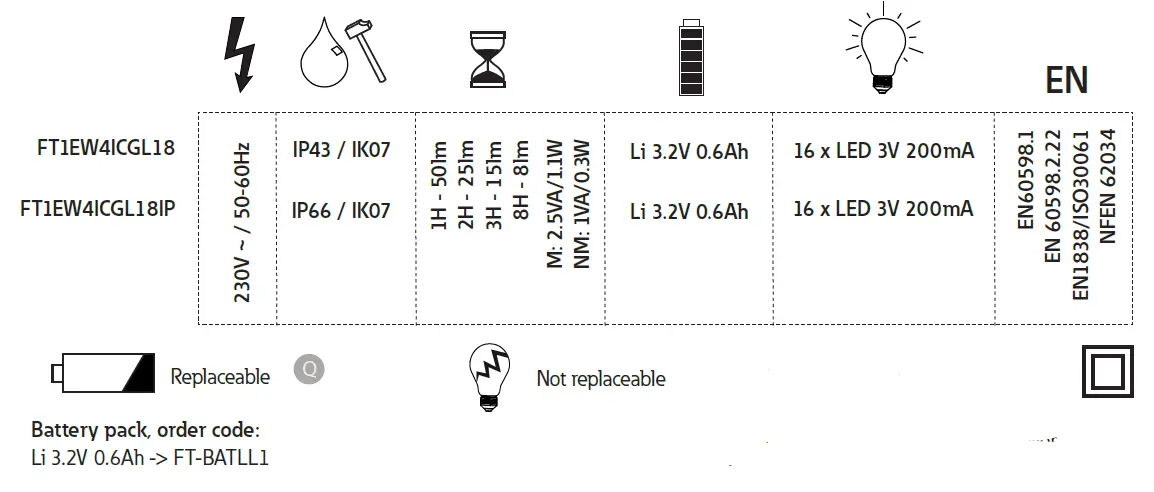

| Hold the magnet against the product to select light level (in Mains mode). | Replaceable Not replaceable Battery pack, Order code If the battery duration is insufficient, replace the battery. When the life time of light source is over, replace the luminaire. |
