Installation and Operation instructions
RoundTech MR EC CGLine+
(Medium Recessed Exit Sign Ceiling)
The device shall only be used for its intended purpose and in undamaged and flawless condition.
Only genuine Eaton spare parts may be used for replacement and repair.
Observe the national safety rules and regulations to prevent accidents as well as the safety instructions included in this leaflet.
1
2
3
*Disconnect mains and battery, wait for 10 seconds, and reconnect it if you decide to change the configuration of Even/Odd switch.
(See page 5 for removing cables.)

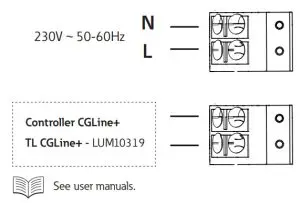

Increase Affordance functionality
See TL CGLine+ manual for Increase Affordance settings.
4
5
6
7
8

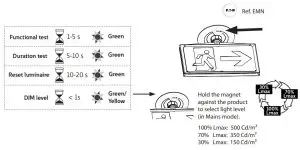

MAGNET TEST
9

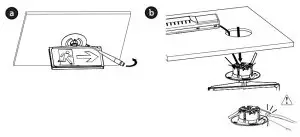

MAINTENANCE – REPLACE BATTERY OR REMOVE LIGHT HEAD

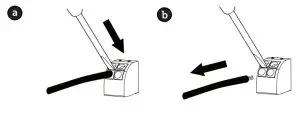

REMOVE WIRES FROM CONNECTORS
10
* All parts above the ceiling are IP20.

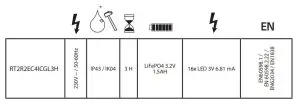

 Pack batterie, Code produitRT2R-BAT1 : LiFePO4 3.2V 1.5AH |  Not replaceable |  |
If the battery duration is insufficient, replace the battery.
The light source of this luminaire is not replaceable.
When the light source reaches its end of life, the whole luminaire shall be replaced.
General safety instructions
- The luminaire is not suitable for private use.
- It can only be installed by a qualified electrician in compliance with the regulations on safety and prevention of accidents.
- The luminaire must be used in accordance with its intended use in a proper and undamaged condition.
- Remove all foreign objects from the device before its first use.
- When working on the luminaire, first turn off the power completely, ensure that it cannot be turned back on, and check if it is free of voltage. (The above applies to mains power, backup power, and possibly control and external voltage.)
- Use only original spare parts for replacement.
- * Luminaires with this label must be positioned in such a way as to avoid staring in the light for a long time from a short distance.
- **This product contains a battery. In case of damage or abnormality (such as high temperature, discoloration, distortion, or leakage…), disconnect immediately the battery and contact your customer support.
Do not attempt to repair, disassemble or modify the battery. Replacing the battery with an incorrect type could lead to an explosion. Using third-party products may cause battery leakage, overheating, or fires.
Do not place or use batteries near fires, heaters, direct sunlight, or other heat sources. Prolonged exposure to heat may cause battery leakage, explosions, or fires.
Do not place pressure on or pierce the battery with hard objects. Damaging the battery could cause battery leakage, overheating, or fires.
Use the battery only with the luminaire intended for.
Do not immerse the battery in water or other liquids.
Do not dispose of the battery as household waste. Respect local regulations.
