Etekcity CL10 LED Camping Lantern
Introduction
Thank you for purchasing the Camping Lantern by Etekcity. If you have any questions or concerns, please reach out to our helpful Customer Support Team at [email protected]. We hope you enjoy your new Camping Lantern!
Safety Information
Please read and follow all instructions and safety guidelines in this manual.
General Safety
- Do not dispose of any part of the lantern in a fire.
- Do not submerge or place the lantern in direct contact with water or any other liquid.
- Do not replace batteries while hands are wet or while the lantern is in a wet environment.
- Do not shine the light directly into your eyes.
General Safety
- Do not dispose of any part of the lantern in a
- Do not submerge or place the lantern in direct contact with water or any other liquid.
- Do not replace batteries while hands are wet or while the lantern is in a wet environment.
- Do not shine the light directly into
Use & Care
- When not in use, turn off the lantern by completely collapsing the
- When installing or changing batteries, make sure to place the batteries in the correct polarity.
- Using batteries that are not alkaline may shorten the operating time of the lantern.
- When cleaning, use a damp or dry cloth to wipe the lanterns
- When not in use for an extended period of time, remove the batteries to avoid power drainage.
- Dispose of all parts of the lantern in accordance with local environmental regulations. Do not dispose of the lantern or batteries in regular household waste.

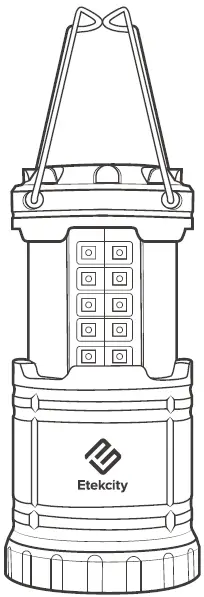

Function Diagram
- Handles
- LED Lantern Light
- Battery Compartment
Specifications
| Battery | 3 x 1.5V AA Batteries |
| Rated Power | 3W |
| Max Brightness | 120lm |
| Light Source | 30 LEDs |
| Weight | 0.67 lb / 302 g |
| Dimensions | 3.46 x 3.46 x 4.86 in /
8.8 x 8.8 x 12.4 cm |
| Operating Environment | 14°–104°F / -10°–40°C
(Relative Humidity: 70%) |
| Storage Environment | -4°–140°F / -20°–60°C
(Relative Humidity: 90%) |
Set-Up
- Flip the lantern over and twist the battery compartment lid counterclockwise to remove

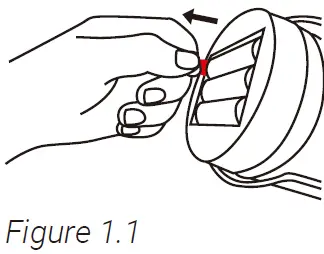

- Remove the insulation [Figure 1.1]
- Replace the battery compartment
Operation

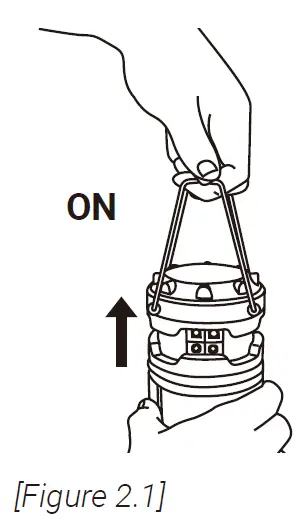

- Pull up on the handles to turn on the lantern.

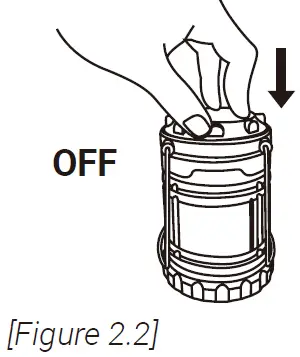

Note: Adjust the height to control the amount of light emitted from the lantern. - Fully collapse the lantern to turn it off.
Note: If you’re not using the lantern for an extended period of time, remove the batteries to avoid power drainage.
Note: Adjust the height to control the amount of light emitted from the lantern.
Note: If you’re not using the lantern for an extended period of time, remove the batteries to avoid power drainage.Replacing Batteries
- Turn off the lantern.

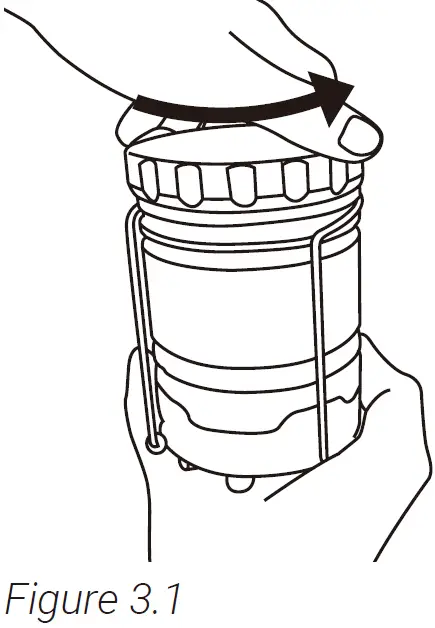

- Flip the lantern over and rotate the battery compartment lid counterclockwise to remove it.

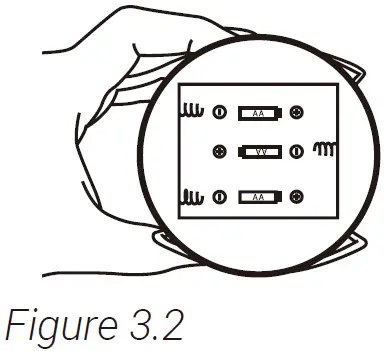

- Remove the old batteries and install new batteries, making sure they are placed in the correct polarity.

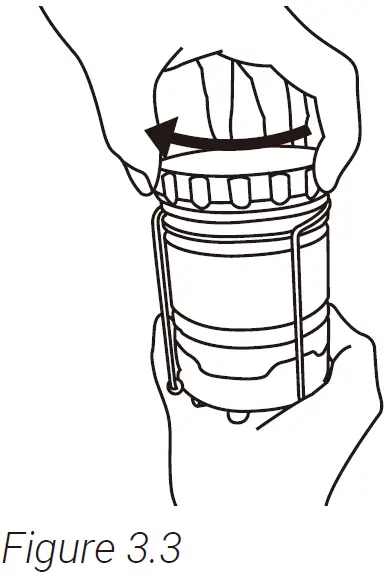

- Replace the battery compartment lid by rotating it clockwise.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
FCC SDOC SUPPLIER’S DECLARATION OF CONFORMITY
Etekcity Corporation hereby declares that this equipment is in compliance with the FCC Part 15 Subpart B. The declaration of conformity may be consulted in the support section of our website, accessible from www.etekcity.com.
Warranty Information
Scan Here to Receive Exclusive News:
Your product comes with 2 years of warranty, starting from the date of purchase.
- Scan the QR code or visit etekcity.com/warrant
- Enter your purchase info to receive exclusive news.
- Learn about our quality customer support and gain easy access to warranty information.
Customer Support
If you encounter any issues or have any questions about your new product, please contact our helpful Customer Support Team.
Etekcity Corporation: 1202 N. Miller St., Suite A Anaheim, CA 92806
USA
- Email: [email protected]
- Toll-Free: (855) 686-3835
- Support Hours: Mon-Fri 9:00 am “5:00 pm PST/PDT
- Please have your invoice and order ID ready before contacting Customer Support.
FAQ’s
No. This lantern is not waterproof and should be stored in a dry place.
The battery life varies depending on usage. The lantern will last approximately 10 hours on high, 40 hours on medium, and 80 hours on low.
This lantern provides about 160 lumens of light.
A lumen is a unit of measurement that describes the amount of visible light emitted by a source. It is used to measure the brightness of a light source. More lumens equal more brightness.
This lantern measures approximately 7″x5″x3″.
The original/supplied batteries allowed me to use 2 of the 4 on a camping trip for 2 days, 8 hours each night, for a total of 16 hours. There is a lot of useful light; I heartily suggest it! I’ll keep these in my storage bins for camping (so I don’t forget to bring them the following year) and buy more to keep around the house for emergencies or special events.
My son-in-law received two of them from me, and his children read in bed at night with them. I just gave it a shot, and it’s definitely achievable. a great deal superior to the child’s flashlight I ever used.
You need to pull out a plastic strip to activate the batteries, as you can see if you look inside the battery compartment. Although we have had ours for three years and the batteries are excellent, we got these for my brother.
I believe they would, indeed. It might be necessary to place 1 at either end of the table. They do emit a great deal of light.
Each lantern came with 4 batteries. Simply remove the safety tab to open the lamp and they will already be in place. Keep a check on your eyes because they were brighter than imagined.
30 LED bulbs are in it.
Cl30 has a 4-position dimmer switch with a magnetic base. Open or closed refers to on and off for both models. Although you can lower both lamps to cut down on light, the dimming option is preferable for cutting down on glare.
Yes, please do so. They work well indoors, while camping, or when used outside at night.
