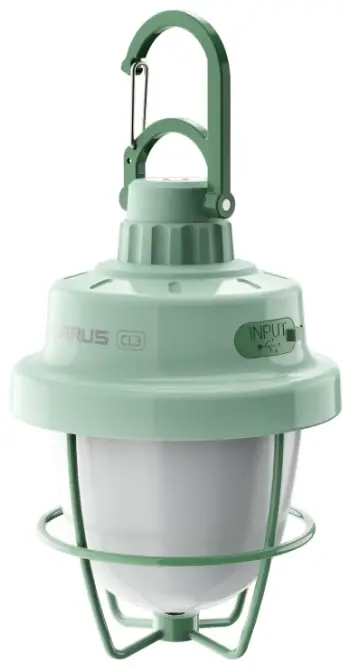

CL3 Camping Lantern
User Manual
Thank you for choosing our company’s product.
Please read this user manual carefully before use.

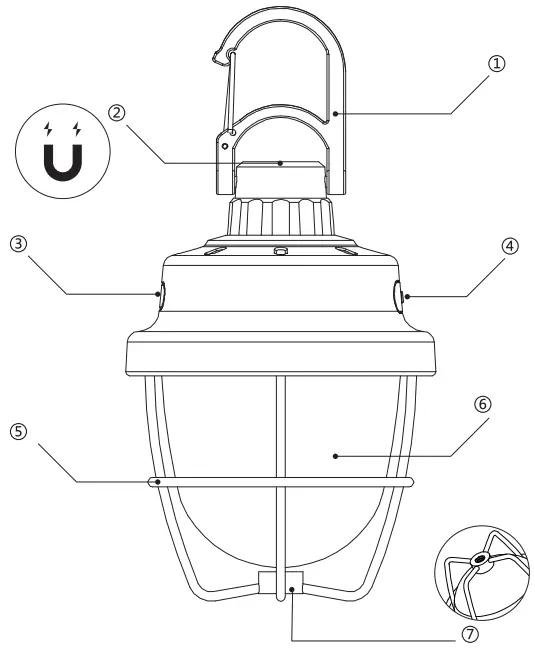

Function introduction
- Metal Hook
- Magnet
- Switch
- Charging Port
- Protection Wires
- lampshade
- 1/4 Threaded Interface
Specifications
- Product Model: CL3 Camping Lantern
- Size: 083.9 mm x 161.1 mm
- Main LED Color Temperature: 1300K, 2700K, 4000K
- Operating Voltage: 3.7V
- Battery Specifications: 2600 mAh (1*18650) built-in lithium battery
- Housing Material: ABS
- Charging Method: USB Type-C
- Weight: 201.5 g (including battery)
- Warranty: 1 year
ANSI Specifications
| ANSI/NEMA FL1 | Orange Light (1300K) | Warm Light (2700K) | White Light (4000K) | Pulse mode | |
 | ANSI lumens (LN) | 50 | 110 | 280 | |
 | Runtime(h) | 13 | 10 | 5 | |
 | Impact resistance(m) | 1m | |||
 | Waterproof | IPX5 | |||
Additional Features
| Mounting Method | Hanging, Handheld, Magnetic Adsorption |
| Temperature Control Function | 0-45°C |
| Shock Absorption Mechanism | The body is made of ABS material, which can withstand large impacts |
| Charging | Max charging current is 1A, and it takes approximately 4.2 hours to fully charge. Charging indicator: Red light flashes when battery level is 95%, green light is on when battery level is between 95%-100%. |
| Battery Capacity Indicator | Green light indicates 15%-100% battery level, red light indicates 5%-15% battery level, and flashing red light indicates 5% battery level |
| USB-C output | 5V / lA |
Instructions

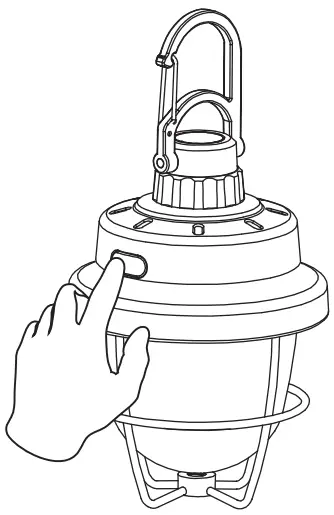

The device has a button that cycles through different modes when pressed. When the device is in standby mode, pressing the button once will turn on the LED. Pressing the button again will cycle through the following modes in a loop:
1300K, 50 lumens;
2700K, 110 lumens;
4000K, 280 lumens
Breathing flash mode (the light fades in and out), which will turn off automatically after 20 minutes.
In any mode, the light will stay on for 30 seconds before turning off if the button is pressed once more.
Packing List
| Item | Qty |  |
| Camping Lantern | 1 | |
| Charging Cable | 1 | |
| Manual | 1 |
Maintenance
- During the use of the camping light, if the surface temperature of the camp light is below 50°C, it is normal and safe to use.
- The charging battery is shipped with only 50% or less power. Direct use cannot achieve the highest brightness and normal battery life. Please fully charge the battery before first use.
After-sales/warranty terms
- 15-day replacement guarantee: For Kerryz products sold within 15 days, if there are any quality problems under normal use, customers can enjoy a free replacement of the same model. If the product has been discontinued, it will be replaced with an upgraded model of the same type or another product with equal or better performance.
- 1-year warranty: For this Kerryz product model, customers can enjoy free repair services for quality problems within one year from the date of purchase under normal use.
- Lifetime limited warranty: For product damage caused by improper use or beyond the free warranty period, our company will provide paid repair services based on the actual material replacement cost without charging additional labor fees.
- Product upgrades and specification updates will not be separately notified. The actual product appearance and color may be slightly different from the displayed images. Please refer to the actual product.
Shenzhen Kerryz Electronic Technology Co., Ltd. reserves the right to interpret and modify the contents of the manual.
