Hemp Rope Lantern
INSTRUCTION MANUAL

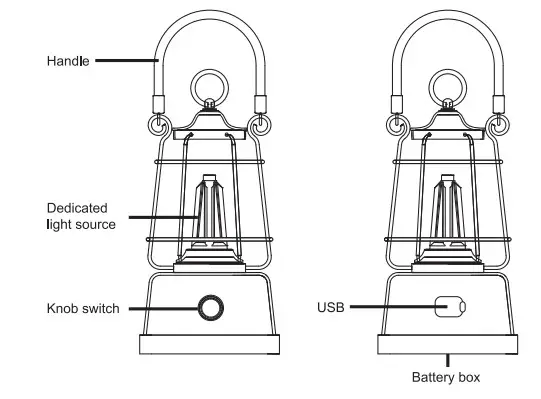

Knob switch
A: Press the knob for is to turn on the lamp. The default lighting mode is warm light (2200K), clockwise rotate for better light, counter-rotate for lower light!
B: It takes 3-4 laps of rotating for the lamp to reach maximum brightness.
C: Quick press the knob for Color Temperature adjustment. clockwise rotate for warm white to Cool white (high CCT), counter-rotate for cool white to warm white(low CCT). CCT range: 2200K-6500K.
Attention: Long press the knob is for power ON/OFF.
Short press for Dimmable / CCT adjustment!
USB
As the below picture shown, open the rubber cover:
DC 5V adaptor (not included)
Do not use an unmatched adaptor
The green indicator flickers say power charging, green light going on say full with power. When the USB output interface is used for external equipment charging, the red indicator going on and the indicator flicker means power off.
Notice: The USB output interface is not available during charing.
| Rated power(W) Rated voltage(V) Dimming range(W) Colour temp(K) Colour Rendering Index(Ra) Luminous flux(Lm) USB output/charging input Battery type Battery capacity(mAh) Charging time(H) Endurance time(H) Working temp(°C) Working humidity(%) Storage condition Whole light weight(g) Size Light body materials IP rating(IP) | 6W Dedicated for DC3V bulb 5%-100%(0.3W-6W) 2200-6500K (CCT Adjustable) Ra≥80 10-3701m 5V/1A Lithium battery 18650*2pcs 3.7V 5000mAh ≥7hours 3.8-75 Hours -20°C-60°C ≤95% Dry ventilated place 600g 126*230mm Plastic + Iron + Bamboo IPX4 |

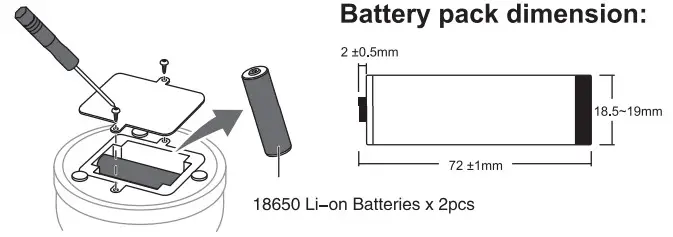

Battery box
Battery box is openable for switching battery types. It can use 1-2pcs of 18650 Li-on Batteries(battery capacity is up to your choice, we recommend 2pcs of 18650 batteries).
- Only for DC+5V adaptor.
- Do not be directly exposed to rainwater.
- To prevent it from battery damage as overfall, please charge timely when power off.
- Please charge once per three months if not use for quite some time.
- To prevent it from water and dust contaminants, please cover the USB output interface with waterproof film when it is not in use.
- In order to avoid accidents, please do not put it on fire.
- Please store in a dry and ventilated place.
Warranty card
Product name Hemp Rope Lantern
Model No. MQ-FY-JS-PG-6W
The factory code……….
Inspector……………..
Date of production………….
Inspection conclusion……….
The customer information
Name…………………
Telephone……………………
Address………………………
Purchase date………………………..
- This product is from the date of sale and warranty for one year.
- The company will provide you with high-quality after-sales service.
- If the user due to damage caused by man-made factors, the company is required for a maintenance repair charge.
- Please keep this card, we will use this as a warranty basis.
