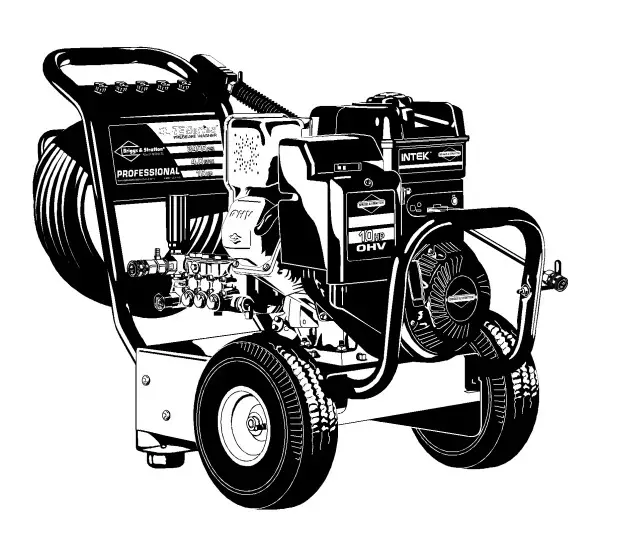

BRIGGS STRATTON 3400PSI ELITE Series Pressure Washer User Manual

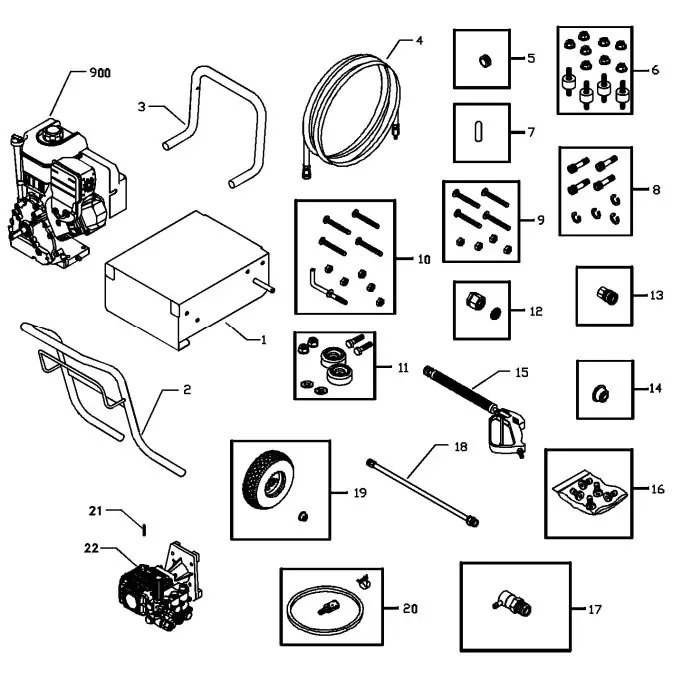

Main Unit
Note: Unless noted otherwise, use the standard torque specifications.
| Main Unit | |||
| REF NO | PART NO | QTY | DESCRIPTION |
| 1 | B192991GS | BASE | |
| 2 | BB3861CGS | HANDLE | |
| 3 | BB4105GS | BUMPER | |
| 4 | B4805GS | HOSE | |
| 5 | 30809GS | GROMMET | |
| 6 | 192134GS | KIT, Engine Mounting Hardware | |
| 7 | B2516GS | VINYL CAP | |
| 8 | 192132GS | KIT, Pump Mounting Hardware | |
| 9 | B4196GS | KIT, Handle Hardware | |
| 10 | 192910GS | KIT, Bumper Mounting Hardware | |
| 11 | 192553GS | KIT, Vibration Mount | |
| 12 | 192135GS | KIT, Garden Hose Inlet | |
| 13 | 95458GS | QUICK CONNECT | |
| 14 | 190147GS | PUSHNUT | |
| 15 | B1436BGS | GUN | |
| 16 | B4847GS | KIT, Spray Tips | |
| 17 | 195016GS | THERMAL RELIEF | |
| 18 | 190779GS | EXTENSION | |
| 19 | 192526GS | KIT,Wheel | |
| 20 | 192796GS | KIT, Chemical Hose/Filter | |
| 21 | 63281GS | KEY | |
| 22 | 194036GS | ASSY, Pump -(see “Pump”) | |
| 900 | ~NSP | ENGINE | |
| 193142GS | MANUAL, Owner’s -Not Illustrated | ||
| MS5242 | MANUAL, Engine -Not Illustrated | ||
| 192912GS | KIT, Decals -Not Illustrated | ||
| BB3061GS | OIL, Engine -Not Illustrated | ||
| 191922GS | KIT, O-RING MAINT & NZZL CLNNG -Not Illustrated | ||

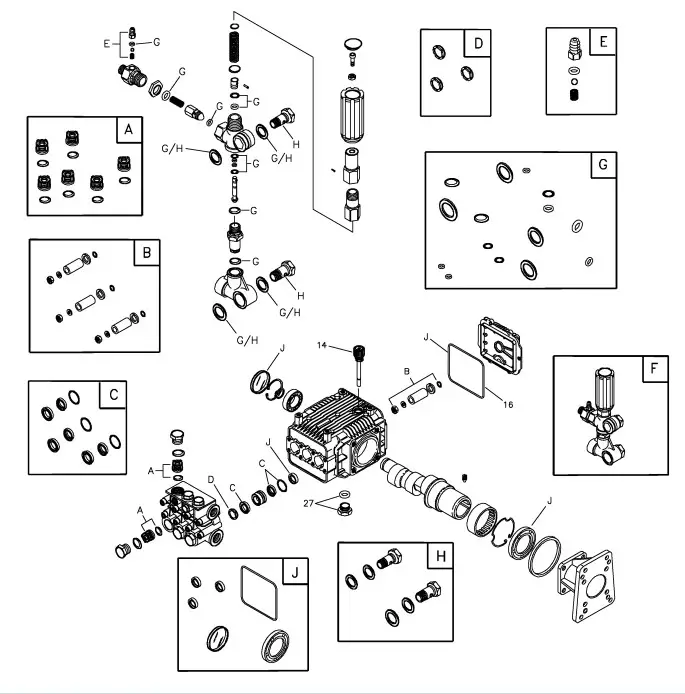

Pump (191879)
Note: Unless noted otherwise, use the standard torque specifications
| REF NO | PART NO | QTY | DESCRIPTION |
| 14 | 198849GS | CAP, Oil Dipstick | |
| 16 | 116B2126GS | O-RING, Square | |
| 27 | 203034GS | KIT, Drain Plug | |
| A | 500-87628PGS | * KIT, Valve | |
| B | 201B2126GS | KIT-PISTON | |
| C | 203B2126GS | KIT-WATER SEAL | |
| D | 204B2126GS | KIT-SUPPORT RING | |
| E | 192914GS | * KIT, Hose Tail | |
| F | 153B2126GS | * UNLOADER, Complete | |
| G | 193991GS | * KIT, O-Rings | |
| H | 199894GS | * KIT, Bolts | |
| J | 202B2126GS | KIT-OIL SEAL | |
| — | B2384GS | Filter, Inlet -(Not Illustrated) | |
| — | 6039 | Pump Saver -(Optional Accessory) | |
| — | 186452GS | FILTER, Inlet, Bag of 10 -(Optional Accessory) | |
| — | 6033 | Oil Bottle, Pump -(Optional Accessory) |

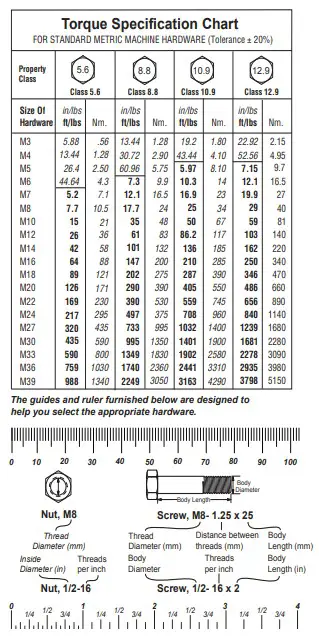

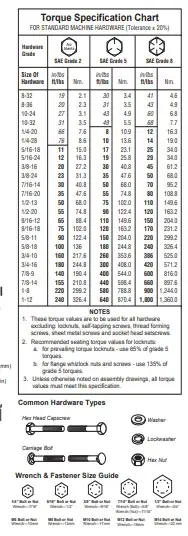

Hardware Identification & Torque Specifications
Standard Hardware Sizing
When a washer or nut is identified as 1/2” (M8), this is the Nominal size, meaning the inside diameter is 1/2 inch (8mm metric thread diameter); if a second number is present it represents the threads per inch (distance between threads).
When bolt or capscrew is identified as 1/2 – 16 x 2” (M8 – 1.25 x 50), this means the Nominal size, or body diameter is 1/2 inch (8mm metric thread diameter), the second number,16, represents the
threads per inch, (distance between threads). The final number is the body length of the bolt or screw, 2 inches (50mm).
