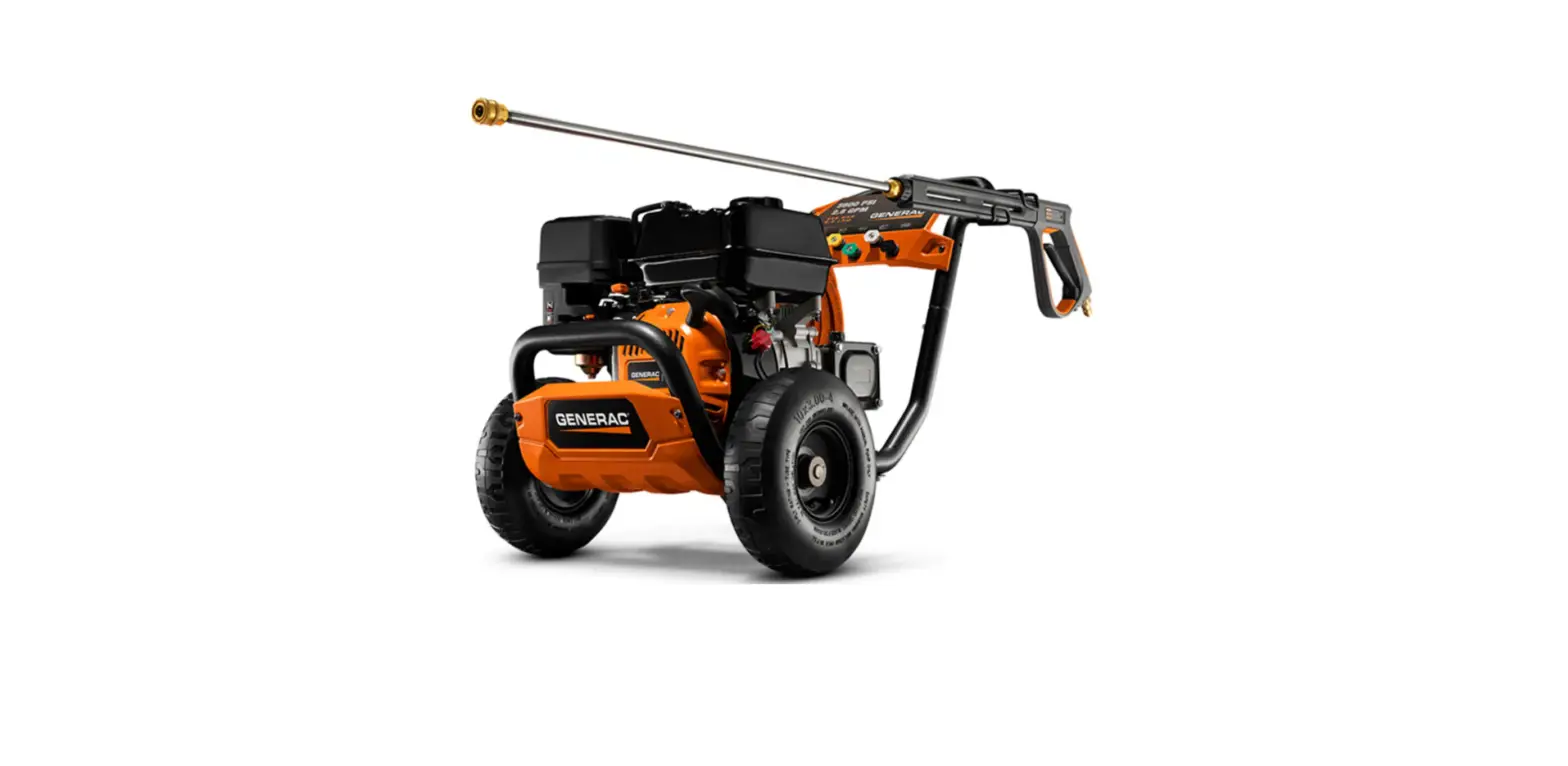

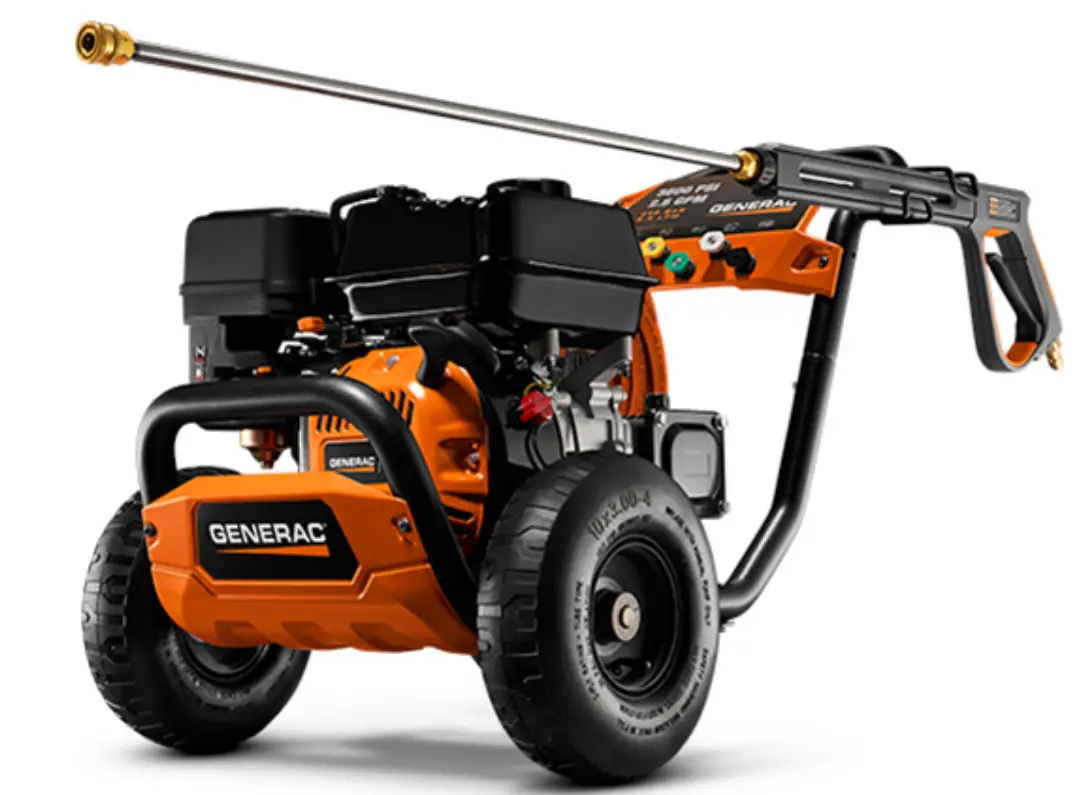

GENERAC 3600 PSI Power Washers
FEATURES
POWERFUL 212cc GENERAC OHV ENGINE
- Larger 0.8 gallon fuel capacity
- Better Lubrication
Heavy Duty Tri-Plex Pump
- Lasts up to 4 times longer
Large 10” Pneumatic Wheels
- Easily handle rugged jobsite terrain
Includes 5 Nozzles
30’ Flex Hose
- Non-marring
- Abrasion resistant
- Quick connect
1 ¼” Steel Frame
- Durable
- Protects components during transport
3 Year Limited Warranty
specifications
PRESSURE AND FLOW
| Max Outlet Pressure (psi/bar) | 3600/248 |
| Max Flow Rate (gpm)/(L/min) | 2.6/9.8 |
ENGINE
| Manufacturer | Generac |
| Displacement (in³/cc) | 12.9/212 |
| Type | 4 cycle/OHV |
| Orientation | Horizontal |
| Lubrication Method | Splash |
| Low Oil Shutdown System | Yes |
| Fuel Capacity (gal/L) | 0.8 / 3 |
| Fuel On/Off Switch | Yes |
| Oil Capacity (oz/L) | 20/0.6 |
| Recommended Engine Oil | 10W-30 /SAE 30 |
| Throttle Control | Manual |
| Choke | Manual |
| Starting Method | Recoil Pull Start |
PUMP
| Type | Triplex |
| Material | Aluminum/Brass |
| Maximum Water Supply Temperature (°F/°C) | 100/38 |
HOSE
| Type | Polyurethane |
| Length (ft/m) | 30/9.1 |
| Diameter (in/mm) | 0.3125/7.9 |
| Rating (psi/bar) | 3600/248 |
| Connectors | QC |
DETERGENT SYSTEM
| Chemical Tank | No |
| Chemical Tank Description | Not Applicable |
NOZZLES
| Nozzle Descriptions | 0, 15, 25, 40, Soap |
UN & LANCE
| Gun Type | Professional |
| Gun to Lance Connection | M22 |
| Gun to Hose Connection | QC |
| Lance Length (in/cm) | 29/74 |
| Lance to Nozzle Connection | Quick Change |
FRAME & MISC.
| Handle | Fixed – Click In |
| Frame Construction | Steel |
| Wheels (in/cm) | 3 x 10/7.6 x 25.4 |
DIMENSIONS & WEIGHTS
| Length (in/cm) | 40/102 |
| Width (in/cm) | 19.2/48.7 |
| Height (in/cm) | 24/61 |
| Unit Weight (lbs/kg) | 82/37 |
| Boxed Length (in/cm) | 24/61 |
| Boxed Width (in/cm) | 20.5/52 |
| Boxed Height (in/cm) | 20/51 |
| Boxed Weight (lb/kg) | 90/40.8 |
WARRANTY
| Warranty | 3 year limited |
- Generac Power Systems, Inc.
- S45 W29290 HWY. 59, Waukesha, WI 53189
- generac.com
©2021 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Part No. 10000008977-C 11/23/2021
