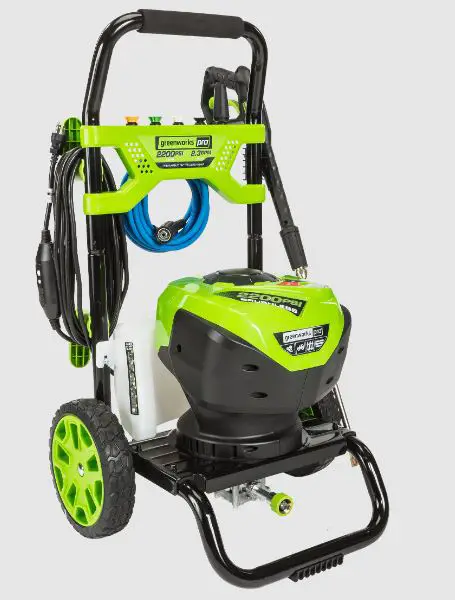

greenworks GPW 2200-1 PSI Pressure Washer

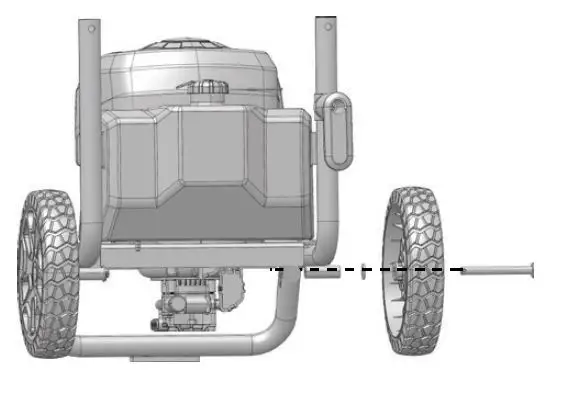

INSTALLING THE WHEELS

1. Insert an axle through a wheel, the frame of the unit, and then a washer.
2. Insert a cotter pin through the hole in the axle to secure. Repeat for second wheel.

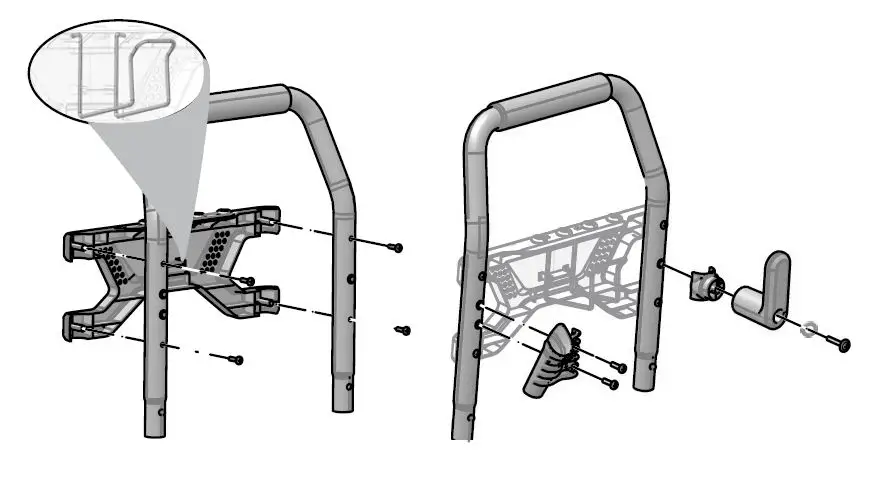

ASSEMBLING THE UPPER PANEL AND SPRAY GUN HOLDER

• Line up the screw sleeves with the holes in the upper handle and push through.
• Insert the screw and turn clockwise with a phillips head screw driver (not included) until the screw is tight.

ASSEMBLING THE HOSE HOOK

• Line up the hose hook upper end with the holes on the back of the upper panel.
• Insert the hose hook end into the hole and push through.
• Press the hose hook lower end into the clip on the back of the upper panel.

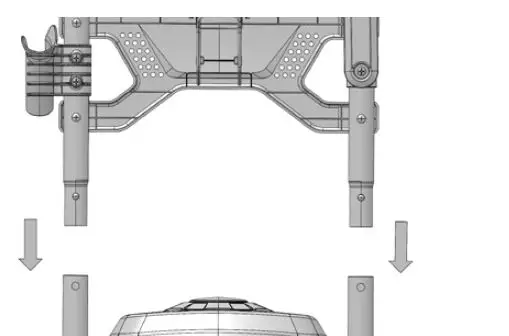

ASSEMBLING THE HANDLE

1. Push and hold the button on the handle as you slide the handle into the slots in the frame.

WARNING

This Quick Start Guide is not a substitute for reading the operator’s manual. To reduce the risk of injury or death, user must read and understand operator’s manual before using this product.

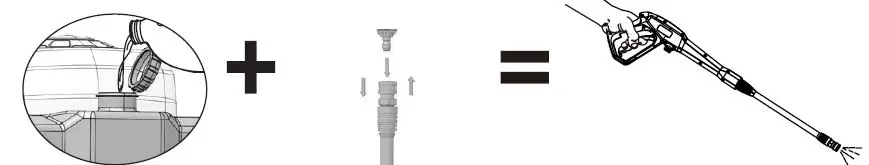

USING DETERGENT

1. Put pressure washer detergent in detergent tank.
2. Install blue or black soap nozzle.
3. Squeeze trigger and wait approx.1 minute for soap.

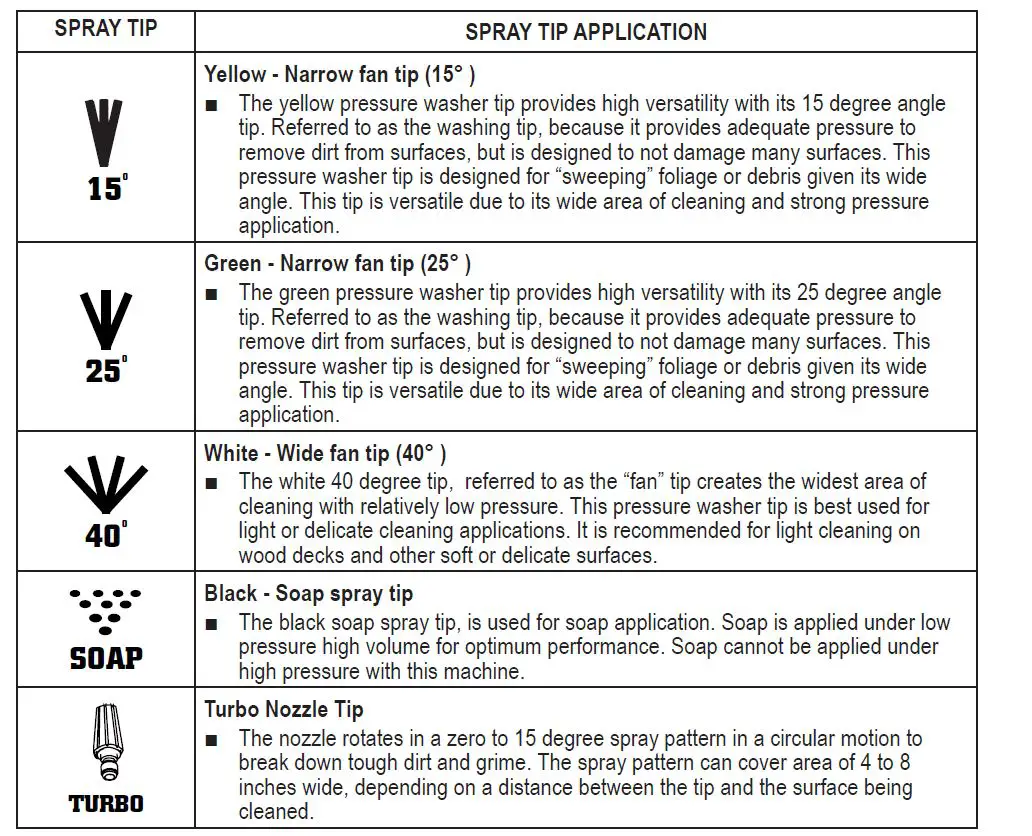

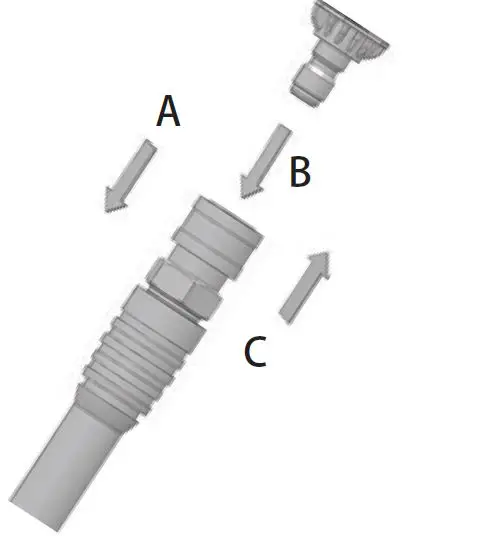

CONNECTING DESIRED SPRAY TIP

1. Pull back the quick-connect collar
2. Push the spray tip into place
3. Push the collar forward

Set-up

1. Connect garden hose to pressure washer water intake.

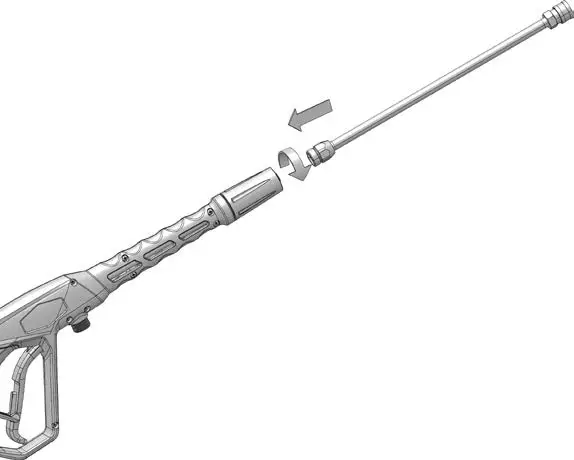

2. Assemble pressure washer gun to spray wand.
3. Insert high pressure hose into trigger handle.

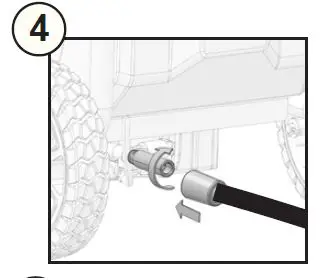

4. Insert high pressure hose into the pressure washer.

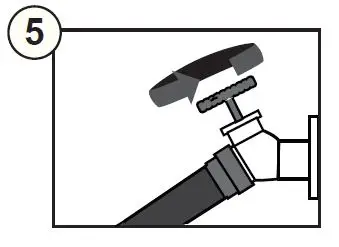

5. Turn on water at outlet.

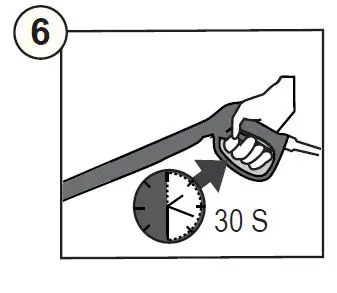

6. Run water hose for 30 seconds with the motor in OFF position. This helps drain air from the tank and lines.
7. Connect power cord to wall outlet Extension cord not recommended.

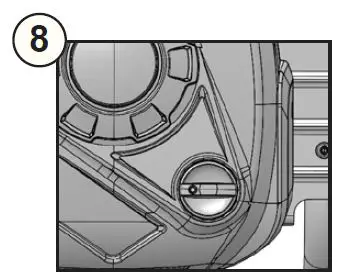

8. Turn on Pressure Washer IMPORTANT: Ensure water outlet is On before turning power On to avoid damage to the pump.

NOTE

• AUTO ON/OFF SWITCH: This Pressure washer is equipped with an Auto Start/Stop feature.
• To operate: Set the power switch to the On (I) position. Pump will pressurize and shut down immediately.
• Once the trigger of the gun is depressed the unit will turn on. Unit will shut off and be in standby mode when trigger is released.
