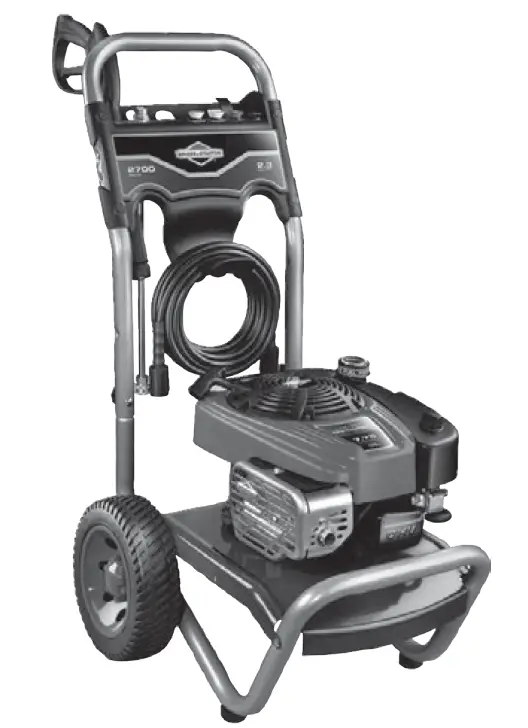

BRIGGS STRATTON 020462 Elite Series 2700 PSI Gas Pressure Washer

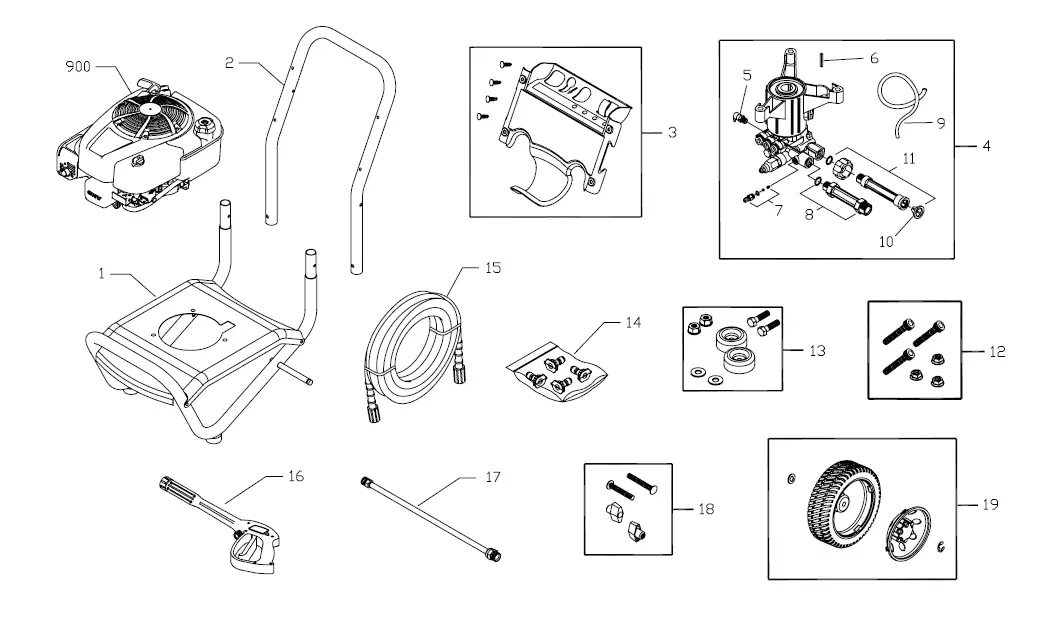

Exploded View and Parts List
| Item | Part # | Description | Item | Part # | Description |
| 1 | 209570GS | BASE | 16 | 204627GS | GUN |
| 205413GS | AXLE | 17 | 200595GS | EXTENSION-QC | |
| 2 | J199110GS | HANDLE | 18 | B2203GS | KIT-HARDWARE HANDLE |
| 3
4 | 310912GS B1797GS 311553GS | BILLBOARD CLIPS PUMP | 19 | 209568GS 192050GS 200520GS | KIT-WHEEL E-RING HUBCAP |
| 5 | 208673GS | VALVE-THERMAL RELIEF | 900 | § | ENGINE |
| 6 | 23139GS | KEY | |||
| 7 | 192914GS | KIT-CHEMICAL INJ | Items | Not Illustrated | |
| 8 | 201497GS | FITTING | 310909GS | MANUAL-OPERATOR’S | |
| 9 | 310975GS | HOSE-CHEMICAL | 194256GS | TAG-WARNING | |
| 10 | B2384GS | FILTER-GARDEN HOSE | 310968GS | DECAL-SHROUD | |
| 11 | 201496GS | KIT-WATER INLET | BB3061BGS | OIL | |
| 12 | 203526GS | KIT-HARDWARE PUMP MOUNTING | |||
| 13 | 192310GS | MOUNT-VIBRATION Optional Accessories | |||
| 14 | 208041GS | KIT-QC NOZZLES | 6048 | O-RING MAINTENANCE | |
| 198841GS 195983AKGS | NOZZLE-QC BLACK NOZZLE-QC YELLOW | 6039 | PUMP SAVER | ||
Copyright © 2009 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form without the express written permission of Briggs & Stratton Power Products Group, LLC. BRIGGSandSTRATTON.COM
Questions? Help is just a moment away!
Call: Pressure Washer Helpline 1-800-743-4115 M-F 8-5
CT Briggs & Stratton Power Products group, LLC Jefferson, Wisconsin, U.S.A.
Model No. 020418-0 2700 PSI Pressure Washer IPL No. 311744 Revision – (11/17/2009) This pressure washer is rated in accordance to the Pressure Washer Manufacture Association (PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).
