RY803325 QUICK REFERENCE GUIDE
WARNING:
This Quick Reference Guide is not a substitute for reading the operator’s manual. To reduce the risk of injury or death, users must read and understand the operator’s manual before using this product. All page references refer to the operator’s manual.
FIRST TIME ASSEMBLY

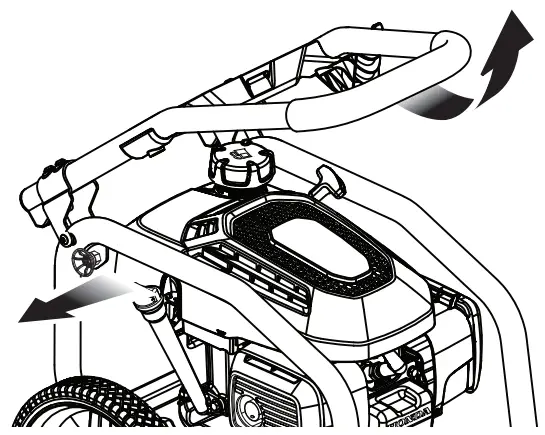

- Raise the handle (see page 7).

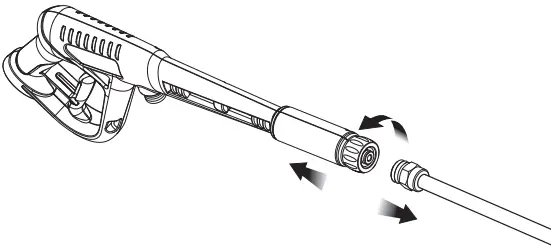

- Connect the spray wand to the trigger handle (see page 7).

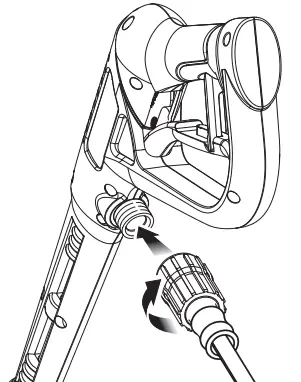

- Connect the high-pressure hose to the trigger handle (see page 7).

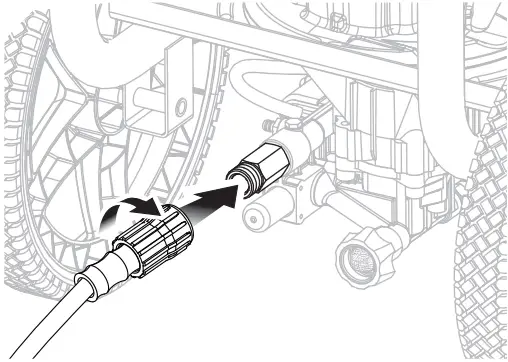

- Connect the high-pressure hose to the pump (see page 7).
Completely uncoil and straighten high-pressure hose to prevent kinks. - Connect your garden hose to the pressure washer (see page 8).
Completely uncoil garden hose or remove completely from reel to prevent kinks.
Turn the water faucet on fully.
Make sure there are no leaks.

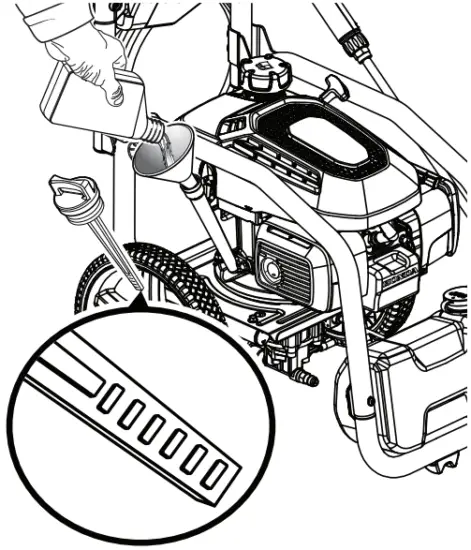

With no nozzle installed, squeeze the trigger to relieve air pressure. Hold the trigger until a steady stream of water appears. - Pour all but 2 oz. of the provided lubricant into the engine through the oil fill hole. Check and add additional lubricant as needed until the level reaches the upper portion of the hatched area on the dipstick. Do not overfill. (See page 9)
Turn the fuel valve to OFF before adding lubricant.
Set the unit on a flat surface so the engine is level.
Remove the dipstick, wipe clean, put it back in the hole (but don’t screw in), and check the lubricant level.
Completely uncoil and straighten high-pressure hose to prevent kinks.

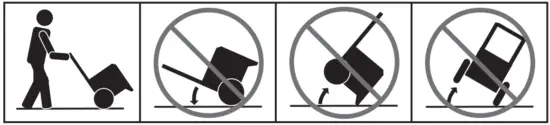

DO NOT OVER-TILT THE UNIT!
STARTING THE UNIT (COLD START)

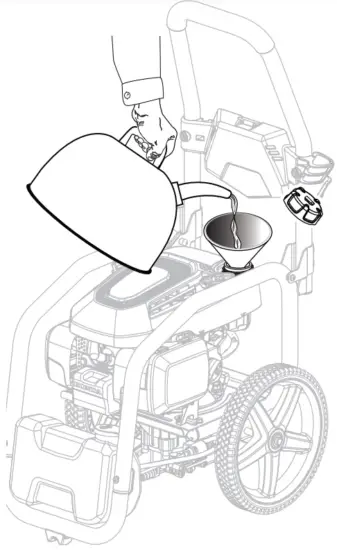

- Add fuel (see page 10).
NOTICE:
Do not use E15 or E85 fuel in this product. It is a violation of federal law and will damage the unit and void your warranty. Only use unleaded gasoline containing up to 10% ethanol.
This is a 4-cycle engine. Do not mix fuel and lubricant together.

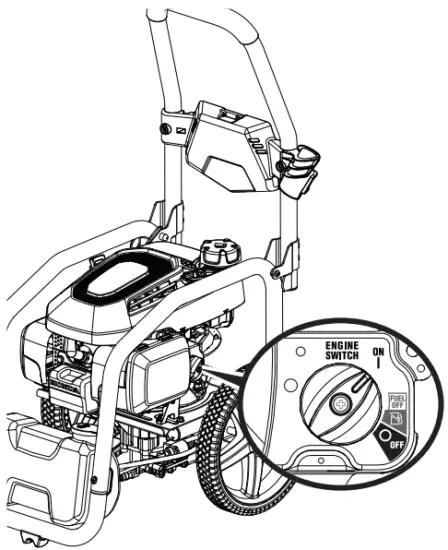

Mix fuel stabilizer with gasoline according to the manufacturer’s directions prior to filling the tank. - Turn the engine stop switch to the ON position (see page 10).

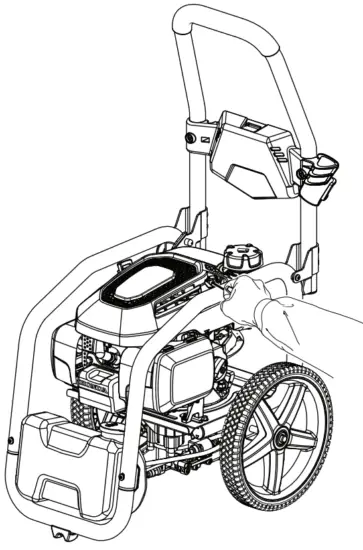

- Pull starter grip and rope to start (see page 10).
RESTARTING THE UNIT (HOT RESTART)
- Pull starter grip and rope to start (see page 10). If the engine does not start:
• check for enough fuel;
• try starting again.
There may be residual water in the pump and/or lubricant in the engine due to performance testing.
USING DETERGENT

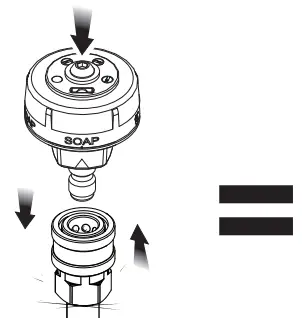

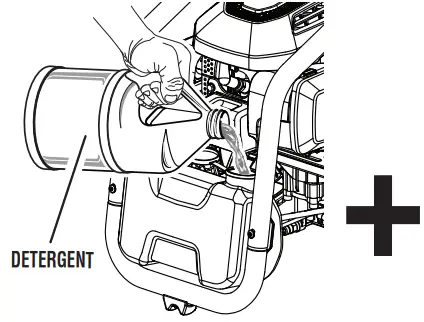

| 1. Pour pressure washer detergent into the soap tank (see page 12). | 2. Install nozzle and rotate selector to blue  or blue setting (see page 13). | 3. Squeeze the trigger and wait approx. 5 seconds for detergent (see page 13). |
 |  |  |
 | Use of soap nozzle will activate soap injector at a 20:1 dilution ratio. WARNING! Never use bleach or solvent-based detergent. • Will damage your pump • Will void your warranty • Will damage plants/shrubs |

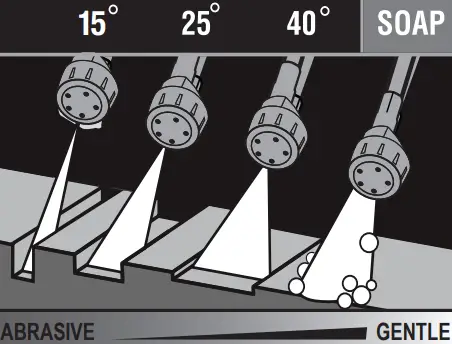

NOZZLE SELECTION GUIDE
Use the chart below to determine the correct nozzle for your job.
 | HIGH PRESSURE (NO SOAP WHEN USING THESE NOZZLES) | LOW PRESSURE (FOR SOAP OR GENTLE RINSE) | |||
15º | 25º | 40º | Long Range | Short Range | |
Concrete, Brick, Masonry  |  |  | | | |
Siding, Gutters, House  | | | | | |
Fencing, Deck, Patio  | | | | | |
Lawn Equipment, Boat, RV  | | | | | |
| Recommended Nozzle Use With Caution for Certain Applications | |||||
BEFORE STORING THE UNIT
Always add a Pump Protector to the unit after each use and before storing. This will significantly improve pump life. (See page 13)
Pump Protector is available from your local retailer. For further assistance, call customer service at 1-800-525-2579.
To add, follow the instructions provided by the Pump Protector manufacturer.
Make the most of your purchase! Go to www.ryobitools.com and register your new tool online. For questions about operating or maintaining your product, please call, 1-800-525-2579.
998000566
3-31-21 (REV:01)
