Quick Start Guide
WARNING: This Quick Reference Guide is NOT a substitute for reading the owners manual. To reduce the risk of injury or death, user must read and understand operator’s manual before using this product.
BEFORE STARTING
| TOOLS YOU WILL NEED |  | Pressure washer soap (not included) |  | Fresh clean unleaded gasoline (not included) |  | 10mm wrench (not included) |  | 4-stroke engine oil (included) |
 |  |  |

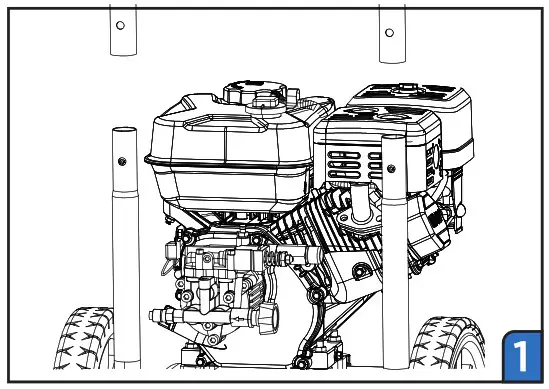

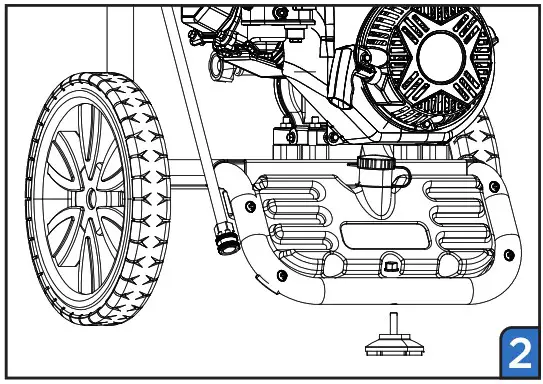

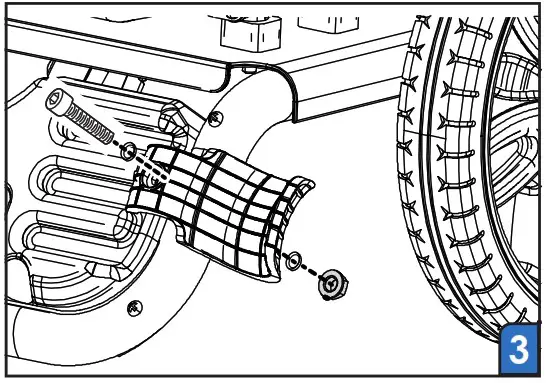

| Install handle to the frame. | Attach mounting foot with M8 nut. | Attach lower holder using provided bolt, washers, and nut. |
 |  |  |

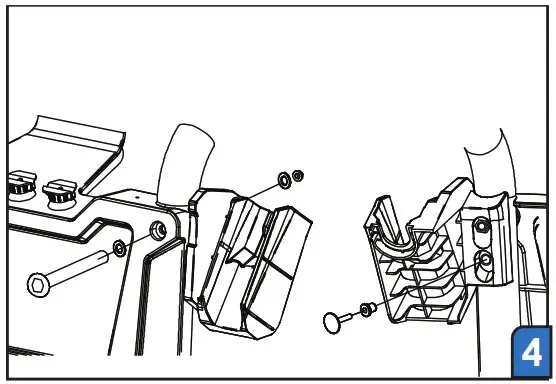

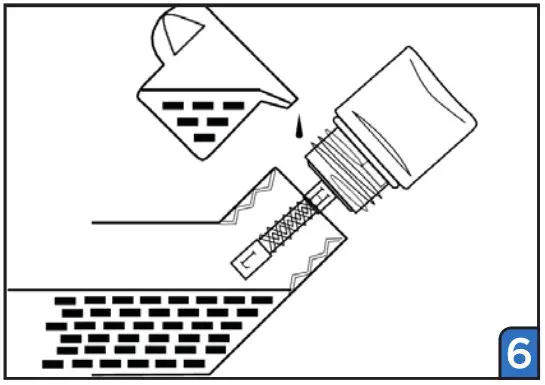

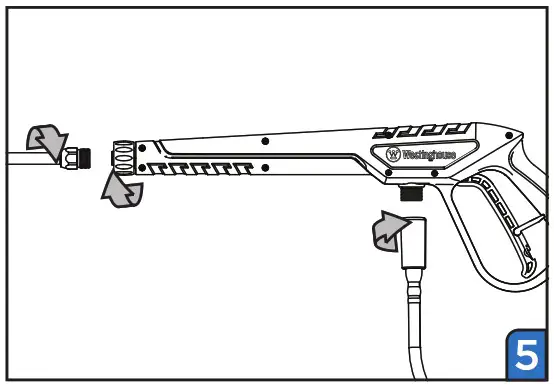

| Attach the upper holder using existing hardware and provided push rivet. | Install spray lance and high-pressure hose. Hand tightens only. | Add oil with provided 4-stroke engine oil. |
 |  |  |

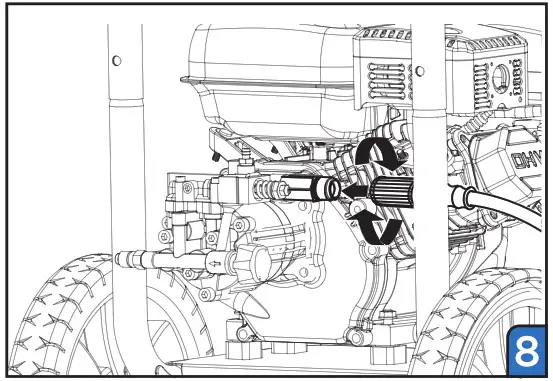

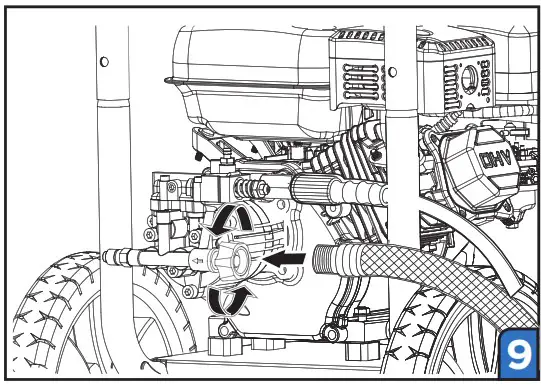

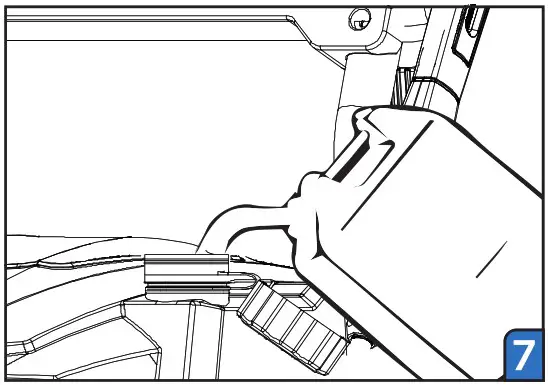

| Add gasoline. Gasoline level should NOT be higher than filler neck. DO NOT use fuel with more than 10% Ethanol. | Connect the high-pressure hose to the high pressure outlet on the pump. | Run water for 30 seconds to ensure garden hose is free of debris. Turn off water. Connect garden hose to water inlet. Never use a hose longer than 50ft. Make sure inlet screen is installed properly and free of debris. Always turn water on before starting the pressure washer. |
 |  |  |

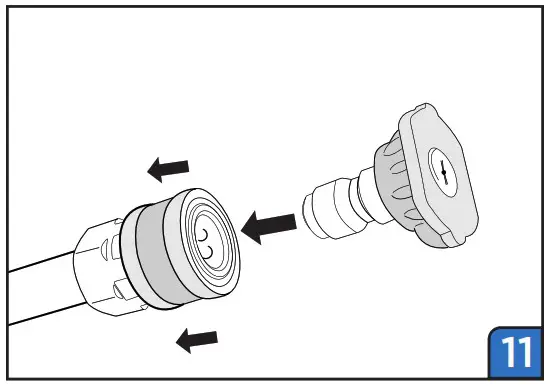

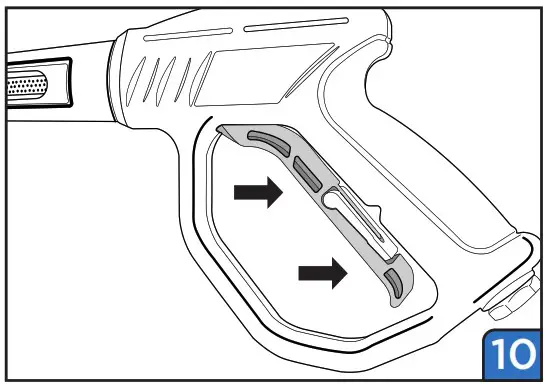

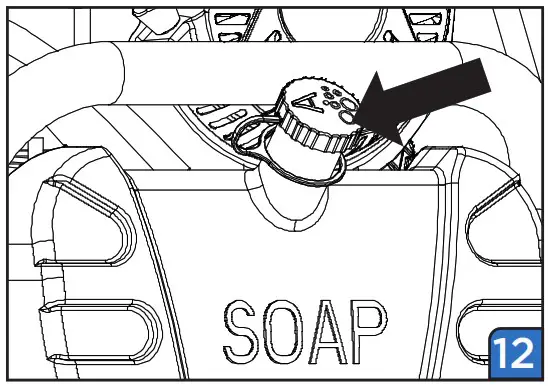

| Squeeze trigger to allow air to bleed out. | Insert high-pressure nozzle tip appropriate for your application. | Add detergent to soap tank. Only use detergent designed for pressure washer use. |
HOW TO START
 |  |  |

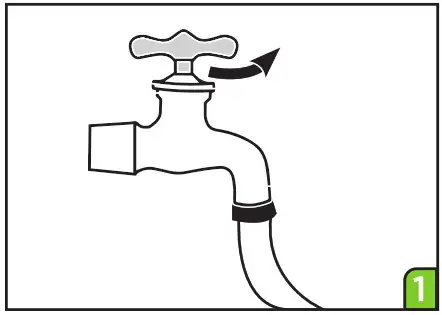

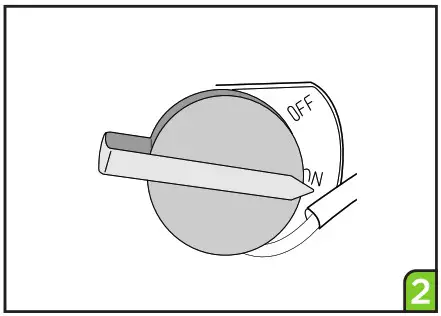

| Connect garden hose to water supply and turn on water. Water supply must have a minimum flow of 3.5 gallons per minute. | Turn power switch ON. | Set choke lever to CHOKE position. |
 |  |  |

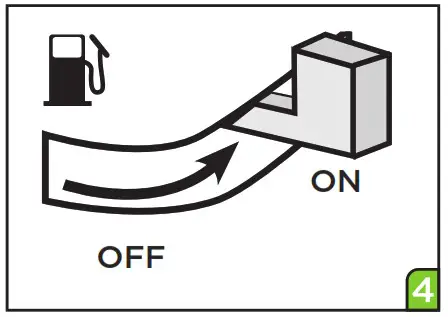

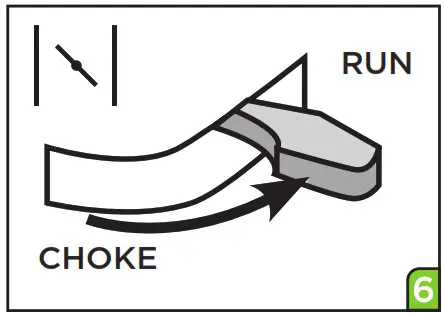

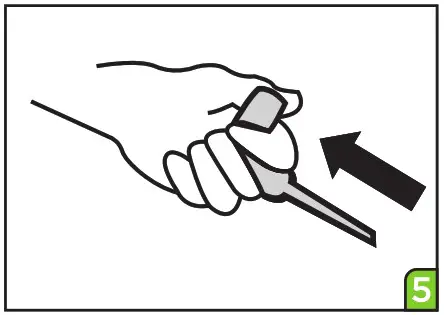

| Turn fuel valve ON. | Pull the recoil handle until the engine starts. If it takes more than one pull make sure to depress the trigger on the gun between pulls to reduce pressure buildup. | As the engine starts and stabilizes, gradually move the choke lever back to the RUN position. |
HOW TO STOP
 |  |  |

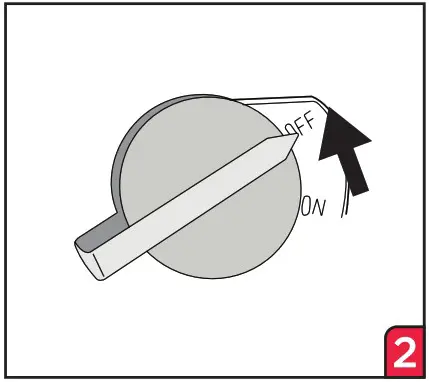

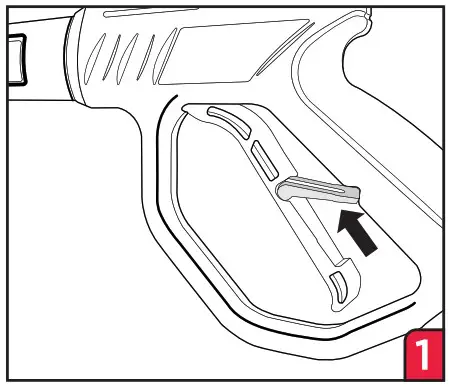

| Lock Spray gun trigger. | Turn power switch OFF. | Turn fuel valve OFF. |
 |  |  |

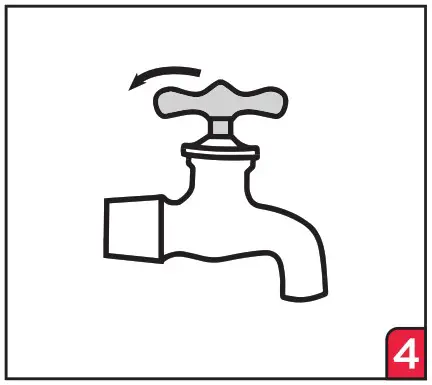

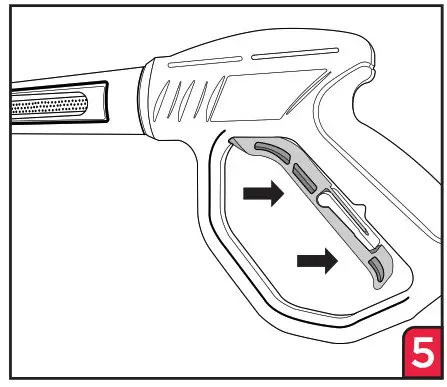

| Turn water supply OFF. | Squeeze trigger to allow air to bleed out. | Complete After Each Use steps and consult owners manual for proper storage procedure. |
AFTER EACH USE
- Lock the spray gun trigger.
- Turn the engine OFF, turn the fuel valve OFF, then turn the water supply OFF.
- Disengage the trigger lock and depress the trigger for 15 seconds to depressurize the system.
- Let the pressure washer cool down.
- Disconnect the hoses and drain.
- Engage the trigger lock on the spray gun.
- Wipe off all remaining water with a clean, dry rag.
- Disconnect the spark plug wire then pull the recoil handle 5 – 6 times to remove water from inside the pump.
- Store the pressure washer in a clean, dry place.
SELECTING NOZZLES
| NOZZLES | USE | |
 | High Pressure Nozzle (RED) – higher pressure & smallest spray pattern. NOTE: The red nozzle can damage surfaces if it is held too close for an extended time. | Use to clean hard, embedded dirt & grime. Use on concrete, brick, driveways, & patios. |
 | High to Medium Pressure Nozzle (YELLOW) – High to medium pressure with smallest angle spray pattern. | Use to clean paint, stain, mildew, oil, & stuck on dirt & grime. Use on wood, decks, home siding, driveways, & patios. |
 | Medium Pressure Nozzle (GREEN) – medium pressure & medium spray pattern. | For general rinsing ideal for most all purpose cleaning such as home iding, brick patios, wood decks, driveways and sidewalks, garage floors, etc. |
 | Low Pressure Nozzle (WHITE) – lower pressure & widest spray pattern. | For delicate rinse & gentle cleaning of cars/trucks, boats, RV’s patio furniture, lawn equipment, etc. |
 | Soap Nozzle (BLACK) NOTE: Only use pressure washer safe soap. | Use to apply soap to cleaning surfaces in order to provide a thorough cleaning. |
SPECIFICATIONS
| Specifications | WPX2700 | WPX3200 | WPX3400 |
| Pressure – PSI/BAR | 2700/186 | 3200/220 | 3400/234 |
| Flow Rate – (GPM/LPM) | 2.3/ 8.71 | 2.5/ 9.46 | 2.6/9.84 |
| Water Temperature (ºF/ºC) | 104/40 Max | ||
| Hose Length (ft) | 25 | ||
| Soap Tank Capacity (Gal/L) | 0.42/1.6 | ||
| Nozzles | 0º, 25º, 40º, soap | 0º, 15º, 25º, 40º, Soap | |
| Engine Displacement | 212cc | ||
| Spark Plug Type | F7TC | ||
| Spark Plug Gap (in/mm) | 0.024 – 0.032 in. (0.60 – 0.80 mm) | ||
| Fuel Capacity (Gal/L) | 0.87/3.3 | ||
| Recommended Oil | 10W30 | ||
| Oil Capacity (oz/L) | 20/0.6 | ||
| On/Off Switch | Yes | ||
IMPORTANT
You must properly winterize unit before storing in cold temperatures.FAILURE TO PERFORM THESE STEPS WILL VOID WARRANTY.
- Follow all steps in After Each Use.
- Drain all gasoline from the fuel tank as best as possible.
- Disconnect the spark plug wire.
- Following the manufacturer’s instructions, add RV (non-toxic) antifreeze or similar pump-protection specifically made for pressure washers.
- Store the pressure washer in a clean, dry place.
MAINTENANCE SCHEDULE
Following the maintenance schedule is important to keep the pressure washer in good operating condition. The following is a summary of maintenance items by periodic maintenance intervals. Refer to the Maintenance section in the Owners Manual to find out how to properly perform maintenance.
OWNER PERFORMED MAINTENANCE SCHEDULE
| Maintenance Item | Before Every Use | After First 5 Hours or First Month of Use | After 50 Hour of Use or Every year | After 100 Hours of Use or Every Year | After 300 Hours of Use |
| Engine Oil | Check Level | Change | Change | – | – |
| Intake and Muffler | Inspect/Clean | – | – | – | – |
| Air Filter | – | – | – | – | Replace* |
| Spark Plug | – | – | – | Inspect/Clean | Replace* |
| Spark Arrestor | – | – | Inspect/Clean | Inspect/Clean | Inspect/Clean |
| Water Inlet Screen | Check | – | – | – | – |
| Valve Clearance | – | – | – | Inspect | Adjust |
*Service more frequently if operating in dry and dusty conditions

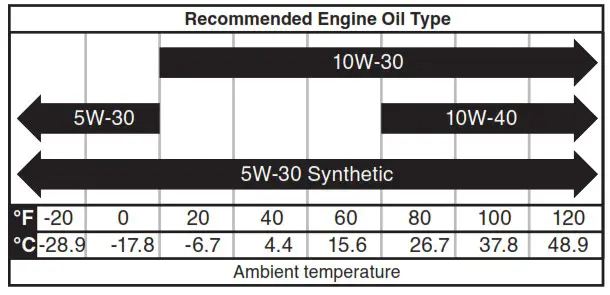

OIL MAINTENANCE
Only use 4-stroke/cycle engine oil. NEVER USE 2-STROKE/CYCLE OIL.
HAVE QUESTIONS?
DO NOT RETURN THIS PRODUCT TO THE STORE
Email us at [email protected]
or call 1-855-944-3571
125286 Rev02 12/21 WPX2700/WPX3200/WPX3400Rev01
