QUICK START CUIDE
REFLECTFLOWPRO

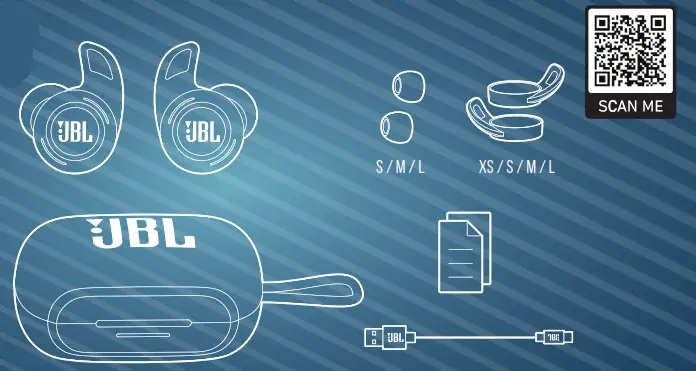

WHAT’S IN THE BOX

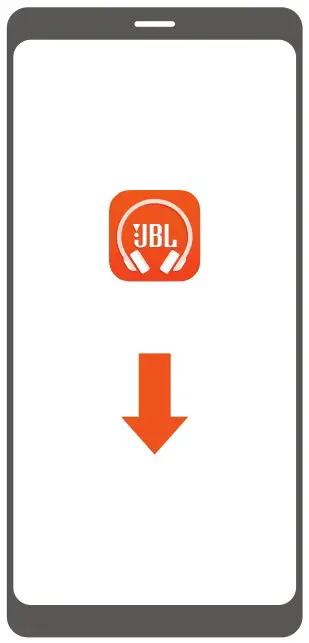

APP
JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

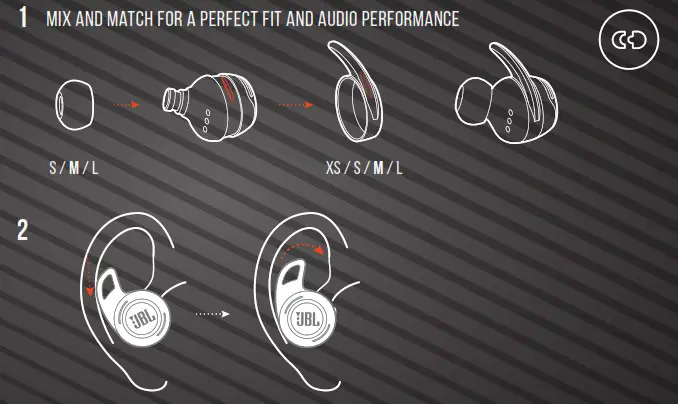

HOW TO WEAR

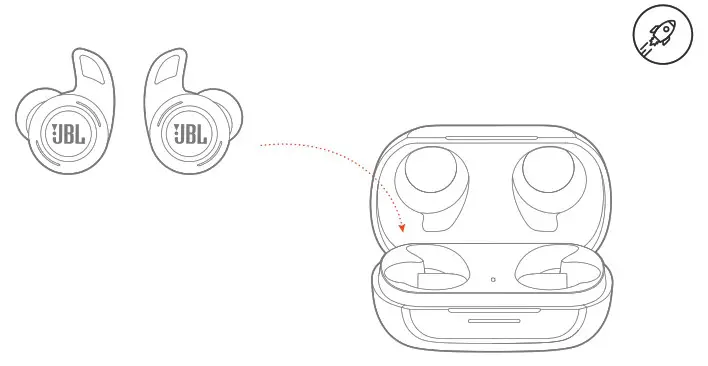

FIRST TIME USE

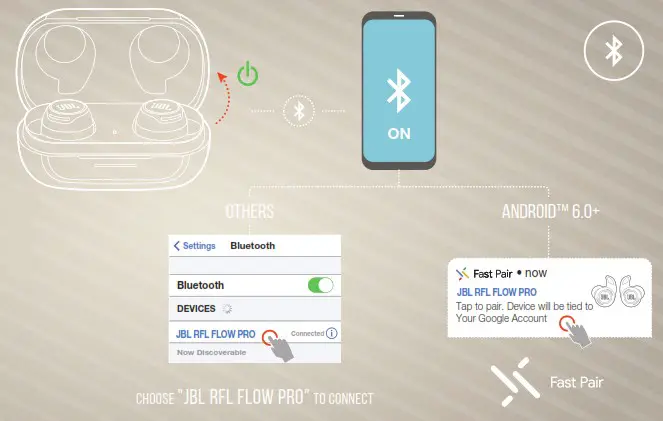

POWER ON & CONNECT

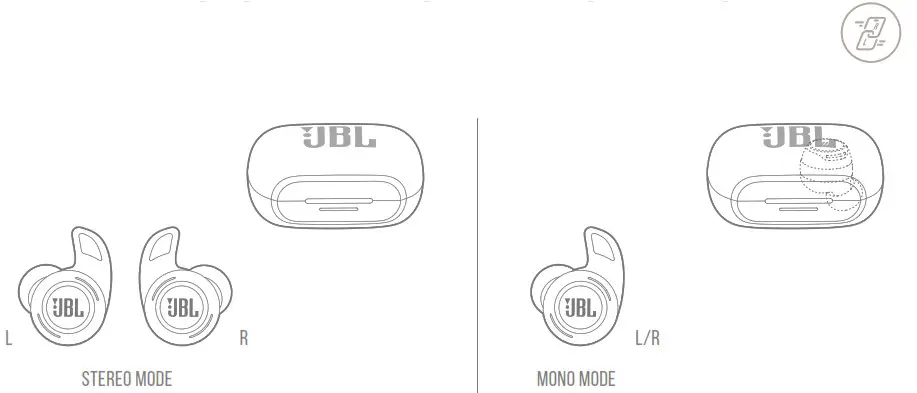

DUAL CONNECT + SYNC

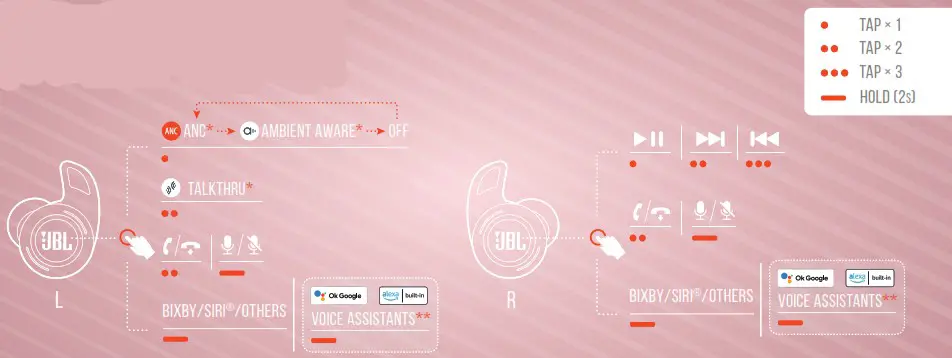

CONTROLS
AUTO PLAY/PAUSE

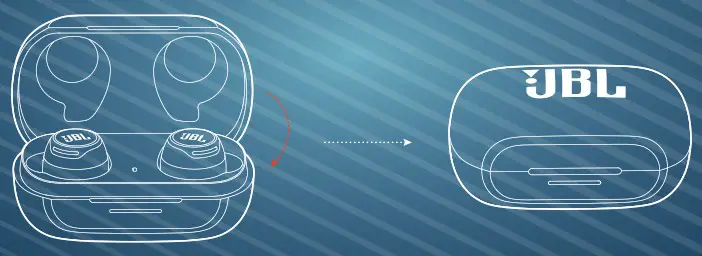

POWER OFF

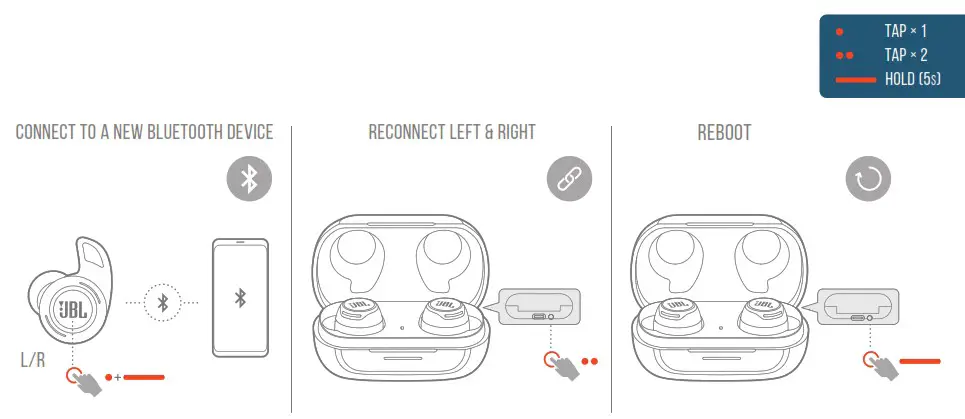

MANUAL SETUP

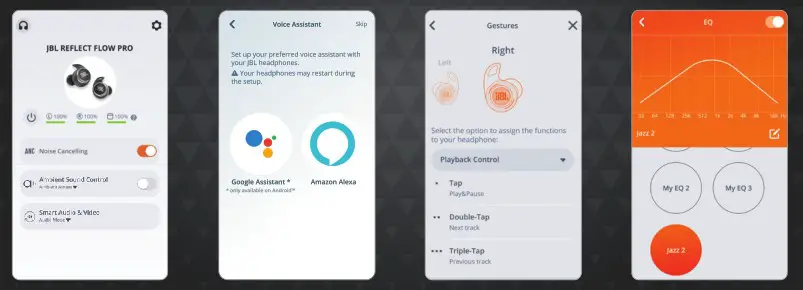

DO MORE WITH THE APP
HANDS-FREE VOICE CONTROL
Get more done on the go. Say “Ok Google” to get started.
“Play my workout playlist”
“Turn up the volume”
“Send a message”
“What’s my schedule today?”
“Set an alarm for 7 AM”
Note: Only available on Android™
HANDS-FREE VOICE CONTROL
Ask Alexa to play music, answer questions, play the news, check the weather, set alarms, control compatible smart home devices, and more.
“Alexa, play today’s hits”
“Alexa, volume up.”
“Alexa, skip this song.”
“Alexa, what’s the weather?”
“Alexa, turn off the TV.”
“Alexa, start my commute”
Note: Android TM 6.0 or higher is required for full access to Alexa features when using this device.

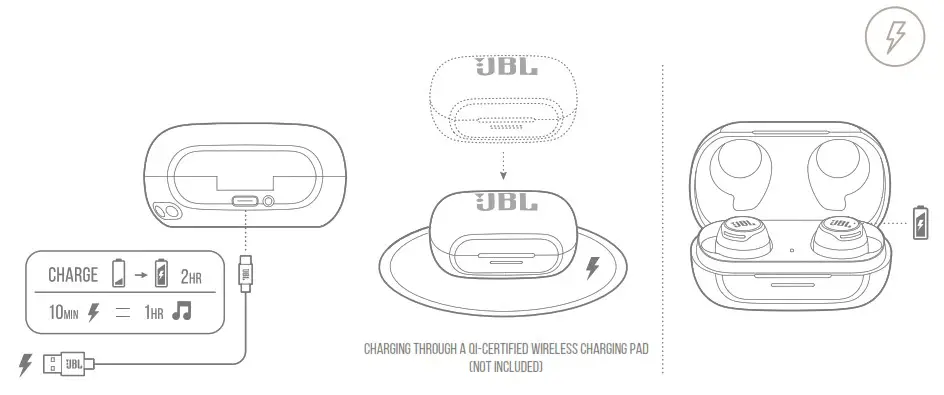

CHARGING

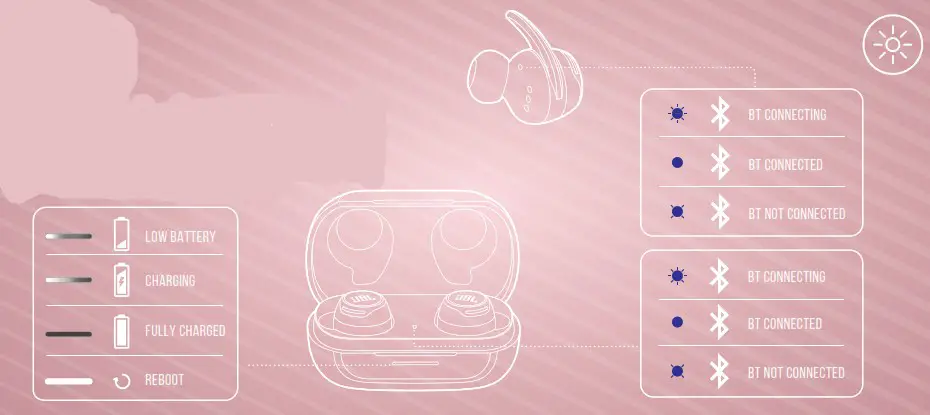

LED BEHAVIORS
TECH SPEC
| Model: | REFLECT FLOW PRO |
| Driver Size: | 6.8 mm/ 0.27” Dynamic Driver |
| Power supply: | 5 V 1 A |
| Earbud: | 7.2 g per pc (14.4 g combined)/ 0.016 lbs per pc (0.032 lbs combined) |
| Charging case: | 61.5 g/ 0.136 lbs |
| Earbud battery type: | Li-Polymer (85 mAh/ 3.7 V) |
| Charging case battery type: | Li-Polymer (540 mAh/ 3.85 V) |
| Charging time: | 2 hrs from empty |
| Music play time with BT on and ANC off: | up to 10 hrs |
| Music play time with BT on and ANC on: | up to 8 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: | 16 ohm |
| Sensitivity: | 100 dB SPL@1 kHz |
| Maximum SPL: | 94 dB |
| Microphone sensitivity: | -38 dBV/Pa@1 KHz |
| Bluetooth version: | 5.0 |
| Bluetooth profile version: | A2DP V1.3 AVRCP V1.6 HFP V1.7 |
| Bluetooth transmitter frequency range: | 2.4 GHz – 2.4835 GHz |
| Bluetooth transmitter power: | 10 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4 QPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-RFLOWPRO) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.125W/Kg.
The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories thajt maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters, and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF jexposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Google, Android, and Google Play are trademarks of Google LLC.
Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.
