JBL Reflect

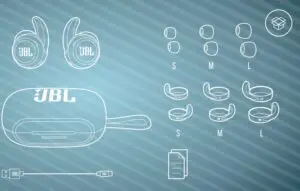

WHAT’S IN THE BOX

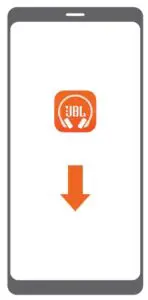

APP
My JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

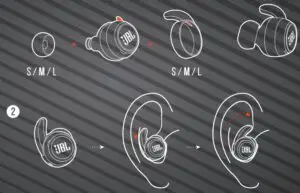

How To Wear
1. Mix and match for a perfect fit and audio performance

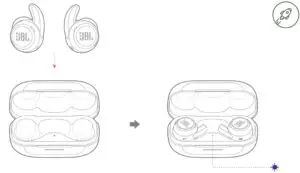

First time use

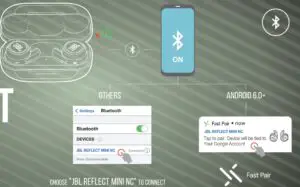

Power on & CONNECT

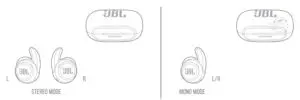

DUAL CONNECT + SYNC
POWER OFF
Manual Controls

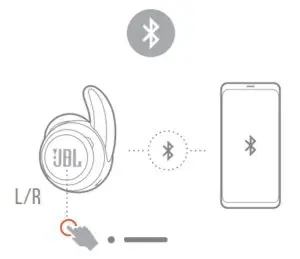

Connect to a Bluetooth device

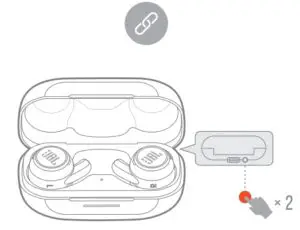

RECONNECTING LEFT & RIGHT

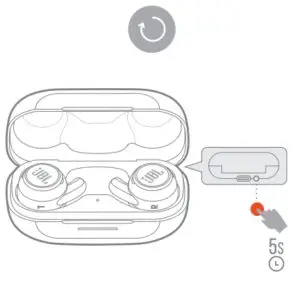

RESET

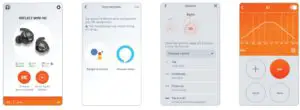

DO MORE WITH THE APP

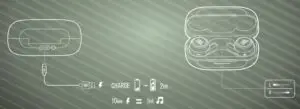

Charging

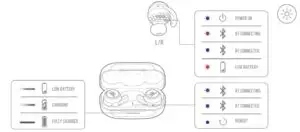

LED BEHAVIORS
TECH SPEC
Model: REFLECT MINI NC
Driver Size: 6 mm / 1/4” Dynamic Driver
Power supply: 5 V 1 A
Earpiece: 6.75 g / pc (13.5 g combined)
Charging case: 46 g
Headset battery type: Lithium-ion Battery (50 mA / 3.7 V)
Charging case battery type: Lithium-ion Battery (300 mA / 3.7 V)
Charging time: < 2 hrs from empty
Music playtime with BT on and ANC off: up to 7 hrs
Music playtime with BT on and ANC on: up to 6 hrs
Frequency Response: 20 Hz – 20 kHz
Impedance: 16 ohm
Sensitivity: 97 dB SPL @ 1kHz
Maximum SPL: 94 dB
Microphone sensitivity: -32 dBV / Pa @ 1 kHz
Bluetooth version: 5.1
Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7
Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
Bluetooth transmitter power: < 10 dbm
Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
