JBL Quantum 50 Manual

WHAT’S IN THE BOX

JBL quantum50 headset

Enhancers

Silicone Ear Tips

QSG | WARRANTY CARD | WARNING CARD

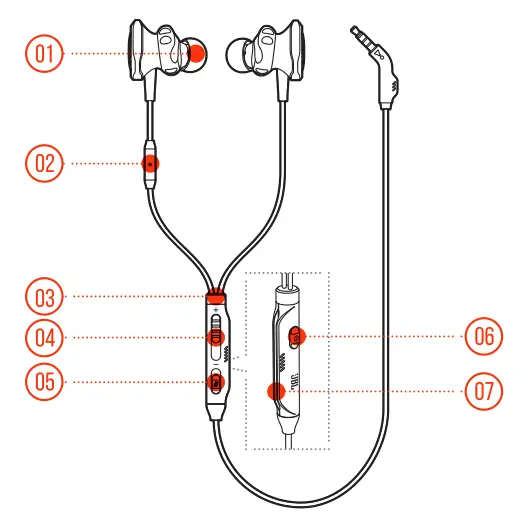

OVERVIEW

1. Ear tip
2. Microphone
3. CABLE LENGTH ADJUSTER
4. Volume Control
5. Microphone Mute / Unmute
6. * Multi-Function button
7. CABLE MANAGEMENT CHANNEL

* Controls available on Multi-Function button may vary for different mobile phones.

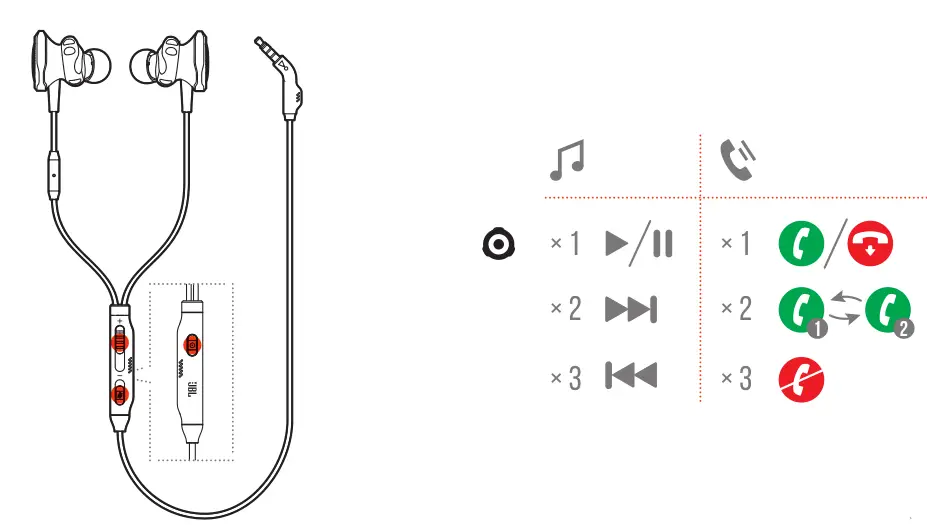

Button Command

INCREASE VOLUME

DECREASE VOLUME

Microphone unmute

Microphone Mute

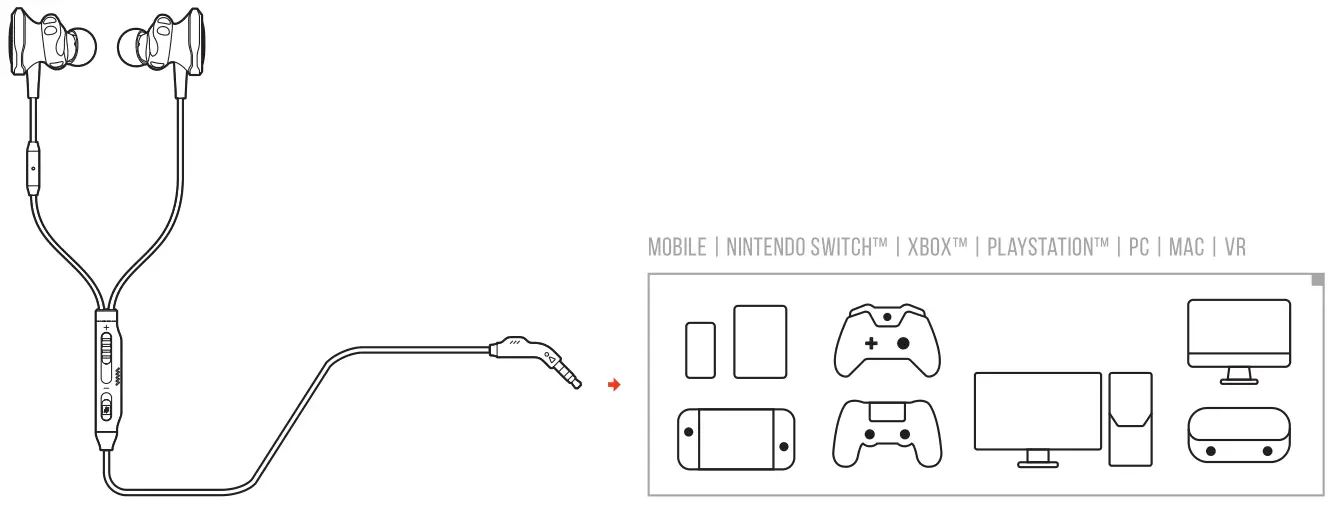

SETUP

Mobile | Nintendo Switch™ | Xbox™ | Playstation™ | PC | Mac | VR

HOW TO WEAR

Mix and match for a perfect fit and audio performance

To adjust cable length

To use mono mode

TECH SPEC

• Model: QUANTUM50
• Driver size: 8.6 mm / 0.3” Dynamic Drivers
• Weight: 21.5 g / 0.05 lbs
• Frequency response: 20 Hz – 20 kHz
• Microphone frequency response: 100 Hz – 10 kHz
• Max input power: 5 mW
• Impedance: 16 ohm
• Sensitivity: 97 dB SPL @ 1 kHz / 1 mW
• Microphone sensitivity: -41 dBV @ 1 kHz / Pa
